Gravel Carbon Fiber Wheelset

Introduction

We offers a full line of custom bike rims for gravel bike wheels, providing tailor-made solutions to meet your specifications. We have years of experience in wheel-building, and we cater to the needs of each customer. In our inventory, we offer different sizes carbon fiber gravel bike rims.

At NEXTIE, we build each wheel with precision and care, you can be confident that you are getting a high quality custom bicycle wheelset when you buy from us.

If you are interested in customzing your bike with new and stylish rims, the experts at NEXTIE are ready to make your bike look great and improve your preformance on the trails. We have been serving the cycling community since 2013, and all our custom bike rims are made here in China.

Wheelset Weight Reference

1356g: NXT36AGX rims + DT240 24H Disc Hubs + Sapim CX-Ray Spokes + Alloy Nipples.

1418g: NXT45AGX rims + DT240 24H Disc Hubs + Sapim CX-Ray Spokes + Alloy Nipples.

1300g: NXT30CGX rims + DT240 24H Disc Hubs + Sapim CX-Ray Spokes + Alloy Nipples.

1316g: NXT35CGX rims + DT240 24H Disc Hubs + Sapim CX-Ray Spokes + Alloy Nipples.

1358g: NXT45CGX rims + DT240 24H Disc Hubs + Sapim CX-Ray Spokes + Alloy Nipples.

1394g: NXT50CGX rims + DT240 24H Disc Hubs + Sapim CX-Ray Spokes + Alloy Nipples.

1466g: NXT60CGX rims + DT240 24H Disc Hubs + Sapim CX-Ray Spokes + Alloy Nipples.

Carbon Gravel Bike Rims

We developed many sizes of gravel rims, the widest AGX serieswith internal width 29mm, the CGX series with internal width 25mm and the GX series with traditional width 22mm.These rims are premium edition. The deflection is controlled quite well, within 0.2mm. The profile drawings are as below.

Hubs

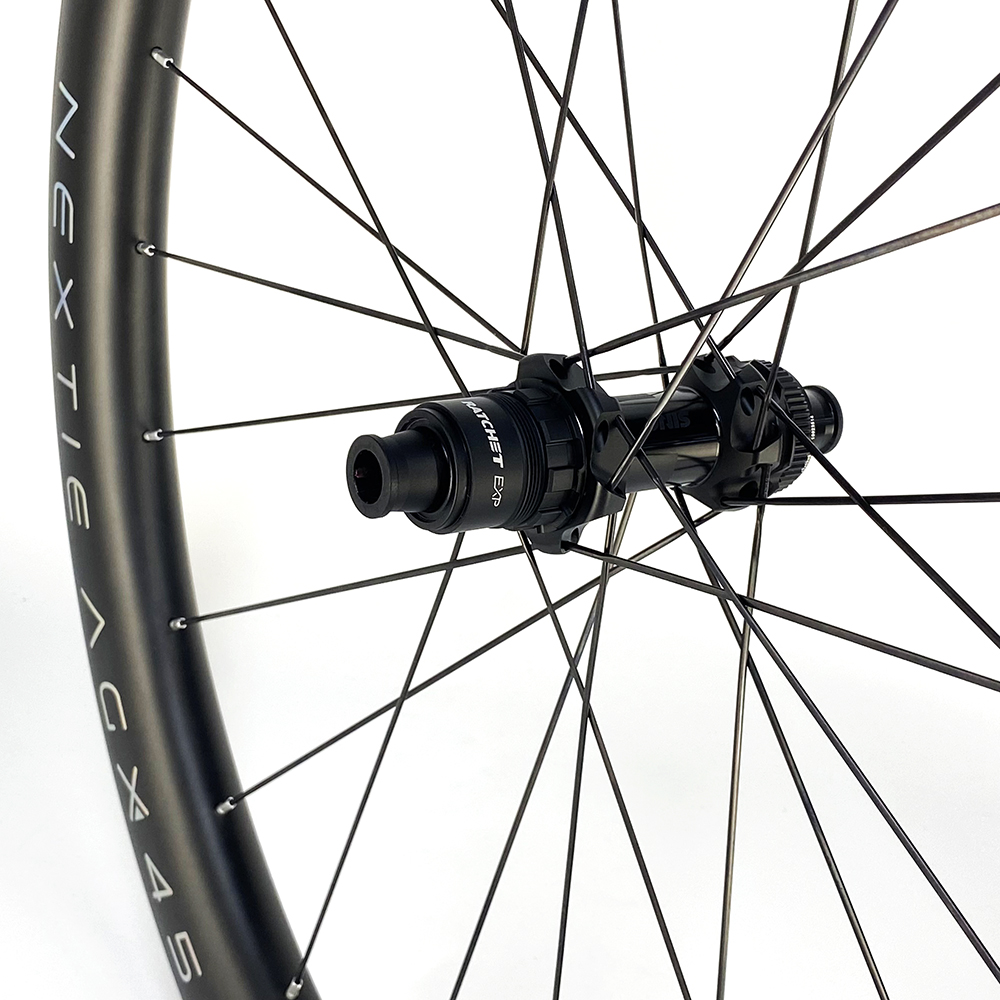

DT Swiss 350SL / 240 EXP / 180 EXP and our own brand hubs Rollingstar II.

Spokes

Spokes Sapim CX-Ray (64 pcs x 260 mm lg) 272g

Spokes Sapim D-Light 2.0/1.65 (64 pcs x 260 mm lg) 307g

Spokes DT Competition 2.0/1.8 (64pcs x 264mm lg) 382g

Spokes DT Competition Race 2.0/1.6 (64pcs x 264mm lg) 312g

Spokes Pillar X-Tra 1420 (64pcs x 260mm lg) 275g;

Carbon Fiber Spokes Aero 2.6g/pcs (270mm).

Nipples

Sapim Polyas (Secure Lock, 14mm) Alloy / Brass in color black, red, orange, gold, blue, green, purple, pink, silver and more;

Tubeless Ready Wheels

Advantage 1 - Lighter: Since no tubeless tape wrapping on the Tubeless Ready wheels, the weight of Tubeless Ready wheel goes lighter than the weight of common wheel with tape wrapped;

Advantage 2 - Stronger: No holes drilling on rim bed (except valve holes) and the carbon fibers not being damaged, the rim bed would be kept integral and the strength increases;

Advantage 3 - Safe: Tubeless Ready wheels no risk of air leaking from the rim bed, the cycling stays safe and the journey could be longer than riding bike with common wheels.

Disadvantage: Needs professional maintaince in case of spoke breaking

Note: Tubeless Ready wheels could also be mounted with tubes.

What's in the Box

Carbon Wheelset (Front + Rear)

2 x Extra Spokes

2 x Tubeless Valve Stems

1 x Tubeless Tape
