[Snow Dragon] 26" Fat Rim 80mm

  • Unit Price: 275 USD


26-80mm | 25mm Depth | 650g | Hookless | Tubeless | Tire 3.8"+ | [Snow Dragon] | NEXTIE BIKE

Basic

  • Name: Snow Dragon 26"
  • Code: NXT26SD80
  • Rim Type: Clincher / Hookless
  • Materials: Toray T700 Carbon Fiber
  • Warranty: 2 Years

Specification

  • Size: 26"
  • BSD (Bead Seated Diameter): 559mm
  • ERD (Effective Rim Diameter): 528mm

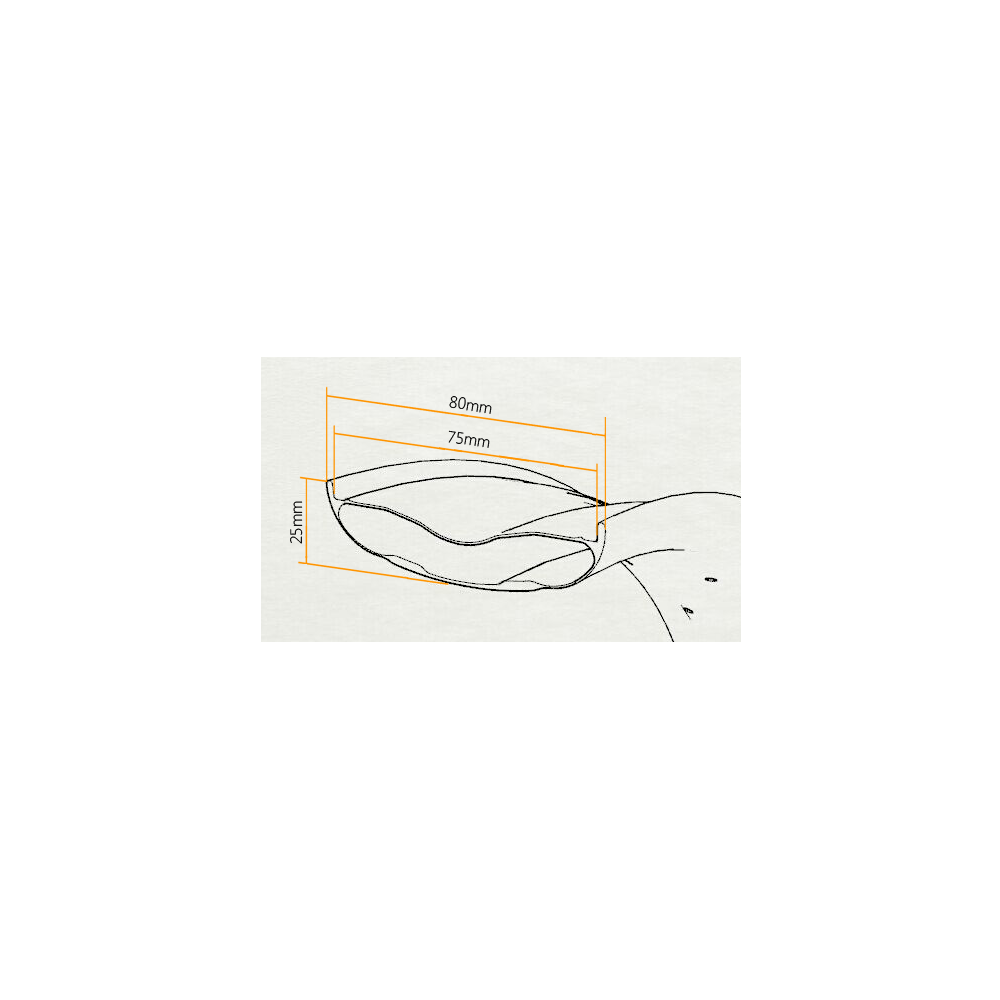

  • External Width: 80mm
  • Rim Height: 25mm
  • Spoke Bed Offset: +/-15mm
  • Weight: 650g
  • Valve Hole Diameter: 6.5mm (Presta)
  • Spoke Holes Diameter: 4.5mm
  • Assembly Hole Diameter: 7.5mm

Recommendation

  • Spoke Tension: 130kgf
  • Tire Size: 3.8"+
  • Spoke Nipple Length: 12mm / 14mm
  • Tire Pressure: 25psi
  • Load Limit (One Wheel): 180kg

Appearance

  • Weave: UD / 3K / 12K
  • Finish: Matte / Glossy

Design Features

  • first- Width: Better for bike frames or hubs which needs a longer offset to fit;
  • second- Deep section: Compatible for Left fork under spoke holes drilling Model B;
  • third- Deep channel: Further stability to lace wheels under spoke holes drilling Model A.

Application

  • application: Trail / Dirt / Enduro / Snow / Sand / Bogs / Desert / Mud
