[Premium] 27.5" Asymmetric Mountain Carbon Rim 45mm

  • Unit Price: 269 USD

  • Unit Price: 250 USD

  • Price in reward points: 25000
  • [Premium] 27.5" Asymmetric Mountain Carbon Rim 45mm


Introduction

The carbon fiber bicycle industry has been innovating and advancing all the time. Being lighter and stronger has always been the pursuit of the professional bicycle industry,

In the year of 2017, we first tried to use Toray T800 carbon fiber material and to improve the production process, reducing a weight of 60g for the XC mountain rim, which is a huge improvement. In the years of 2020 to 2022, we upgraded the rim of NXT27XMA45 by newest premium layer-up system and production technology, the weight decreases 20g than the previous generation when the strength kept same. The test results showed a higher level strength than the previous generation.

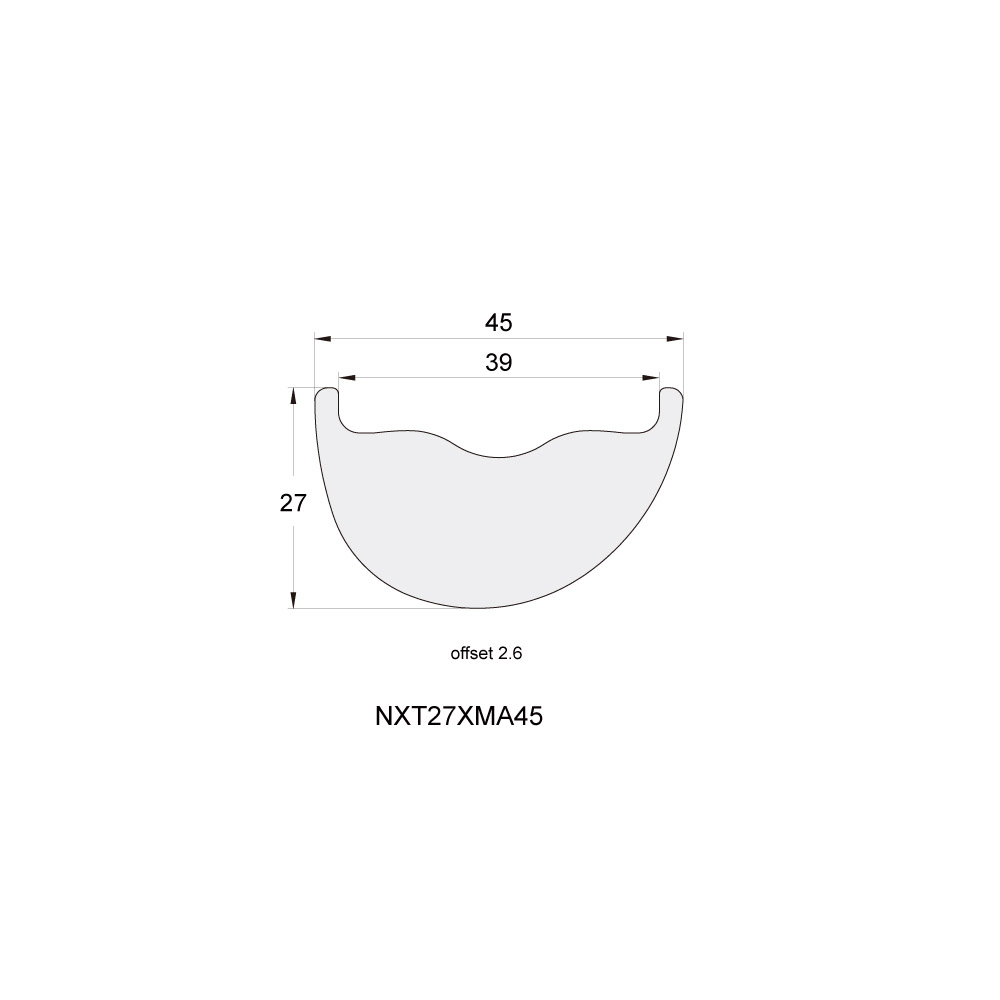

The weight of model NXT27XMA45 is only 435g for AM and 465g for Enduro. The profile drawing of this rim is as below.

Ultralight Carbon Fiber Mountain Bicycle Rim NXT27XMA45

This rim could be used for AM (All Mounatin), Trail and Enduro riding. The tire size for this model of rim is recommended at 2.4" ~ 3.5". The tire pressure is recommended at 30 ~ 60 psi.


What's in the Box

Carbon Rim(s)

Documentation


Learn more

What is the difference between weaves UD, 3K and 12K?

What is Free Coating Manufacturing (FCM) process?

What is the Difference between Ultralight, Premium and Standard Edition?

What is ERD (Effective Rim Diameter)?

How much spoke tension should I use?


Basic

  • Code: NXT27XMA45
  • Rim Type: Clincher (Hookless)
  • Materials: Toray T800 + T700 Carbon Fiber (Premium)
  • Tubeless Compatible: Yes
  • Drillings: 28, 32
  • Warranty: 3 Years

Specification

  • Size: 27.5" / 650B
  • BSD (Bead Seated Diameter): 584mm
  • ERD (Effective Rim Diameter): 549mm
  • External Width: 45mm
  • Internal Width: 39mm
  • Rim Height: 27mm
  • Weight: 435g (AM) / 465g (Enduro)
  • Valve Hole Diameter: 6.5mm (Presta)
  • Spoke Holes Diameter: 4.5mm
  • Spoke Holes Angle: ± 6°
  • Spoke Holes Offset: 2.6mm
  • Assembly Hole Diameter: 7.5mm

Recommendation

  • Spoke Tension: 80~130kgf
  • Tire Size: 2.4" ~ 3.5"
  • Tire Pressure: 25 ~ 50psi
  • Load Limit (One Wheel): 120kg

Appearance

  • Carbon Weave Availability: UD
  • Finish: Free Coating / Matte / Glossy

Application

  • application: Trail / AM / Enduro / Freeride
