Introduction

The carbon fiber bicycle industry has been innovating and advancing all the time. Being lighter and stronger has always been the pursuit of the professional bicycle industry, especially for the mountain rims for XC (Cross Country) riding , where riders have extreme weight requirement.

In the year of 2017, we first tried to use Toray T800 carbon fiber material and to improve the production process, reducing a weight of 60g for the XC mountain rim, which is a huge improvement. In the year of 2022, we upgraded the rim of NXT29XMA35 with new layer-up system, the weight decreases 20g than the previous generation when the strength kept same.

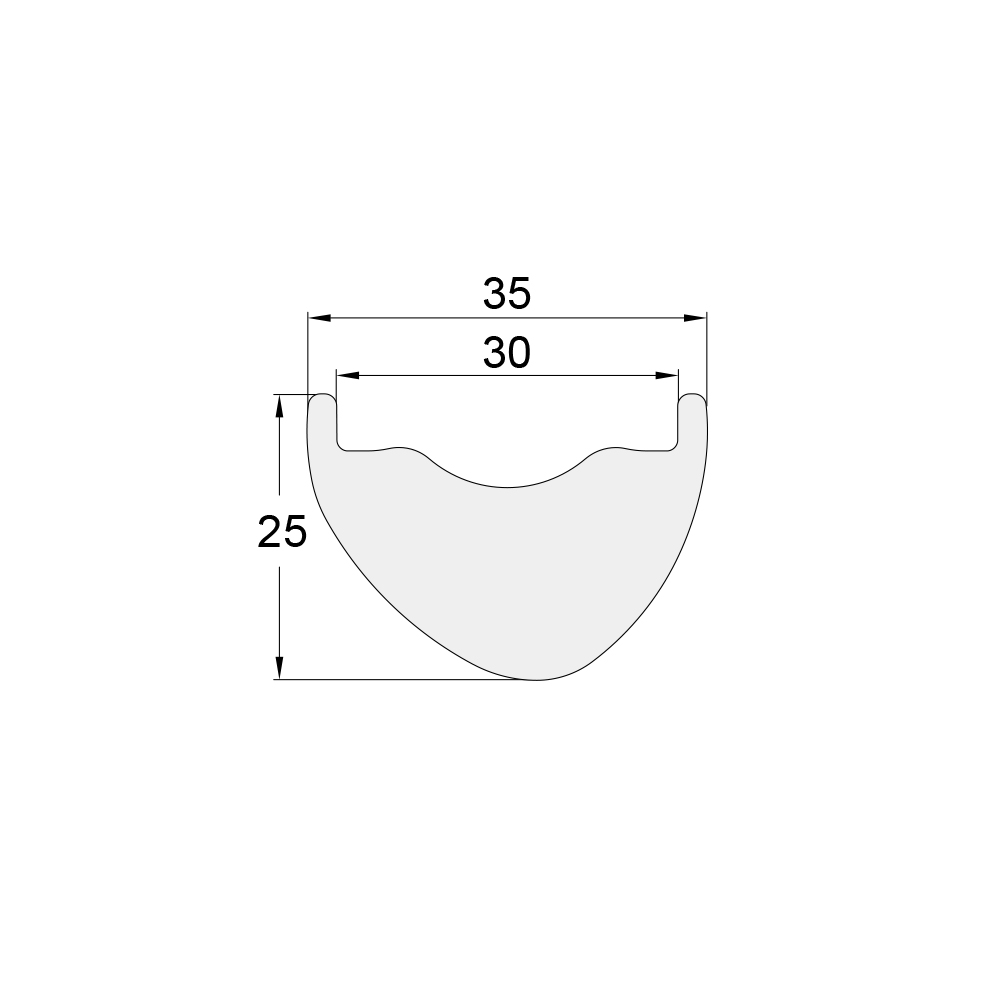

The weight of model NXT29XMA35 is only 325g for XC and 355g for AM. The profile drawing of this rim is as below.

Ultralight Carbon Fiber Mountain Bicycle Rim NXT29XMA35

This rim could be used for XC (Cross Country), Marathon, Trail riding and All Mountain. The tire size for this model of rim is recommended at 2.0" ~ 2.5". The tire pressure is recommended at 26 ~ 45 psi.


What's in the Box

Carbon Rim(s)

Documentation


Learn more

What is the difference between weaves UD, 3K and 12K?

What is Free Coating Manufacturing (FCM) process?

What is the Difference between Ultralight, Premium and Standard Edition?

What is ERD (Effective Rim Diameter)?

How much spoke tension should I use?


Basic

  • Code: NXT29XMA35
  • Rim Type: Mountain Bike (Clincher, Hookless)
  • Materials: Toray T800 + T700 Carbon Fiber (Premium)
  • Tubeless Compatible: Yes
  • Drillings: 28, 32
  • Warranty: 3 Years

Specification

  • Size: 29"
  • BSD (Bead Seated Diameter): 622mm
  • ERD (Effective Rim Diameter): 591mm
  • External Width: 35mm
  • Internal Width: 30mm
  • Rim Height: 25mm
  • Weight: 325g for XC / 355g for AM
  • Valve Hole Diameter: 6.5mm (Presta)
  • Spoke Holes Diameter: 4.5mm
  • Spoke Holes Angle: ± 6°
  • Spoke Holes Offset: 2.6mm
  • Assembly Hole Diameter: 7.5mm

Recommendation

  • Spoke Tension: 80~115kgf
  • Tire Size: 2.0"~2.5"
  • Tire Pressure: 26 ~ 45psi (XC) / 30 ~ 60psi (AM)
  • Load Limit (One Wheel): 100kg / 110kg

Appearance

  • Carbon Weave Availability: UD
  • Finish: Free Coating / Matte / Glossy

Application

  • application: XC / Marathon / AM
