[NXT406BMX25] Carbon Fiber 20" 406 30mm Width 25mm Depth BMX Clincher Rim
-
Unit Price: 160 USD$
![[NXT406BMX25] Carbon Fiber 20" 406 30mm Width 25mm Depth BMX Clincher Rim](https://www.nextie.com/image/cache/catalog/3-side/BMX/406BMX32/IMG_1105-1000x1000.jpg "[NXT406BMX25] Carbon Fiber 20\" 406 30mm Width 25mm Depth BMX Clincher Rim")
![[NXT406BMX25] Carbon Fiber 20" 406 30mm Width 25mm Depth BMX Clincher Rim](https://www.nextie.com/image/cache/catalog/3-side/BMX/406BMX32/IMG_1101-1000x1000.jpg "[NXT406BMX25] Carbon Fiber 20\" 406 30mm Width 25mm Depth BMX Clincher Rim")
![[NXT406BMX25] Carbon Fiber 20" 406 30mm Width 25mm Depth BMX Clincher Rim](https://www.nextie.com/image/cache/catalog/3-side/BMX/406BMX32/IMG_1104-1000x1000.jpg "[NXT406BMX25] Carbon Fiber 20\" 406 30mm Width 25mm Depth BMX Clincher Rim")
![[NXT406BMX25] Carbon Fiber 20" 406 30mm Width 25mm Depth BMX Clincher Rim](https://www.nextie.com/image/cache/catalog/New 2D/BMX/EKW108-25-30-1000x1000.jpg "[NXT406BMX25] Carbon Fiber 20\" 406 30mm Width 25mm Depth BMX Clincher Rim")

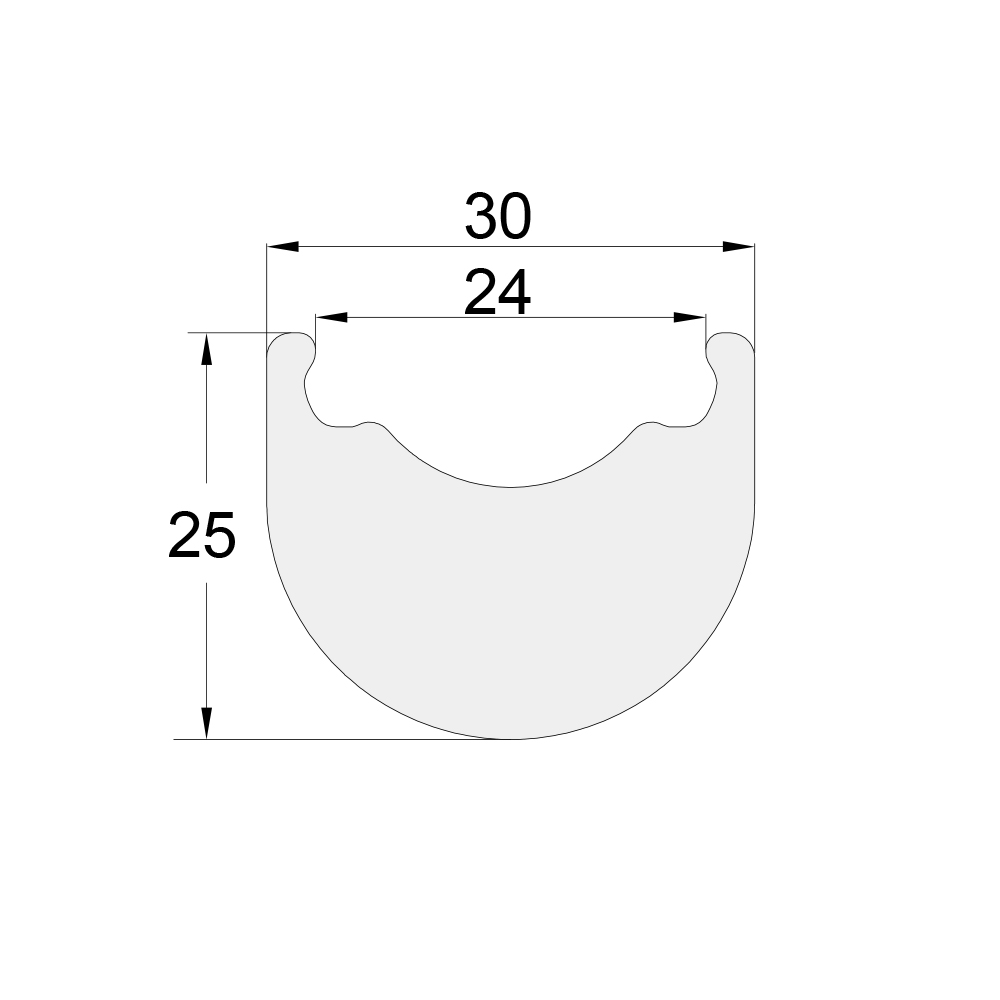

30mm Width | 25mm Depth | 20 inch 406 | 310g | ERD 379 mm | Tire 20''*1.35-1.95 | BMX 20 inch carbon
Basic
- Item #: NXT406BMX25
- Material: Toray T700 Carbon Fiber
- Rim Type: Clincher
- Warranty: 2 Years
Dimension
- Size: 20 inch / ISO 406
- ERD: 379mm
- Width: 30mm
- Spoke Hole Dia.: 4.5mm
- Depth: 25mm
- Valve Hole Dia.: 6.5mm
- Weight: 310g
- Assembly Hole Dia.: 7.5mm
- Hole count: 16, 18, 20, 24, 28, 32, 36
Recommendation
- Max Spoke Tension: 130kgf
- Weight Limit: 110kg
- Max Tire Pressure: 65psi
Appearance
- Weave: UD / 3K / 12K
- Finish: Matte / Glossy
