Basic

• Code: NXT406BMX30
• Rim Type: Clincher
• Materials: Toray T700 Carbon Fiber
• Tubeless Compatible: Yes
• Drillings: 16, 18, 20, 24, 28, 32, 36
• Warranty: 2 Years

Specification

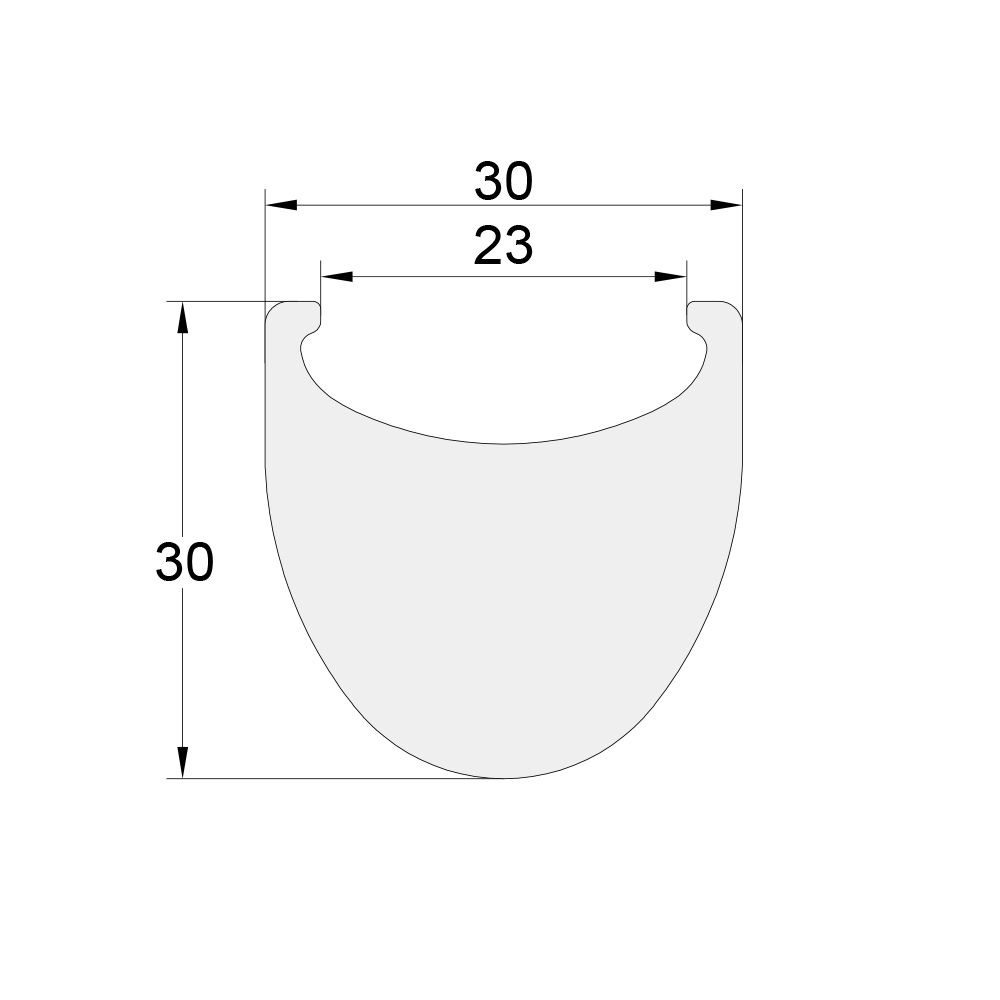

• Size: 20 inch / ISO 406
• ERD (Effective Rim Diameter): 369mm
• External Width: 30mm
• Rim Height: 30mm
• Weight: 320g
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 80~130kgf
• Tire Size: 30mm~60mm
• Tire Pressure: 60~100psi
• Load Limit (One Wheel): 100kg

Appearance

• Weave: UD / 3K / 12K
• Finish: Matte / Glossy
