Basic

• Code: NXT406BMX32
• Rim Type: Clincher
• Materials: Toray T700 Carbon Fiber
• Tubeless Compatible: Yes
• Drillings: 16, 18, 20, 24, 28, 32, 36
• Warranty: 2 Years

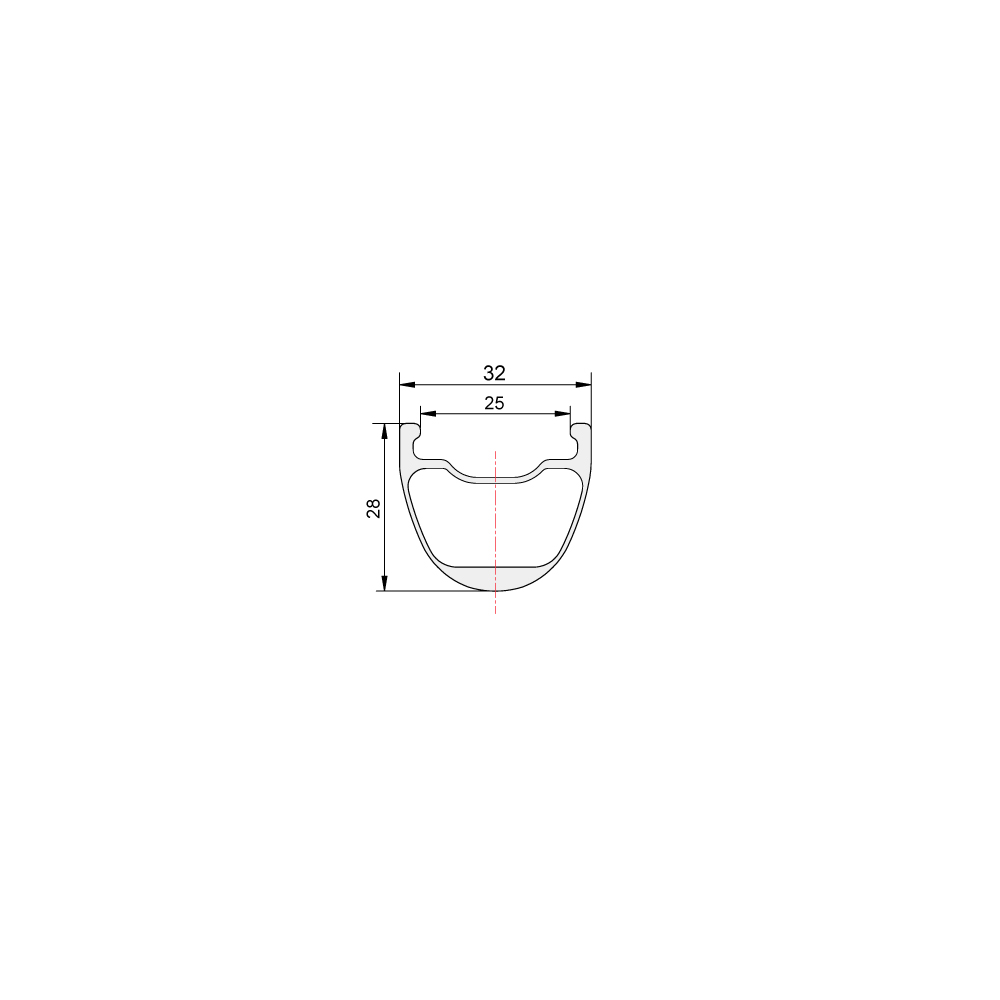

Specification

• Size: 20 inch / ISO 406
• ERD (Effective Rim Diameter): 374mm
• External Width: 32mm
• Rim Height: 28mm
• Weight: 300g
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 80~130kgf
• Tire Size: 32mm~62mm
• Tire Pressure: 40 ～ 90psi
• Load Limit (One Wheel): 120kg

Appearance

• Weave: UD / 3K / 12K
• Finish: Matte / Glossy
