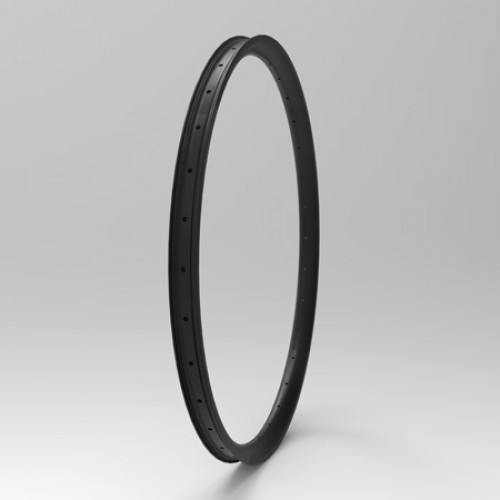

[Standard] 27.5" Asymmetric MTB Rim 38mm

  • Unit Price: 175 USD

NXT27WC38 | 430g | Tire 2.2"~2.75"


  • Code: NXT27WC38
  • Rim Type: Clincher / Hookless
  • Materials: Toray T700 Carbon Fiber
  • Tubeless Compatible: This function allows you to run tubeless perfectly.
  • Drillings: 28, 32, 36
  • Warranty: 2 Years


  • Size: 27.5" / 650B
  • BSD (Bead Seated Diameter): 584mm
  • ERD (Effective Rim Diameter): 543mm

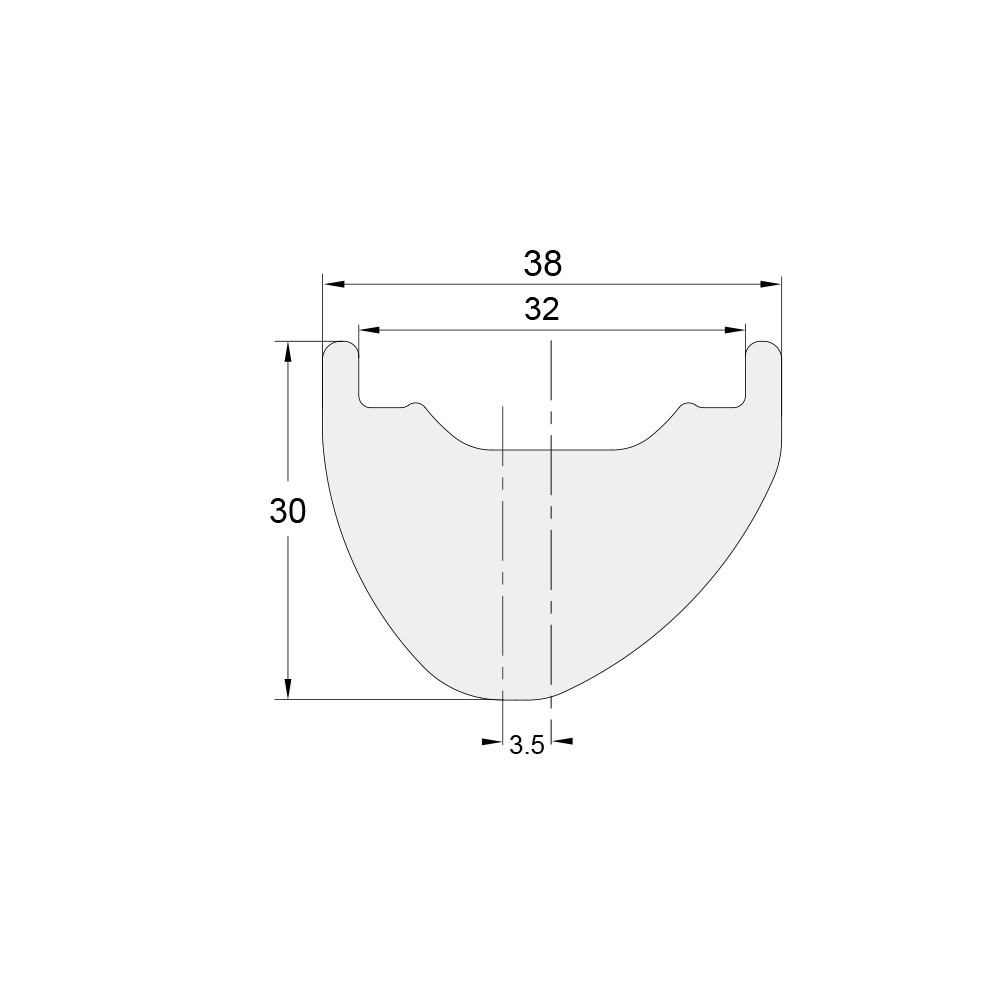

  • External Wide: 38mm
  • Internal Width: 32mm
  • Rim Height: 30mm
  • Weight: 430g
  • Valve Hole Diameter: 6.5mm
  • Spoke Holes Diameter: 4.5mm
  • Spoke Holes Offset: 3.5mm
  • Assembly Hole Diameter: 7.5mm
  • Rim Lip Thickness: 3.0mm


  • Spoke Tension: 130kgf
  • Tire Size: 2.2" ~ 2.75"
  • Tire Pressure: 60psi
  • Load Limit (One Wheel): 160kg


  • Weave: UD / 3K / 12K
  • Finish: Matte / Glossy

Design Features

  • first- Width: 38mm XL-Width: The wider the rim, the better the contact patch with the ground for tires. Also, the air volume in the tire increases, smoothing out the small bumps that cause your hands and wrists to get cramped up.


  • application: XC / AM / Trail / Enduro

AIO System

  • AIO System: The AIO (all in one) system is another technical method to strengthen the rim by using long and continuous carbon fiber layers to wrap into rim. For only one overlap of a layer circle, not only can it keep the original continuous strength of carbon fiber layers, but also it saves weight;
