Basic

• Code: NXT27CD42
• Rim Type: Clincher (Hookless)
• Materials: Toray T700 Carbon Fibers
• Tubeless Compatible: Yes
• Drillings: 32
• Warranty: 2 Years

Specification

• Size: 27.5" / 650B
• BSD (Bead Seated Diameter): 584mm
• ERD (Effective Rim Diameter): 553mm

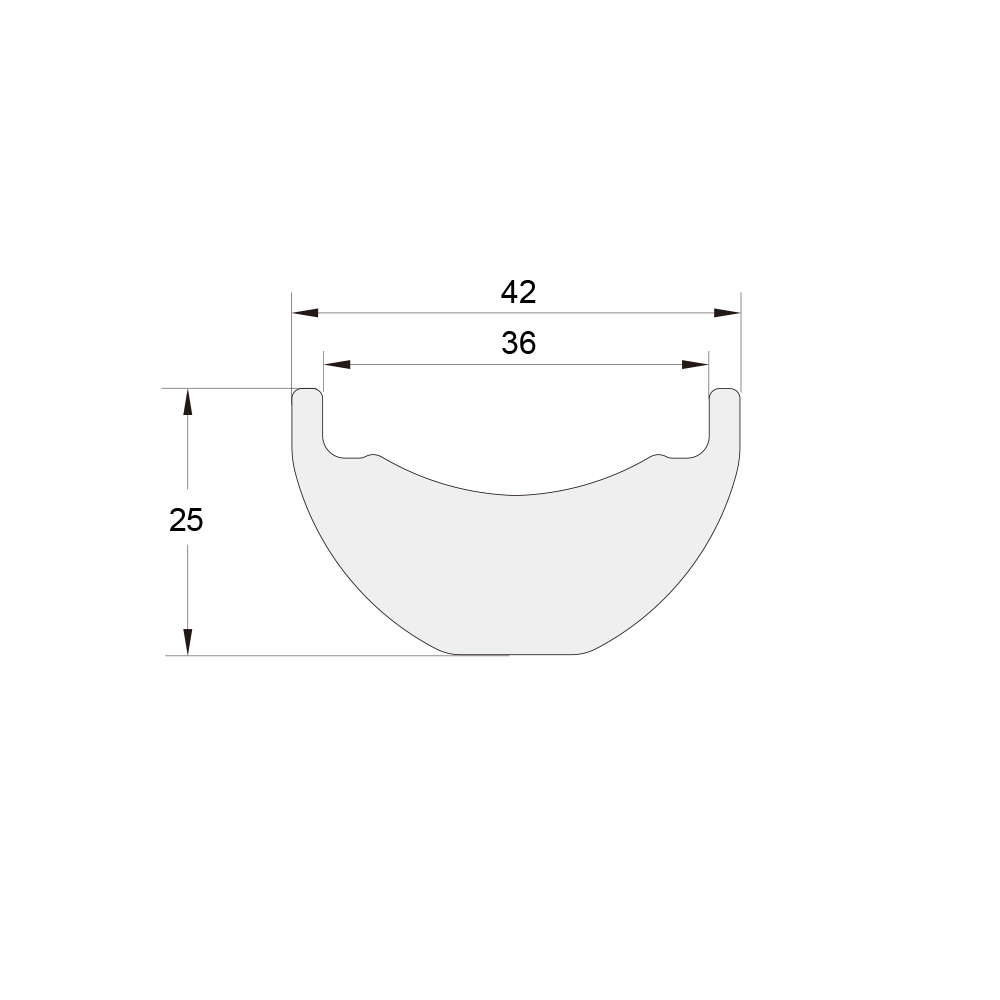

• External Width: 42mm
• Internal Width: 36mm
• Rim Height: 25mm
• Weight: 460g
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Spoke Holes Angle: ± 6°
• Spoke Holes Offset: +/-3mm
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 80~130kgf
• Tire Size: 2.2" ~ 3.0"
• Tire Pressure: 25 ~ 50psi
• Load Limit (One Wheel): 120kg

Appearance

• Carbon Weave Availability: UD
• Finish: Free Coating / Matte / Glossy

Application

• application: Trail / AM / Enduro / Freeride
