35mm Depth | 700C | 365g | ERD 571mm | 15% T800 + 85% T700 Carbon Fibers | Graphene Braking Surface | Road / Triathlon / Cyclocross / TT

Basic
- Item #: NXT35TX
- Material: Toray T800 (15%) + T700 (85%) Carbon Fiber
- Rim Type: Tubular
- Warranty: 3 Years
Dimension
- Size: 700C
- ERD: 571mm

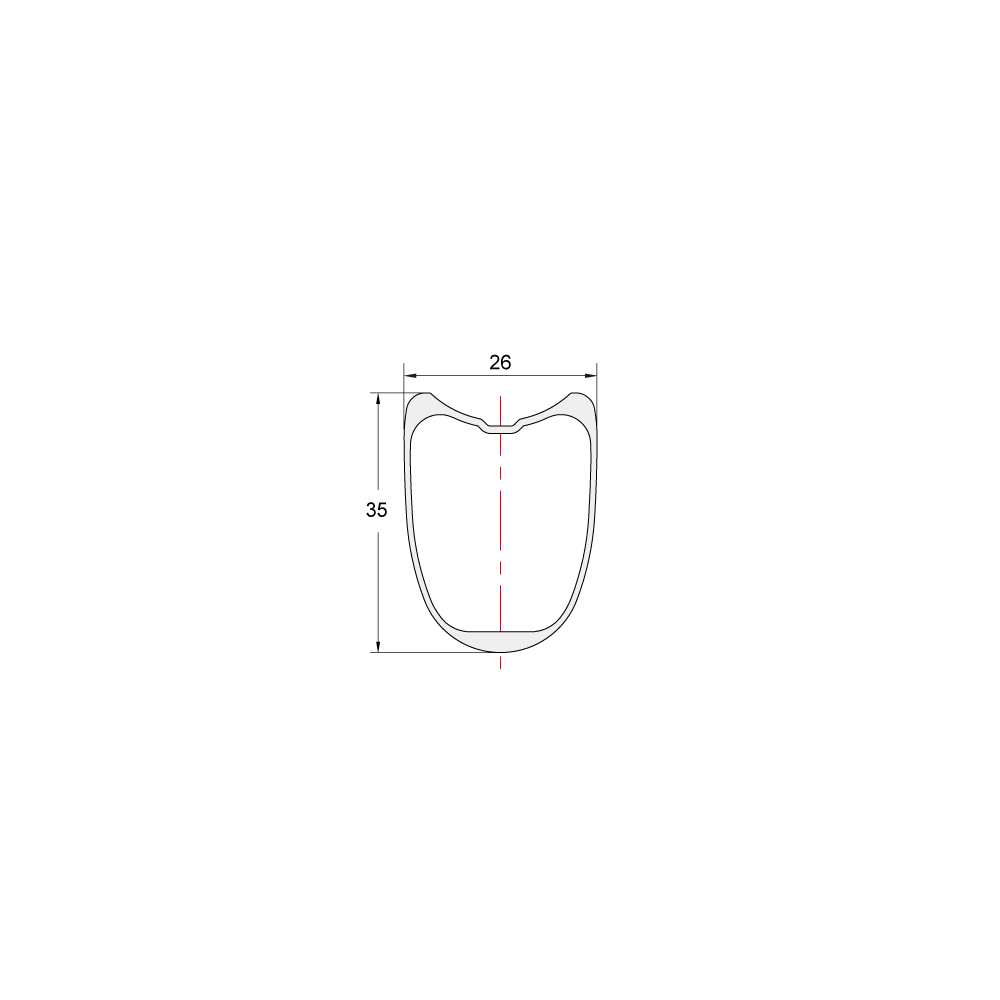

- Width: 26mm
- Spoke Hole Dia.: 4.5mm / 2.3mm
- Depth: 35mm
- Valve Hole Dia.: 6.5mm (Presta)
- Weight: 365g
- Assembly Hole Dia.: 7.5mm
- Hole count: 16, 18, 20, 24, 28, 32, 36
Recommendation
- Max Spoke Tension: 120kgf
- Spoke Nipple Length: 12mm / 14mm
- Weight Limit: 100kg
- Max Tire Pressure: 140psi
Appearance
- Weave: UD / 3K
- Finish: Matte / Glossy
Application
- application: Road / Triathlon / TT / Cyclocross
Design Features
- first- Width: Graphene Braking Surface
