[NXT27UL27] ULTRALIGHT 27mm Width 27.5" 650B Carbon Fiber Mountain Bike Clincher Rim [Tubeless Compatible]
27.5-27mm | 25mm Depth | 265g | ERD 551.5mm | Hookless | Tubeless | Tire 1.5"~2.2" | Cross Country / Trail | NEXTIE
Basic
- Item #: NXT27UL27
- Material: Toray T1000 (30%) + T700
- Rim Type: Clincher & Hookless
- Warranty: 3 Years
Dimension
- Size: 27.5" 650B
- BSD: 584mm
- ERD: 551.5mm

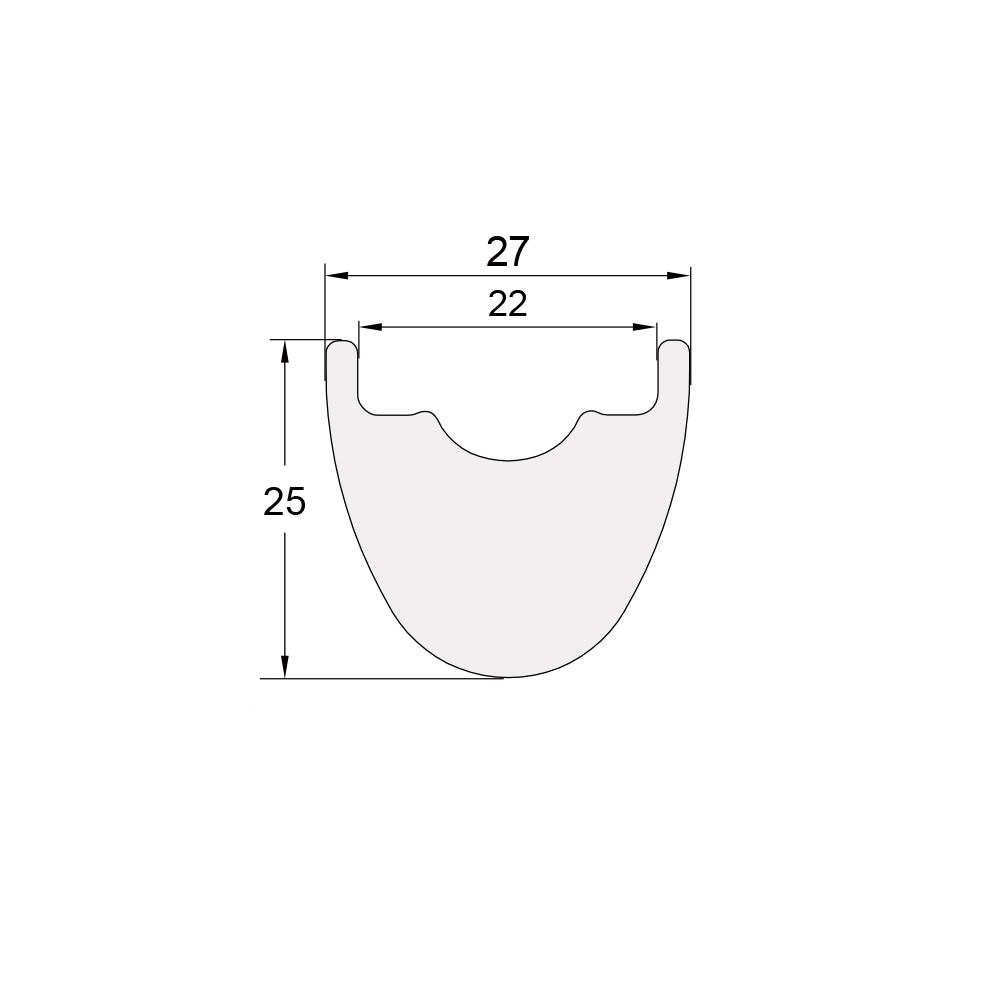

- External Width: 27mm
- Spoke Hole Dia.: 4.5mm / 2.3mm
- Depth: 25mm
- Internal Width: 22mm
- Valve Hole Dia.: 6.5mm
- Weight: 265g
- Assembly Hole Dia.: 7.5mm
- Hole count: 24, 28, 32, 36
Recommendation
- Tire Size: 1.5" ~ 2.2"
- Max Spoke Tension: 130kgf
- Weight Limit: 100kg
- Max Tire Pressure: 70psi
Appearance
- Weave: UD
- Finish: Matte / Glossy
Application
- application: XC / Trail ...
Tubeless Compatible
- Tubeless Compatible: This function allows you to run tubeless perfectly.
AIO System
- AIO System: The AIO (all in one) system is another technical method to strengthen the rim by using long and continuous carbon fiber layers to wrap into rim. For only one overlap of a layer circle, not only can it keep the original continuous strength of carbon fiber layers, but also it saves weight;
