Basic

• Product Code: NXT39ATX
• Rim Type: Tubular
• Materials: Toray T800+T700 Carbon fiber
• Drillings: 16, 18, 20, 24, 28, 32, 36
• Warranty: 3 Years

Specification

• Size: 700C
• ERD (Effective Rim Diameter): 561mm

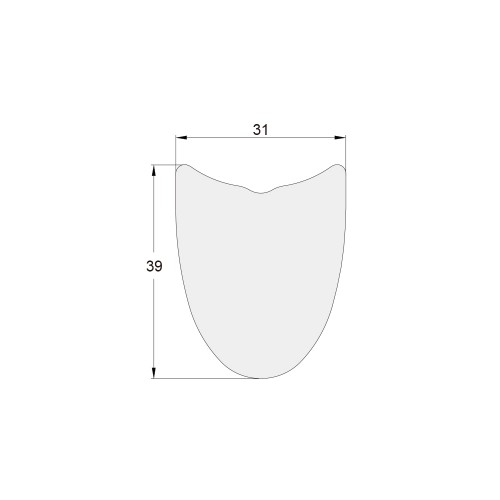

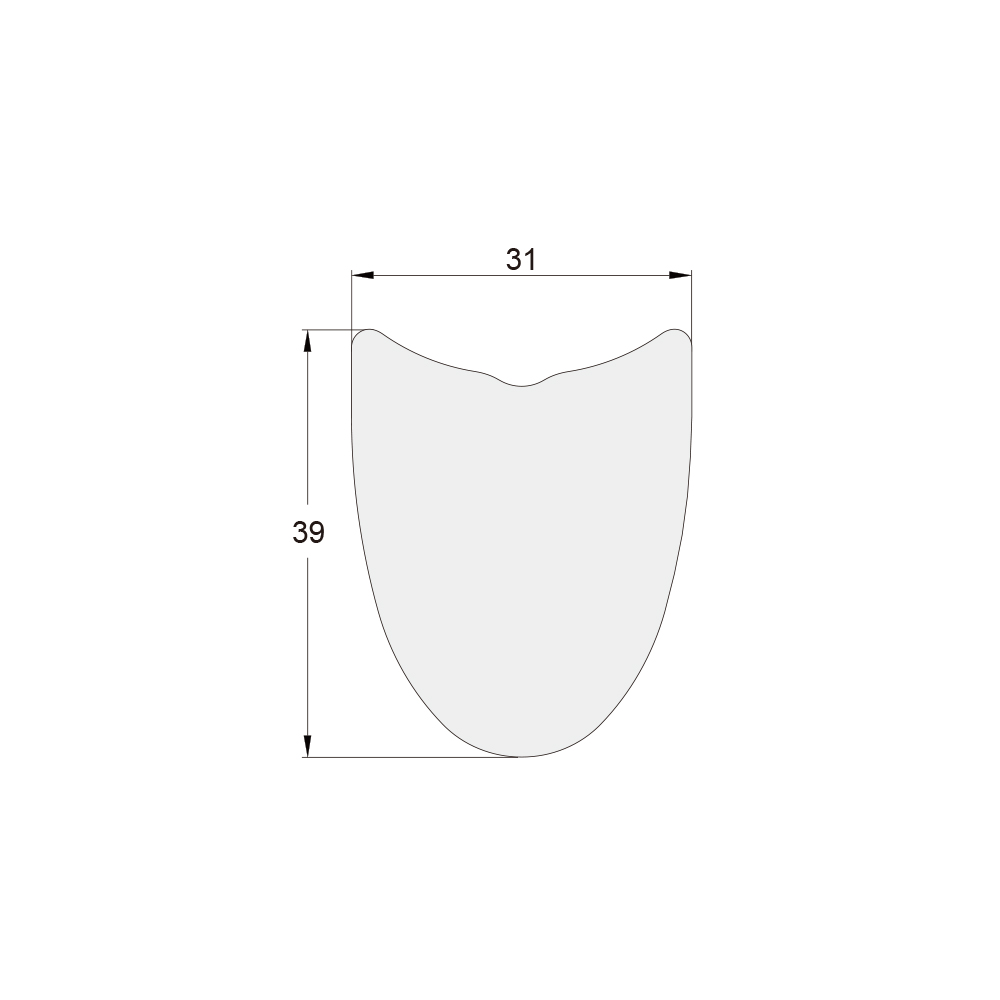

• External Width: 31mm
• Rim Height: 39mm
• Weight: 310g
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm / 2.3mm
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 130kgf
• Spoke Nipple Length: 12mm / 14mm
• Tire Pressure: 140psi
• Load Limit (One Wheel): 100kg

Appearance

• Weave: UD / 3K
• Finish: Matte / Glossy

Application

• application: Road / Triathlon / TT / Cyclocross

Design Features

• first- Width: Graphene Braking Surface
