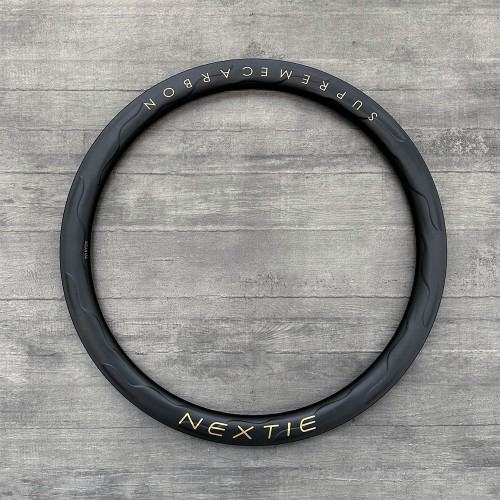

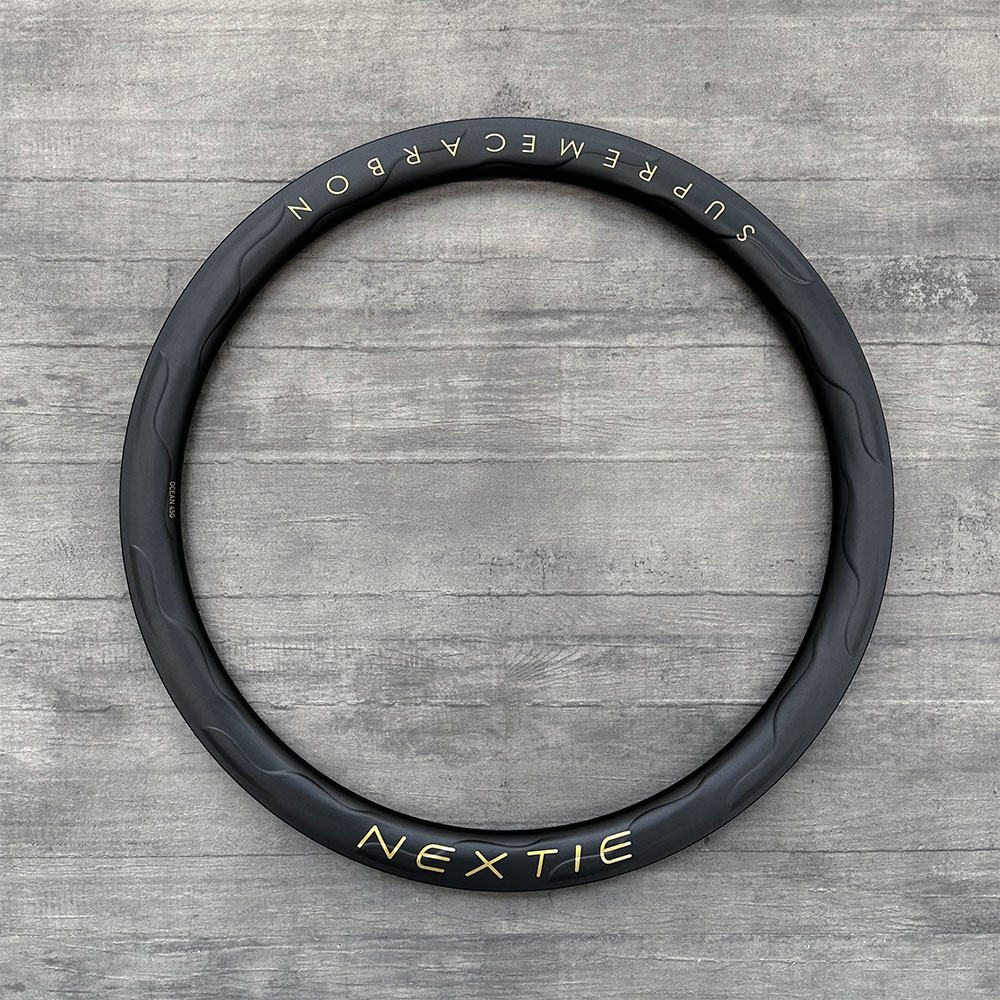

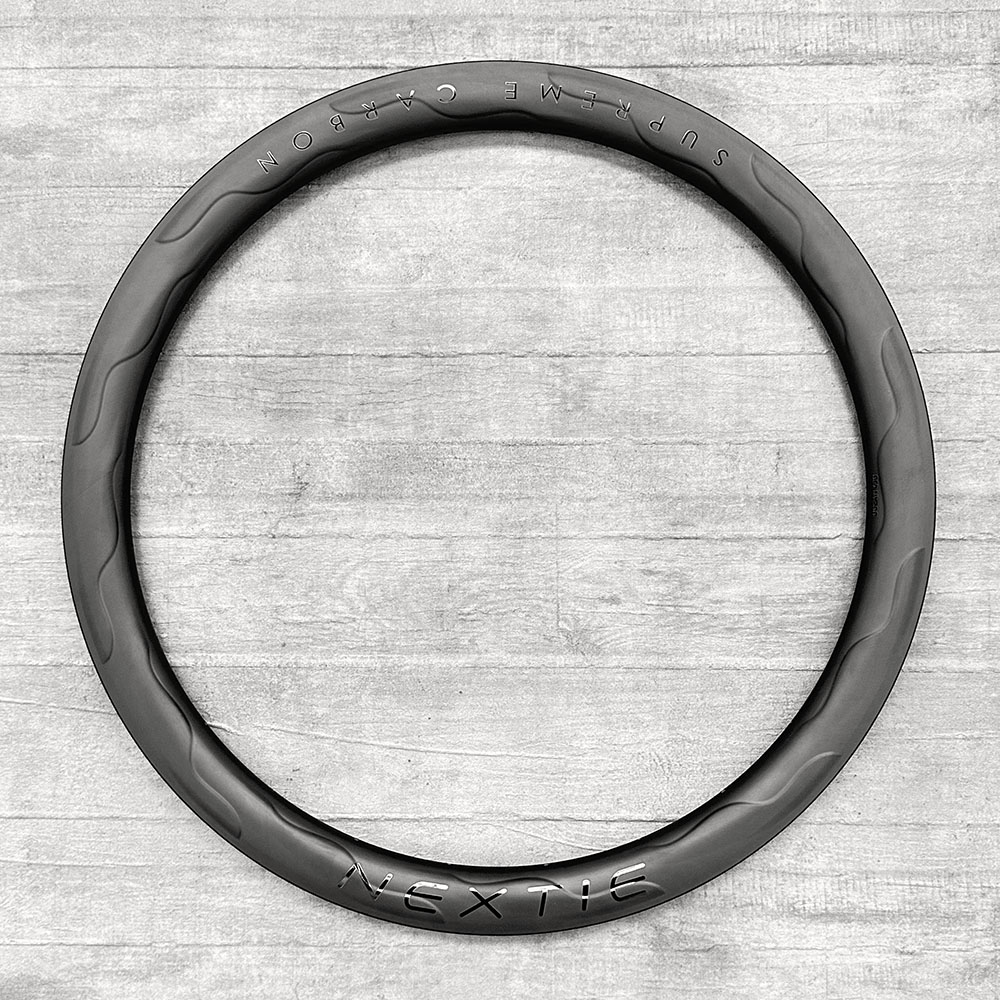

[Ocean 45G] Supreme Edition Wide Road · Gravel Bicycle Carbon Rim 45mm 385g

  • Unit Price: 330.0 USD

  • Price in reward points: 33000
  • [Ocean 45G] Supreme Edition Wide Road · Gravel Bicycle Carbon Rim 45mm 385g



Introduction

Ocean 45G is a new carbon fiber bicycle rim designed for gravel bicycles. The surface design of this rim simulates the natural texture of the ocean waves hitting the beach, so we named it Ocean. The natural texture design of the ocean waves is not only for visual beauty, but also to disrupt the wind resistance on the surface of the rim when riding, so as to achieve the purpose of increasing riding speed. In order to reduce weight and increase strength, we added high tensile strength Toray T1000 carbon fiber material when developing this rim, making the impact strength reach an amazing 120J.

1. Material Upgrade: Toray T1000 Aerospace Grade Carbon Fiber Added, Rim Gets Lighter.

The Ocean 45G rim is our Supreme Edition carbon rim. During its development, we incorporated Toray T1000 carbon fiber, enabling it to achieve remarkable impact strength while maintaining a light weight. As is widely known, Toray T1000 has higher tensile strength than both the T700 and T800 carbon fiber models.



2. Rim Surface Spoiler and Aesthetic Improvement Design: Ocean Waves Hitting the Beach.

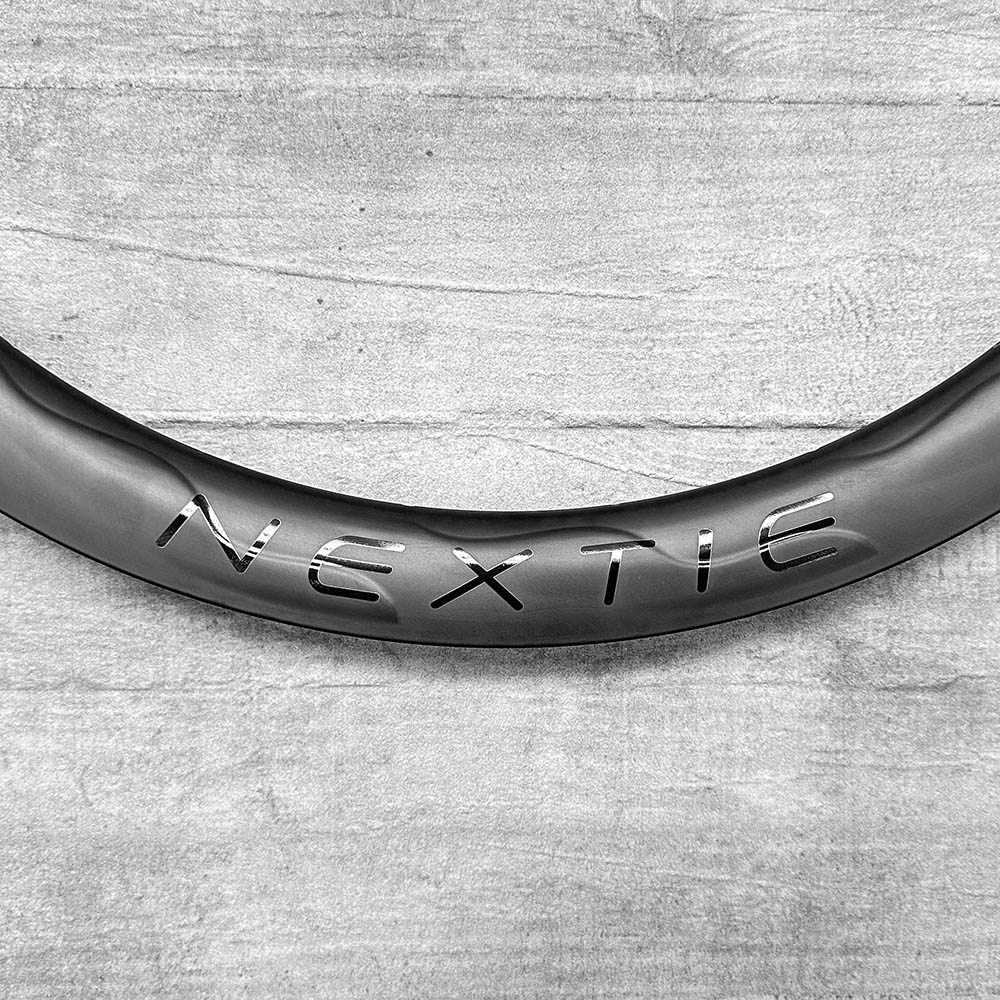

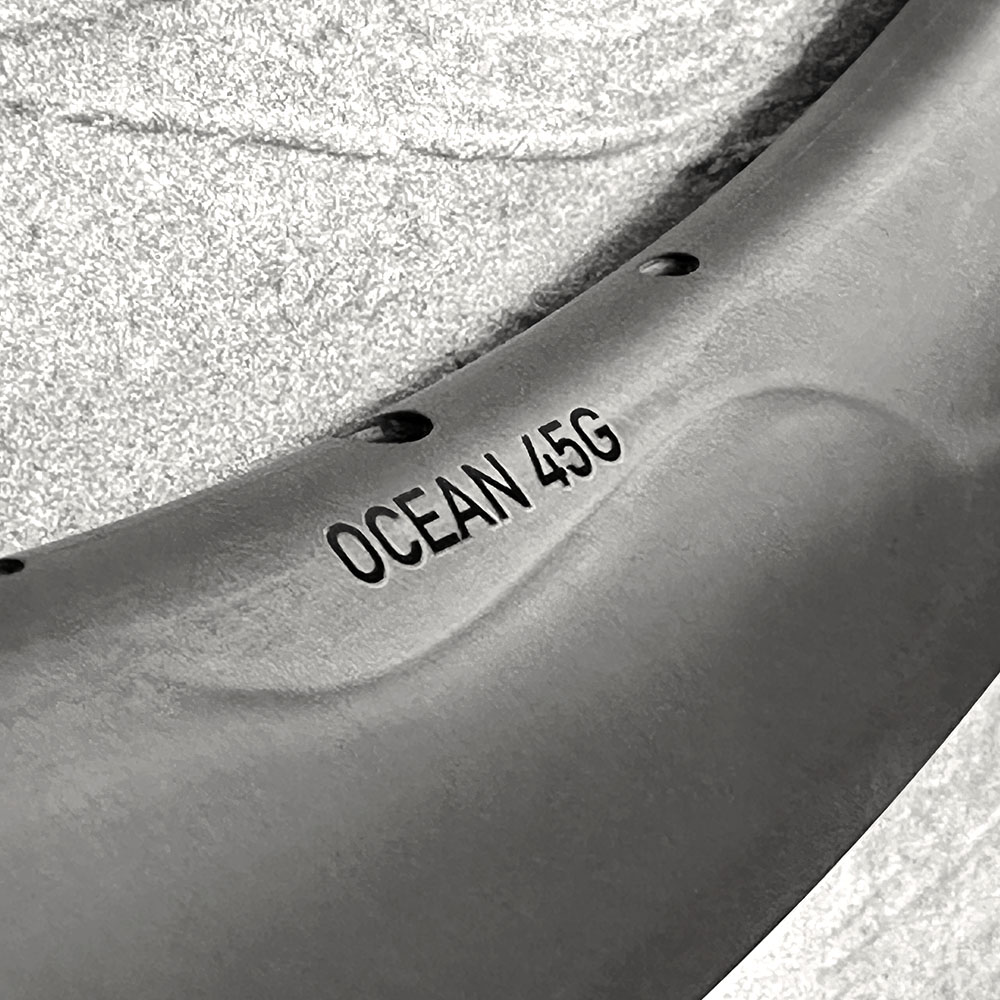

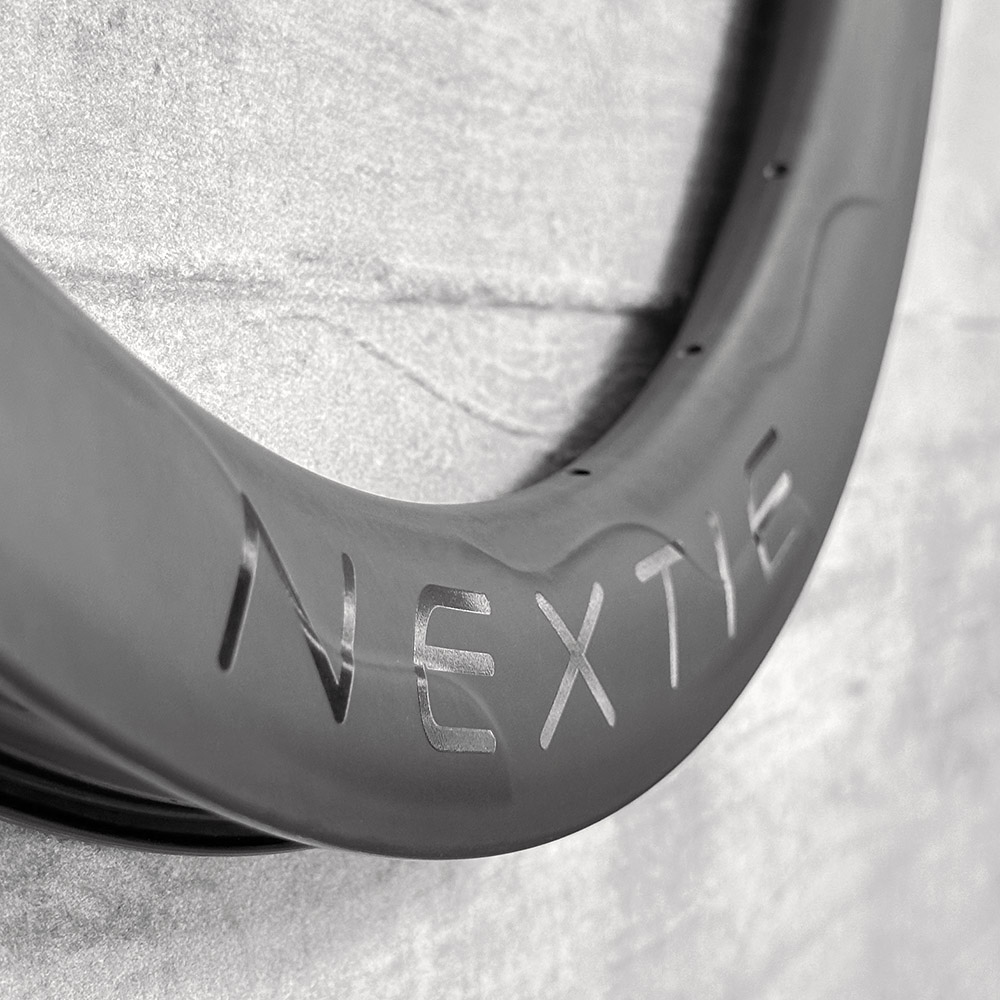

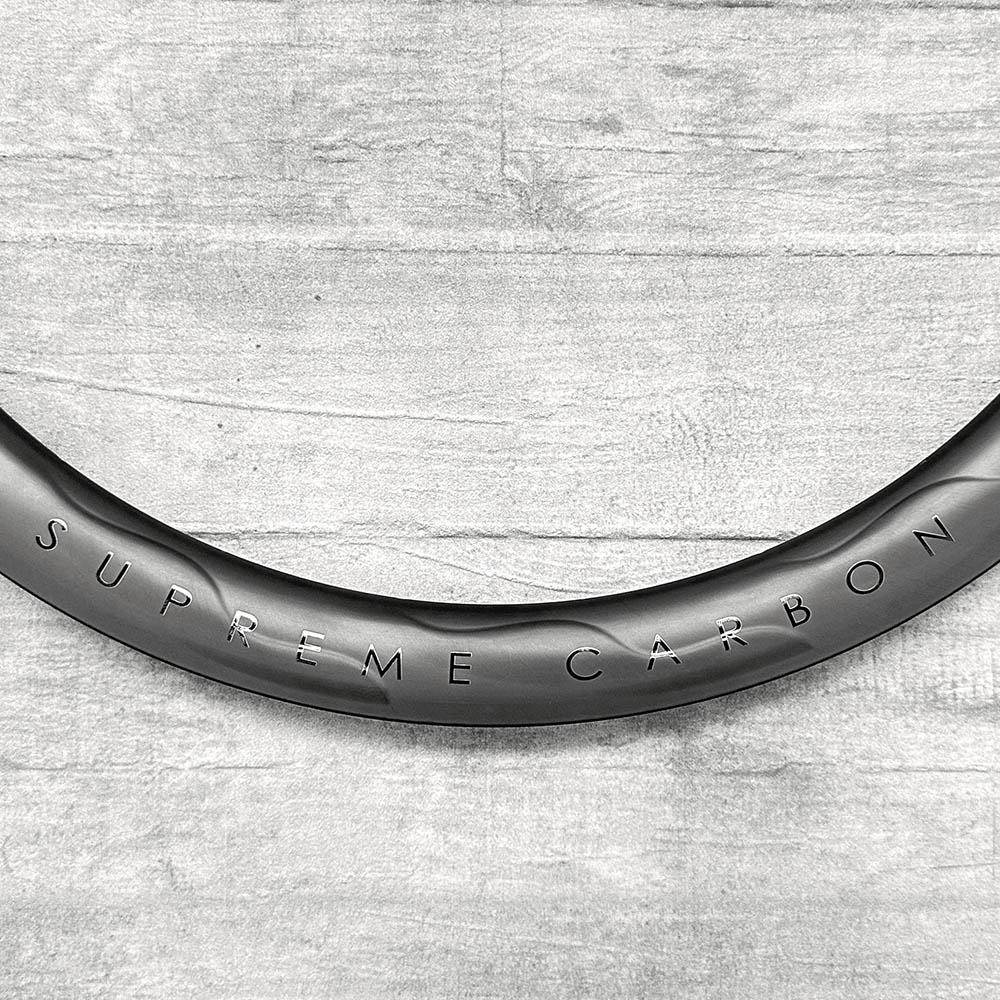

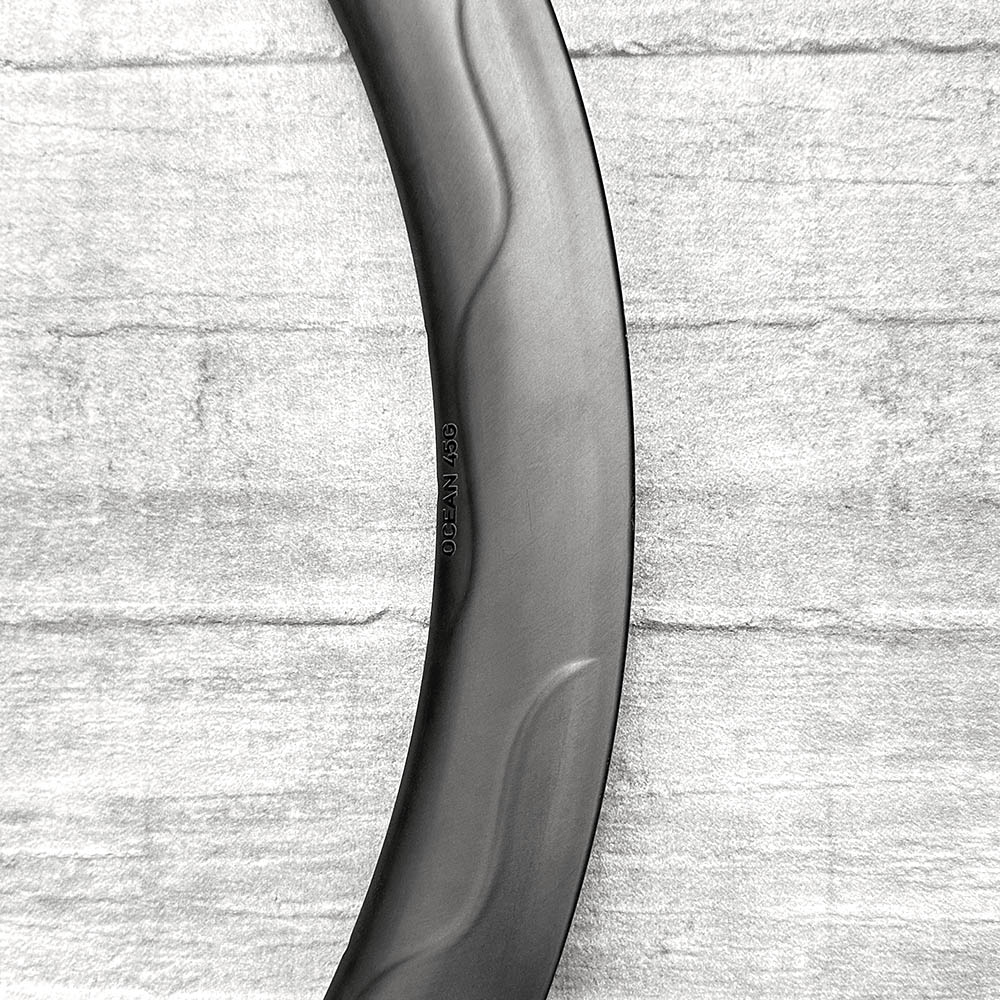

The Ocean 45G rim is the second carbon fiber road rim of special appearance we developed, besides the Ripple 50 rim. It simulates the natural texture of ocean waves crashing onto the beach. This appearance is not only for visual beauty, but also to disrupt the wind resistance on the surface of the rim when riding, so as to achieve the purpose of increasing riding speed. In addition, we found that this special appearance seems to improve the rim's stiffness in the impact test.



3. Newest Layer-up Structure: All-wrapping Technology for Main Carbon Fiber Structure Make Rim Stronger.

All-wrapping Technology (AWT) for main carbon fiber structure applied on Ocean 45G rim further improves the stability and stiffness. AWT ensures the integrity of the carbon fiber material, thereby ensuring the rim's stability and stiffness. AWT is also applied on our road bike rims of Alpha series and Ocean series.


4. Highly Strict Technical Test Methods — 120J (UCI test condition).

We applied the UCI test conditions to test Ocean 45G carbon rim. The impact test result was 120J, which is a super high value for a road bike rim, which is so much higher than the UCI's qualified strength standard for road bicycle rims.


This rim could be used for Road. Triathlon. Cyclocross. Dirt. Gravel and Adventure riding.. The tire size for this model of rim is recommended at 29 ~ 55mm Road / 29 ~ 40mm Cyclocross / 29 ~ 62mm Gravel. The tire pressure is recommended at 28 ~ 89psi Road / 24 ~ 53psi Cyclocross / 26 ~ 78psi Gravel.


Technical Test Data

Experimental Rim
Ocean 45G · 384g · 24Holes
Date 2025.06.03
Testing Items
Tension / Force
Deformation
Result Description
Positive Stiffness (at valve hole)
50 kgf
1.48 mm
PASS
Positive Stiffness (at valve hole 90°)
50 kgf
1.45 mm
PASS

Impact Test Data

Experimental Rim
Ocean 45G · 384g · 24Holes · Spoke Tension 130kgf
Date 2025.06.05
Testing Items
Test Conditions (UCI)
Result
Result Description
Impact Test 1
Drop Hammer 22.5Kg · Drop Height 408mm
90 J
PASS
Impact Test 2
Drop Hammer 22.5Kg · Drop Height 454mm
100 J
PASS
Impact Test 3
Drop Hammer 22.5Kg · Drop Height 499mm
110 J
PASS
Impact Test 4
Drop Hammer 22.5Kg · Drop Height 544mm
120 J
PASS
Impact Test 5
Drop Hammer 22.5Kg · Drop Height 590mm
130 J
FAILED


What's in the Box

Carbon Rim(s)

Tubeless Kits (Tubeless Valve Stem x 2 and Tubeless Tape x 1)

Documentation


Learn more

Basic

  • Model: Ocean 45G
  • Rim Type: Road · Gravel
  • Materials: Toray T700 + T800 + T1000 Carbon Fiber
  • Brake Interface: Disc Brake
  • Edition: Supreme Edition
  • ASTM Classification: Condition 4
  • Warranty: 5 Years
  • Release Time: July 2025

Specification

  • Size: 700C
  • BSD (Bead Seated Diameter): 622mm
  • ERD (Effective Rim Diameter): 550mm
  • Drillings: 24. 28. 32
  • External Width: 32mm
  • Internal Width: 25mm
  • Rim Height: 45mm
  • Weight: 385g
  • Valve Hole Diameter: 6.5mm
  • Spoke Holes Diameter: 4.5mm | 2.5mm
  • Assembly Hole Diameter: 7.5mm
  • Drain Holes: Optional
  • Tubeless Compatible: Yes
  • Tubeless Ready: Optional
  • Strength: 120J <UCI, no tire>

Recommendation

  • Tire Size: 29 ~ 55mm Road / 29 ~ 40mm Cyclocross / 29 ~ 62mm Gravel
  • Tire Pressure: 28 ~ 89psi Road / 24 ~ 53psi Cyclocross / 26 ~ 78psi Gravel
  • Spoke Tension: 110 ~ 130kgf
  • Max System Weight: 160Kg
  • Ideal Valve Stem Length: 57mm

Appearance

  • Carbon Weave: UD
  • Finish: Free-Coating | Matte | Glossy

Application

  • application: Road. Triathlon. Cyclocross. Dirt. Gravel and Adventure riding.

Best Feature

  • Feature 1: 1. Material Upgrade: Toray T1000 Aerospace Grade Carbon Fiber Added, Rim Gets Lighter.
  • Feature 2: 2. Rim Surface Spoiler and Aesthetic Improvement Design: Ocean Waves Hitting the Beach.
  • Feature 3: 3. Newest Layer-up Structure: All-wrapping Technology for Main Carbon Fiber Structure Make Rim Stronger.
  • Feature 4: 4. Highly Strict Technical Test Methods — 120J (UCI test condition).
