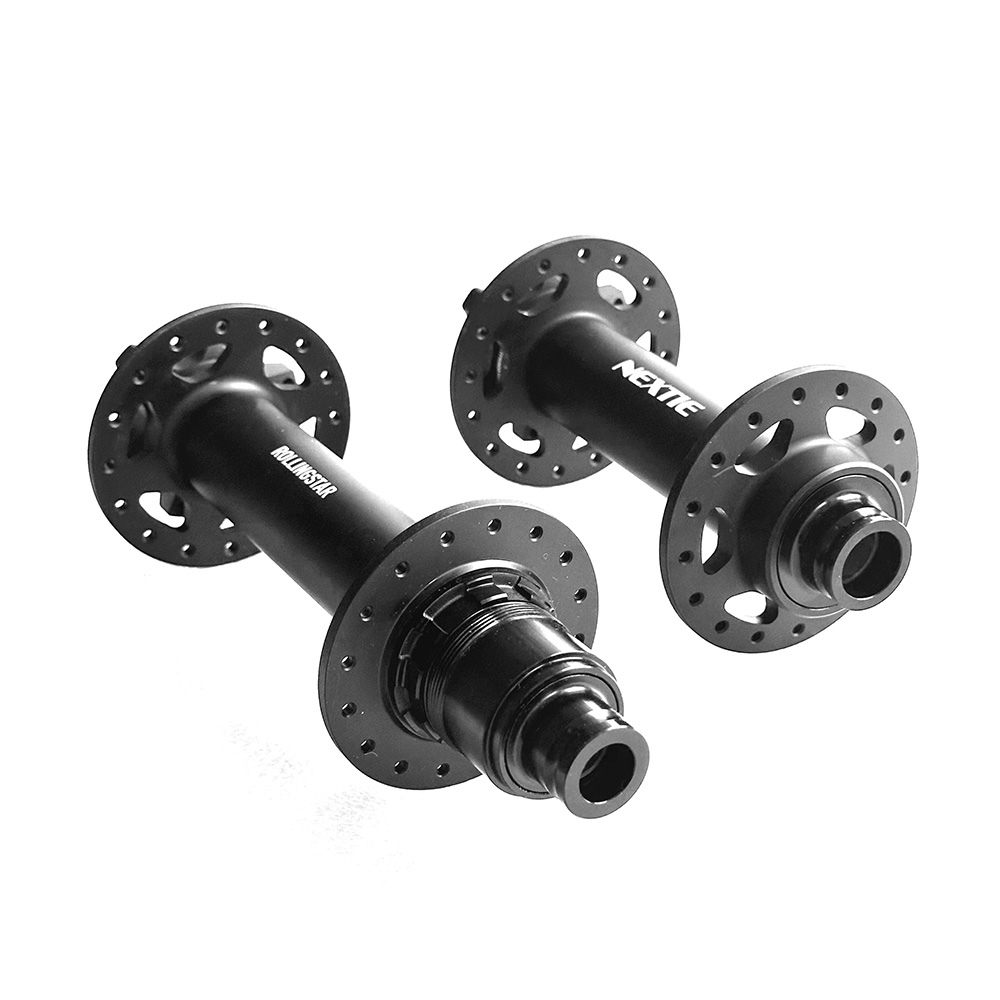

NEXTIE Rollingstar II FatBike Hubs 15x150/12x197mm 460g

  • Unit Price: 320.0 USD

  • Unit Price: 300.0 USD

  • Price in reward points: 32000



Since 2023, we have successively developed the second generation of Rollingstar road and mountain bike hubs. We have received much positive feedback from customers regarding this series of hubs. At the same time, we have also received many inquiries from customers who prefer fat bikes, asking if we plan to develop a ratchet-structured fat bike hub that is lighter and more affordable. NEXTIE is always committed to contributing to the improvement and advancement of the bicycle market. As you know, we supply the world's widest range of high-quality carbon fiber rims for fat bikes, and developing a new fat bike hub to fit the widest range of rims is something many customers have been hoping for. We are willing to take on this responsibility and continuously improve the structure of the bicycle market.

Rollingstar II Fat Bike Hubs for Beach Bike WheelsRollingstar II Fat Bike Hubs for Fat Bike Wheels

The internal structure of Rolllingstar II fat bike hubs uses a durable ratchet mechanism, and the exterior design maintains the consistent design style of the Rollingstar II series. The 6-bolt version of the hub set weighs less than 460g. To be honest, the design isn't particularly innovative, but we have put a lot of effort into quality and craftsmanship. Below are some pictures and design-related information about the hubs.

Rollingstar II Fat Bike Hubs Front 150mmRollingstar II Fat Bike Hubs Rear 197mm

Rollingstar Hubs profile NEXTIE beach bike


Hubs Dimensions

Rollingstar-II-Fatbike-Hubs.pdf

Hubs Exploded View

Rollingstar-II-Fat-Bike-Exploded-View.pdf


Basic

  • Brand: NEXTIE
  • Name: Rollingstar II FatBike
  • Materials: Aluminum Alloy
  • Type: J-Bend
  • Color: Black (and more colors in the future)
  • Ratchet Teeth: 36T
  • Net Weight: 445 ~ 460g (front + rear)
  • Brake Interface: Disc 6 Bolt
  • Spoke Hole Diameter: 2.5mm
  • Warranty: 2 Years
  • Release Time: December 2025

Specification

  • Drillings: 32

Front Hub Specification

  • Axles: 15mm x 150mm Thru Axle
  • Net Weight: 183g
  • Materials: AL7075-T6 for axles; AL6061-T6 for end caps, shells;

Rear Hub Specification

  • Axles: 12mm x 197mm Thru Axle
  • Net Weight: 264g (Sram XD) / 278g (Shimano)
  • Materials: AL7075-T6 for axles, hub body; AL6061-T6 for end caps, shells;
