Name: [Ripple Wheelset] Road Bicycle Carbon Fiber Wheelset from 970g
Brand: NEXTIE
SKU: NXT-RP-WS
Price: 930.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Specification

Basic

Code: Ripple Wheelset
Materials: Carbon Fiber
Type: Road Bicycles
Size: 700C
Warranty: 5 Years

Dimensions

Rims: ROAD Ripple Series
Holes: 20 / 20 or 24 / 24
Nipples: Sapim Polyax Secure-Lock
Weight: From 970g
Spokes: Sapim. DT Swiss. Pillar. NEXTIE
Drain Holes: Alternative
Hubs: DT Swiss 350SL. 240 EXP. 180 EXP. NEXTIE Rollingstar.

Discipline

Discipline: Road, Triathlon, Cyclocross, Dirt, Gravel, and Adventure riding.

About Tubeless Ready

Lighter: Since no tubeless tape wrapping on the Tubeless Ready wheels, the weight of Tubeless Ready wheel goes lighter than the weight of common wheel with tape wrapped;
Stronger: No holes drilling on rim bed (except valve holes) and the carbon fibers not being damaged, the rim bed would be kept integral and the strength increases;
Safe: Tubeless Ready wheels no risk of air leaking from the rim bed, the cycling stays safe and the journey could be longer than riding bike with common wheels.

Best Features

Feature 1: 1. Super Light Hubs Rollingstar 3: only 230g
Feature 2: 2. Super Light Carbon Fiber Spoke T-Torque: only 1.86g
Feature 3: 3. Strong Titanium Spokes: T-Prime & T-Force

Description

Introduction

We offer a full line of custom bike rims for gravel bike wheels, providing tailor-made solutions to meet your specifications. We have years of experience in wheel-building, and we cater to the needs of each customer. In our inventory, we offer different sizes carbon fiber gravel bike rims.

At NEXTIE, we build each wheel with precision and care, you can be confident that you are getting a high quality custom bicycle wheelset when you buy from us.

If you are interested in customizing your bike with new and stylish rims, the experts at NEXTIE are ready to make your bike look great and improve your performance on the trails. We have been serving the cycling community since 2013, and all our custom bike rims are made here in China.

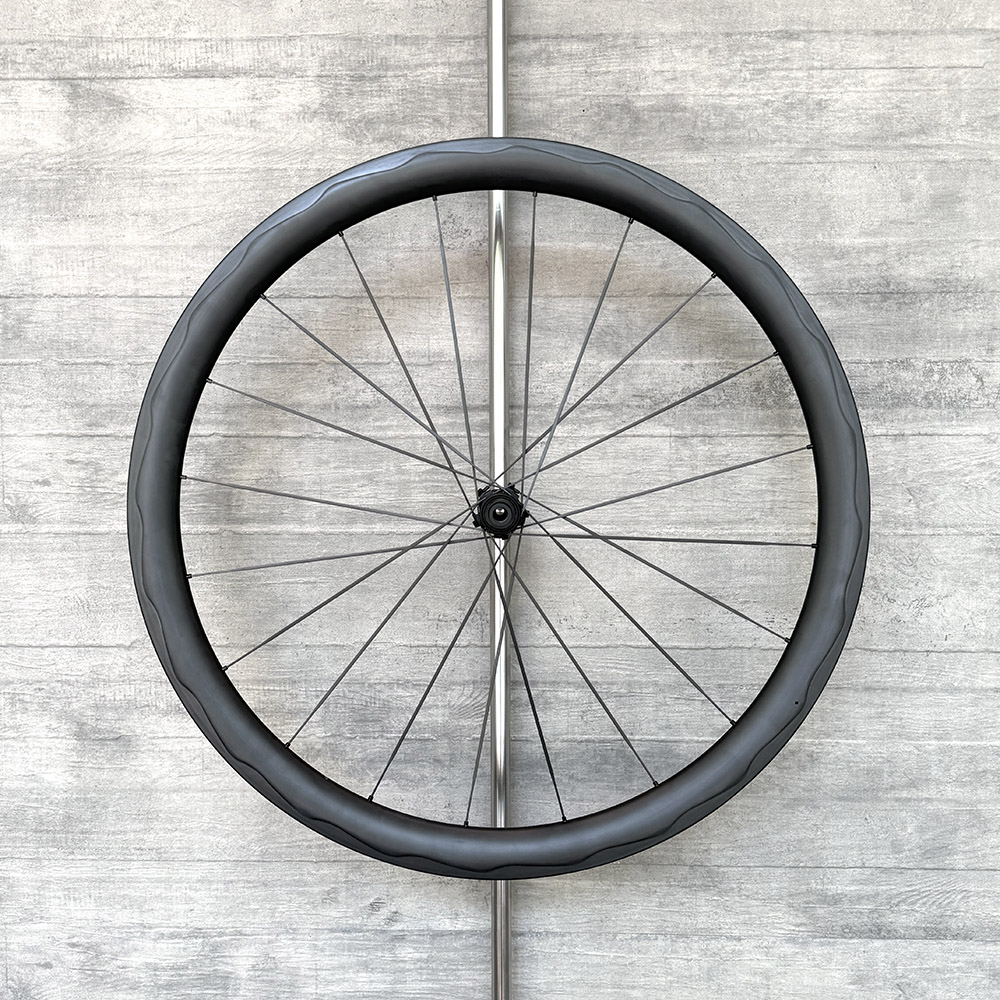

Carbon Road Bicycle Wheel Assembly Bicycles

Wheelset Weight Reference

970g: Ripple Rims + Rollingstar 3 Hubs (20/20Holes) + T-Torque Carbon Spokes.

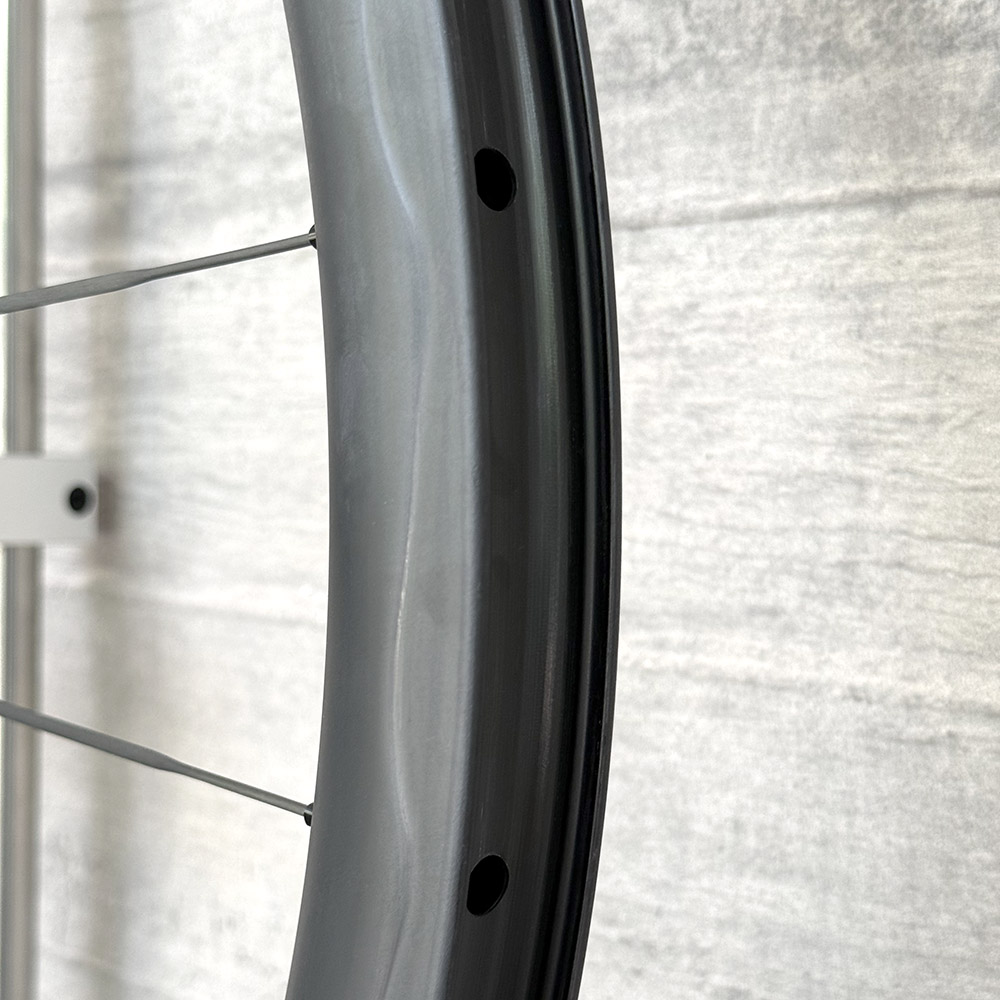

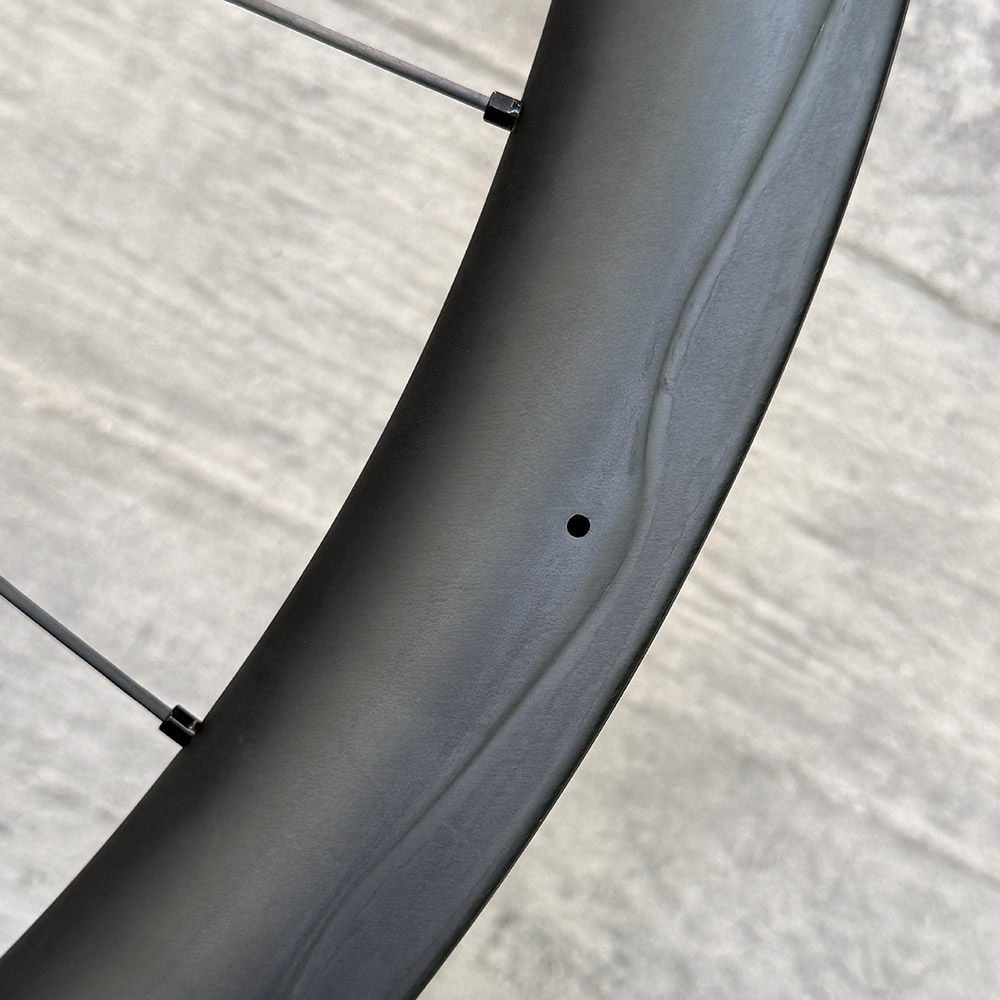

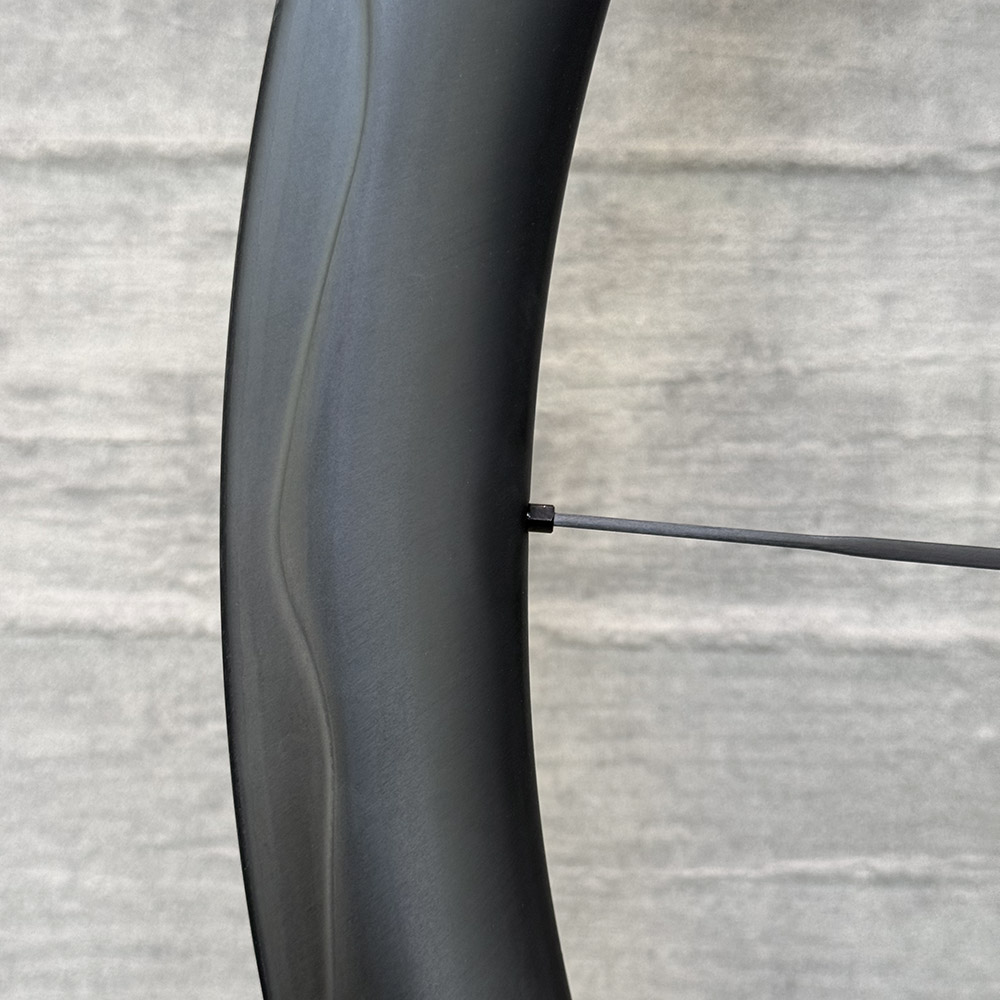

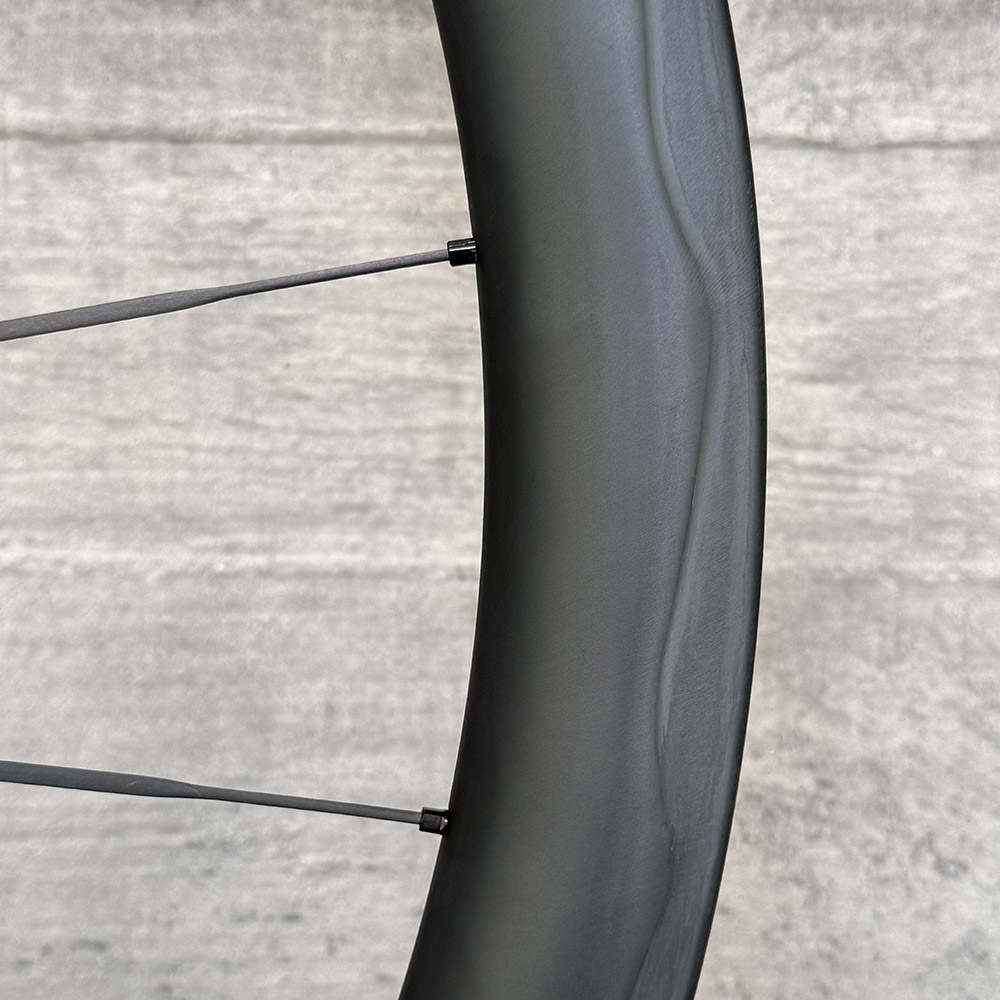

Carbon Road Bike Rims

Rims of Ripple 40 and Ripple 50. The profile drawings are as below.

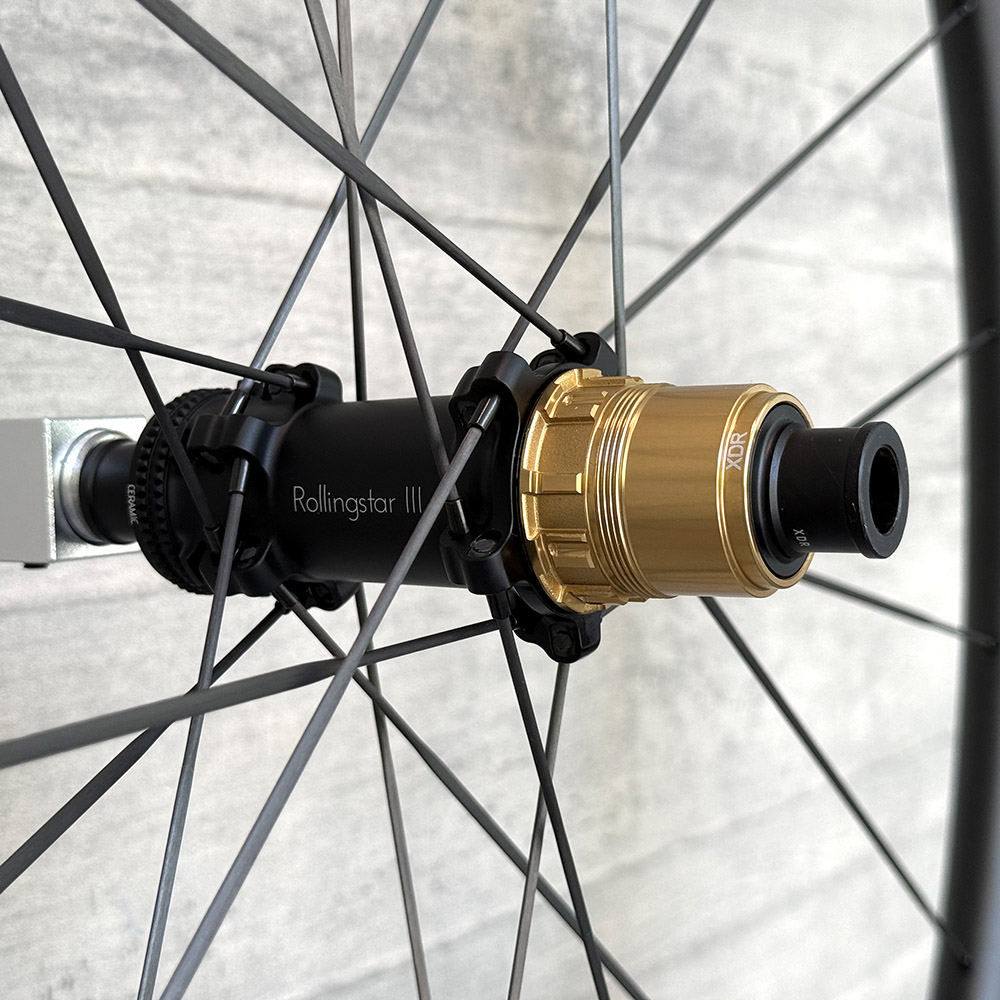

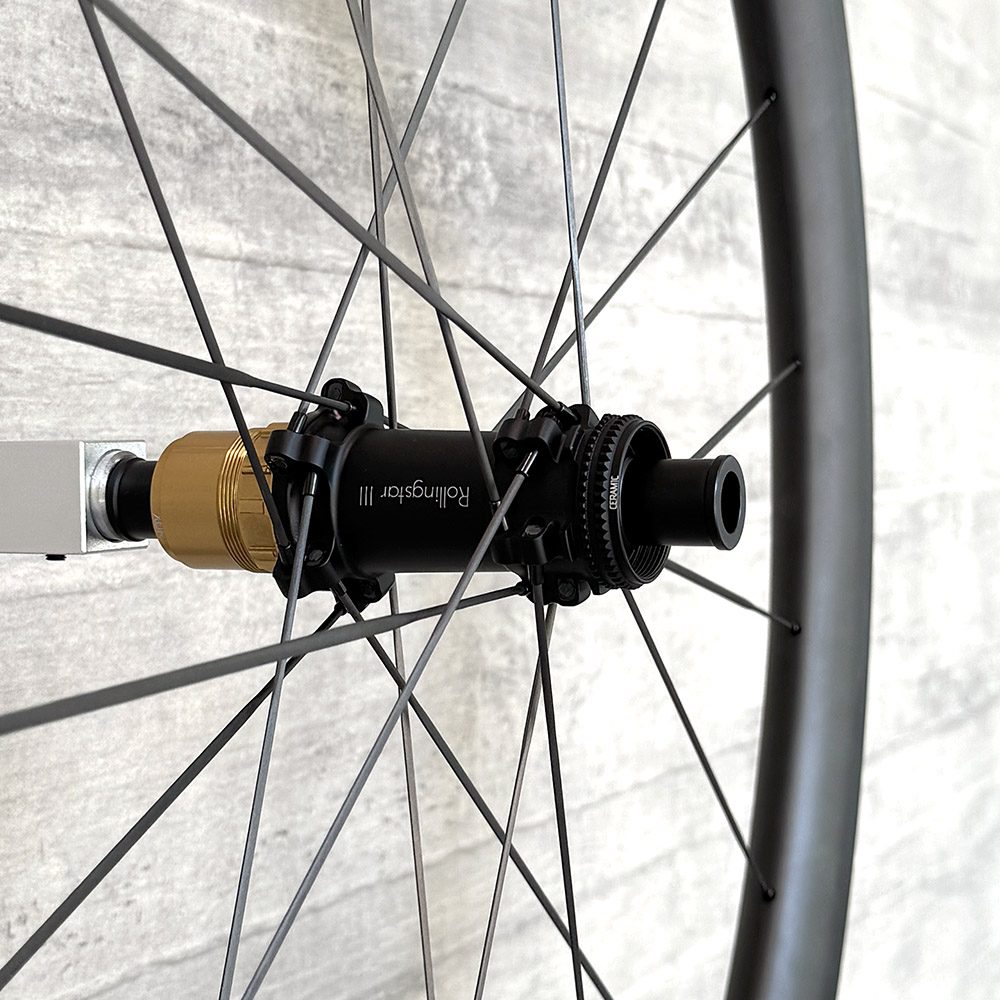

Hubs

DT Swiss 350SL / 240 EXP / 180 EXP and our own brand hubs Rollingstar.

Spokes

Spokes Sapim CX-Ray (64 pcs x 260 mm lg) 272g

Spokes Sapim D-Light 2.0/1.65 (64 pcs x 260 mm lg) 307g

Spokes DT Competition 2.0/1.8 (64pcs x 264mm lg) 382g

Spokes DT Competition Race 2.0/1.6 (64pcs x 264mm lg) 312g

Spokes Pillar X-Tra 1420 (64pcs x 260mm lg) 275g;

Carbon Fiber Spokes Aero 2.6g/pcs (270mm).

Nipples

Sapim Polyax (Secure Lock, 14mm) Alloy / Brass in color black, red, orange, gold, blue, green, purple, pink, silver and more;

Tubeless Ready Wheels

Carbon Fiber Wheelset Tubeless Ready

Advantage 1 - Lighter: Since no tubeless tape wrapping on the Tubeless Ready wheels, the weight of Tubeless Ready wheel goes lighter than the weight of common wheel with tape wrapped;

Advantage 2 - Stronger: No holes drilling on rim bed (except valve holes) and the carbon fibers not being damaged, the rim bed would be kept integral and the strength increases;

Advantage 3 - Safe: Tubeless Ready wheels no risk of air leaking from the rim bed, the cycling stays safe and the journey could be longer than riding bike with common wheels.

Disadvantage: Needs professional maintenance in case of spoke breaking

Note: Tubeless Ready wheels could also be mounted with tubes.

What's in the Box

Carbon Wheelset (Front + Rear)

2 x Extra Spokes

Documentation

Learn more

What is the difference between weaves UD, 3K and 12K?

What is Free Coating Manufacturing (FCM) process?

What is the Difference between Ultralight, Premium and Standard Edition?

What is ERD (Effective Rim Diameter)?

How much spoke tension should I use?

Reviews (1)

marco antonioVerified Buyer July 21, 2026

montei as rodas com aros nextie ripple 40 e cubos NEXTIE Rollingstar 3 ROAD 12x100mm/12x142mm 20/20Holes com raios Carbon Fiber Spokes T-Torque 20/20Holes (1.85g;

muito leves o conjunto pesando 960 gramas o par e extremamente rigidas. amei!
