Introduction

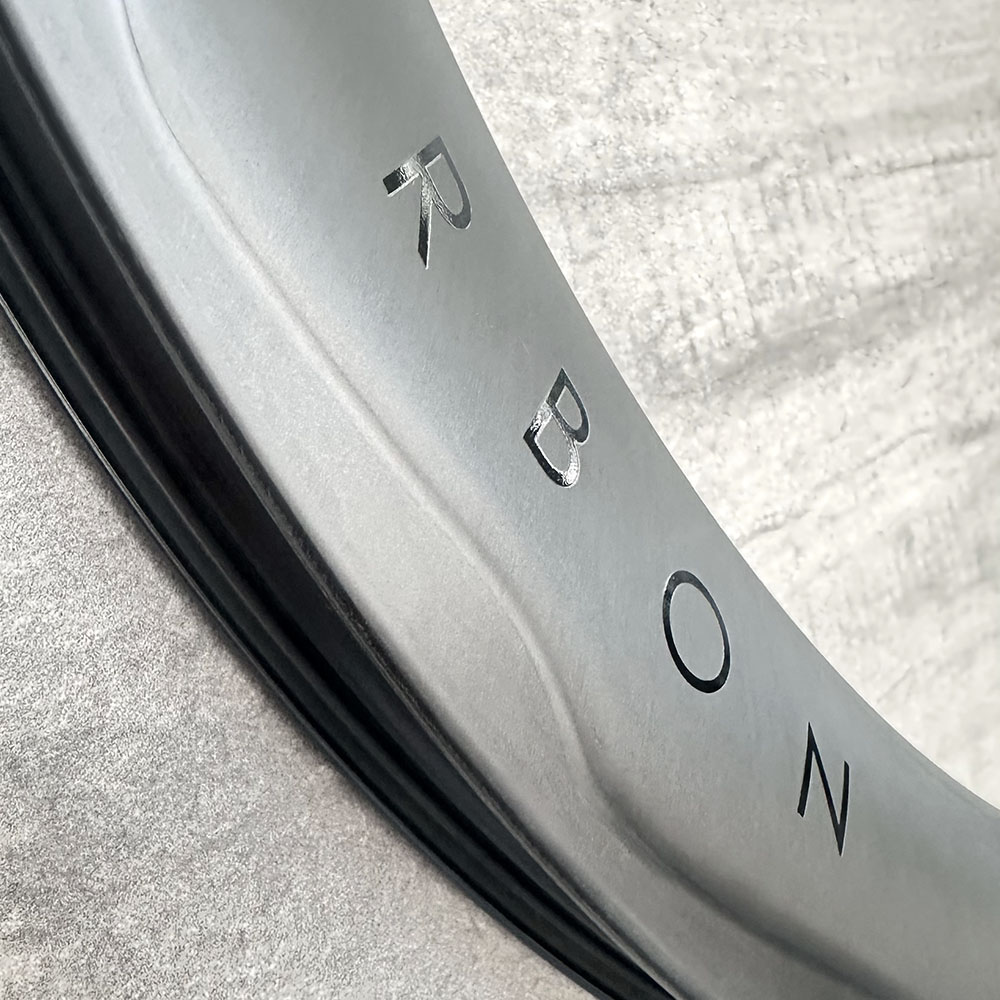

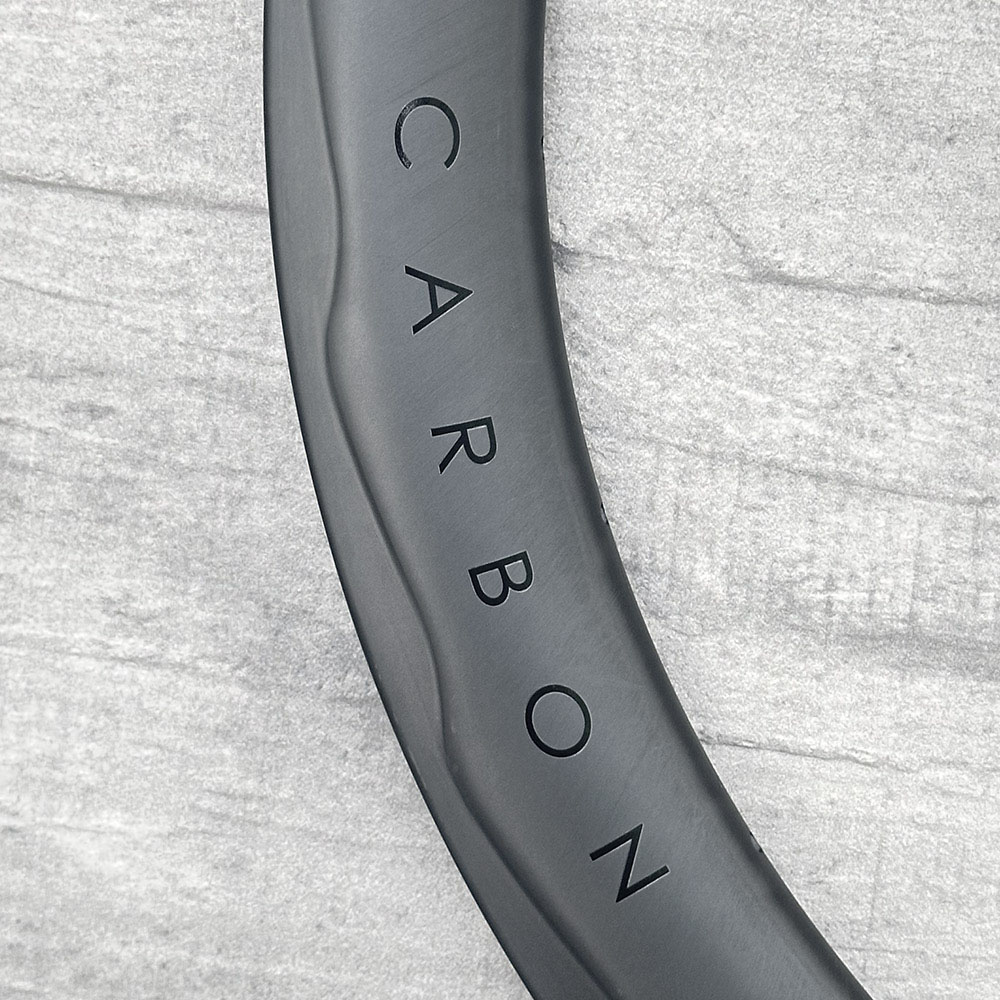

For the first time we apply a new appearance design to the road bike carbon fiber rim —— Ripple 50. When riding, especially at high speed, the wavy lines on the surface of this rim can disrupt the air flow around the rim, thereby reducing wind resistance and increasing speed. At the same time, this is also the first time we have applied the highest modulus carbon fiber material Toray T1100 to this bike rim, further reducing weight and improving rigidity and quality.

Basic

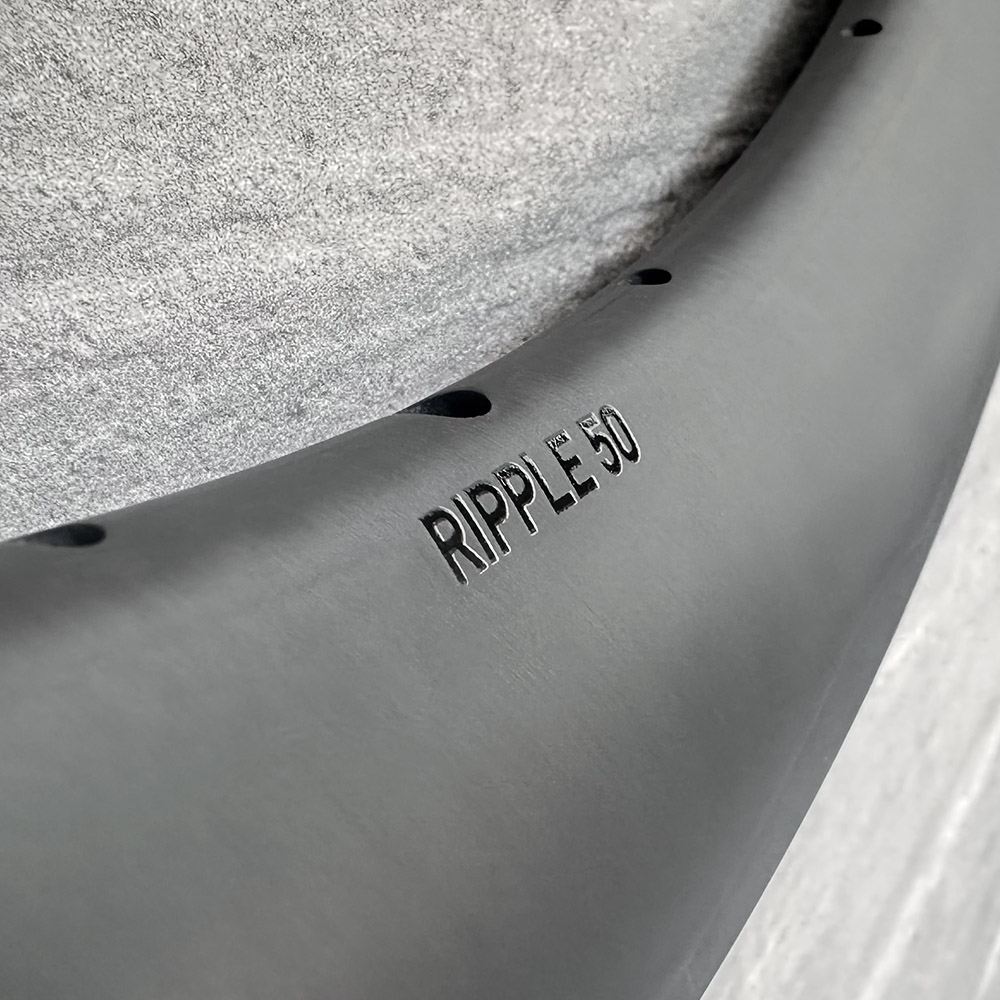

Model: Ripple 50
Rim Type: Road · Gravel
Materials: Toray T700 + T1100 Carbon Fiber
Brake Interface: Disc Brake
Edition: Supreme Edition
ASTM Classification: Condition 3
Warranty: 5 Years
Release Time: May 2025

Specification

Size: 700C
ERD (Effective Rim Diameter): 540mm
Drillings: 16. 18. 20. 21. 24. 28. 32
External Width: 32.6mm
Internal Width: 24mm
Rim Height: 50mm
Weight: 360g
Valve Hole Diameter: 6.5mm (Presta)
Spoke Holes Diameter: 4.5mm
Assembly Hole Diameter: 7.5mm
Drain Holes: Optional
Tubeless Compatible: Yes
Tubeless Ready: Optional
Strength: 100J <UCI, no tire>

Recommendation

Tire Size: 28 ~ 53mm Road | 28 ~ 40mm Cyclocross | 28 ~ 60mm Gravel
Tire Pressure: 30 ~ 90psi Road | 25 ~ 54psi Cyclocross | 27 ~ 79psi Gravel
Spoke Tension: 100 ~ 130kgf
Max System Weight: 144Kg
Ideal Valve Stem Length: 62mm

Appearance

Carbon Weave: UD
Finish: Free Coating | Matte | Glossy

Application

application: Road. Triathlon. Cyclocross. Dirt. Gravel and Adventure riding.

Best Feature

Feature 1: 1. Material Upgrade: Toray T1100 Aerospace Grade Carbon Fiber Added.
Feature 2: 2. Rim Surface Spoiler and Aesthetic Improvement Design.
Feature 3: 3. New Specially Designed Layer-Up Structure Making Rim Light and Strong.

Reviews (0)

Write a review

Your Name

Your Review

Rating Bad Good

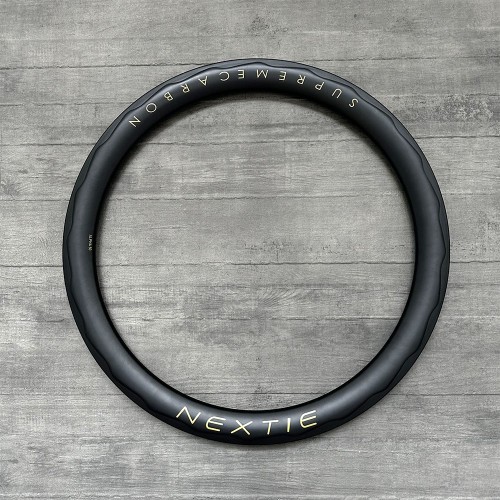

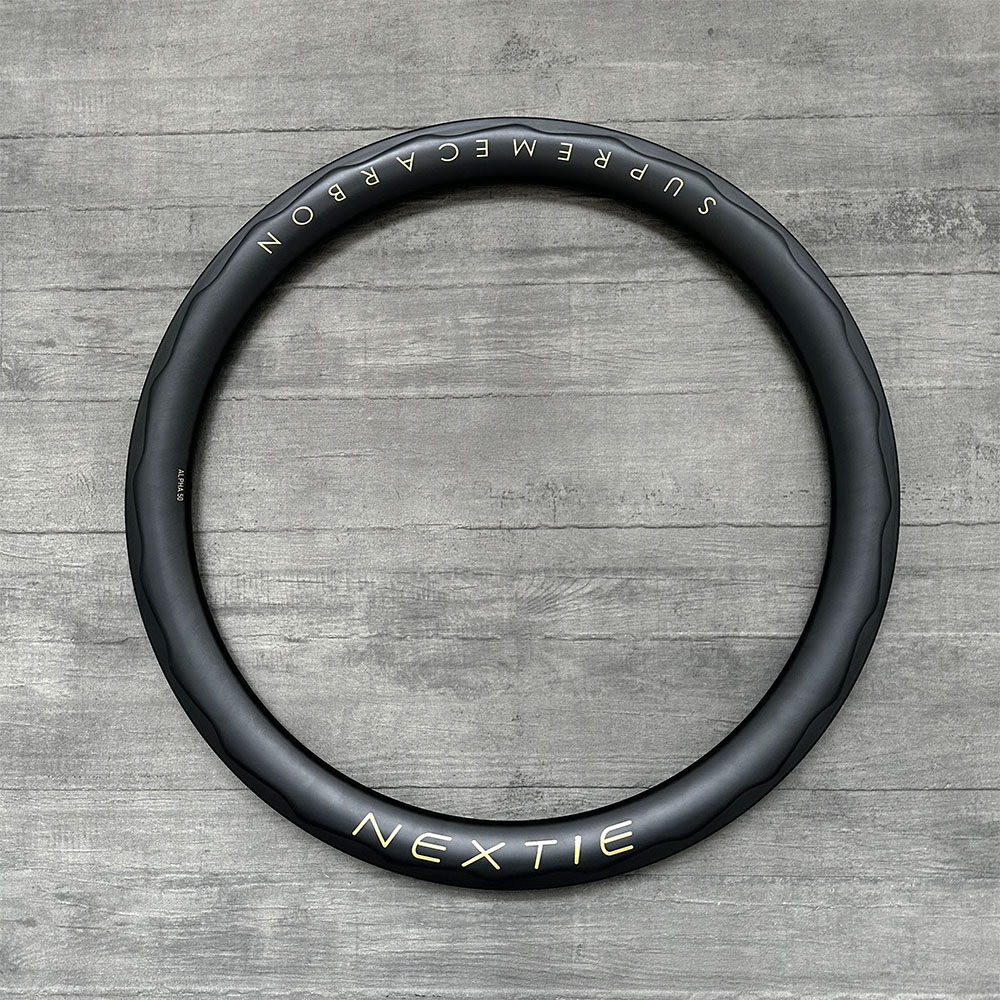

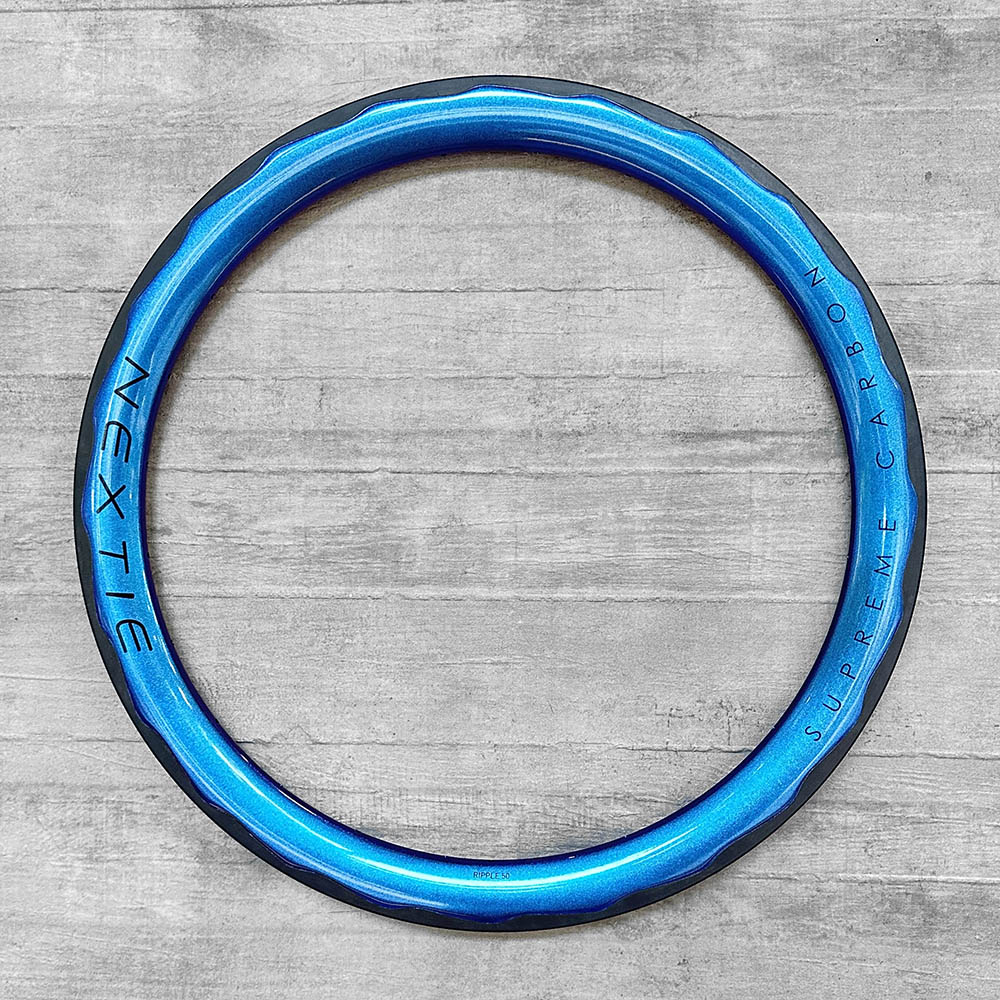

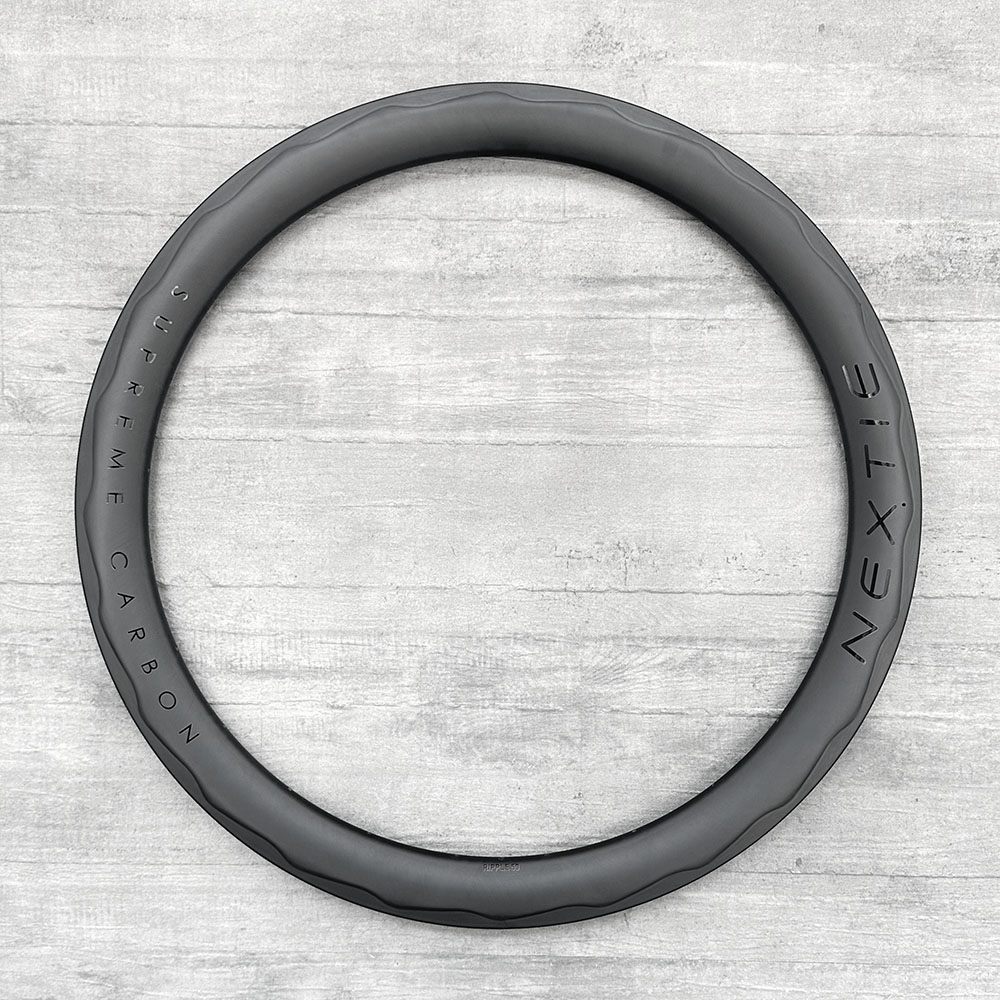

[Ripple 50] Supreme Edition All Road Bicycle Carbon Rim 50mm 360g
