Supreme Road Bicycle Carbon Rim —— Ripple 50 Wavy-lines

Supreme Road Bicycle Carbon Rim —— Ripple 50 Wavy-lines

Posted by: NEXTIE Post: 19/07/2025 View: 168 Comments: 0

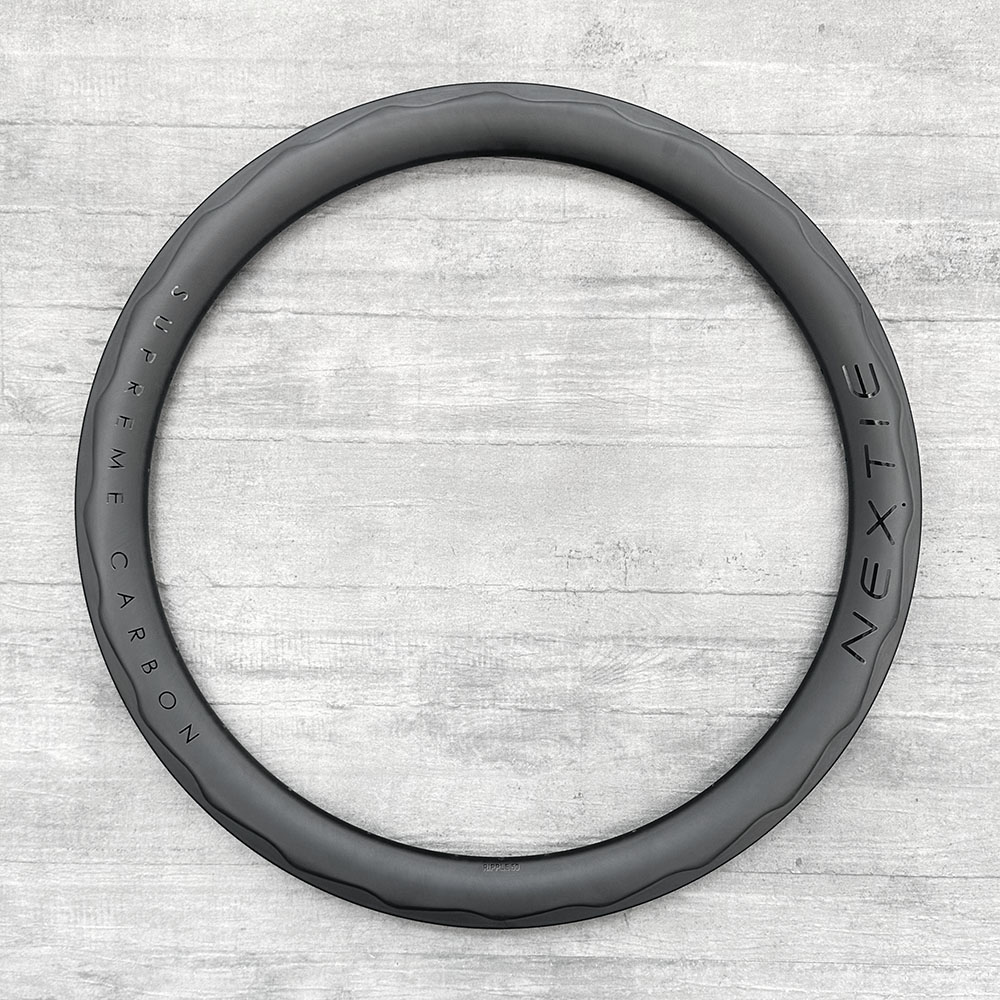

For the first time we apply a new appearance design to the road bike carbon fiber rim —— Ripple 50. When riding, especially at high speed, the wavy lines on the surface of this rim can disrupt the air flow around the rim, thereby reducing wind resistance and increasing speed. At the same time, This is also the first time we apply Toray T1100 carbon fiber to manufacture road bike rims. Toray T1100 generally has a higher tensile strength than T800 or T1000 carbon fiber. The addition of T1100 carbon fiber material provides us with a foundation to further reduce the rim weight.

1. Material Upgrade: Toray T1100 Aerospace Grade Carbon Fiber Added, Rim Gets Lighter.

Ripple 50 pioneers the use of Toray T1100 aerospace-grade carbon fiber as its main structural material, making rim much stronger. This is the first time we apply Toray T1100 carbon fiber to manufacture road bike rims. As we know, Toray T1100 generally has a higher tensile strength than T800 or T1000 carbon fiber. The addition of T1100 carbon fiber material provides us with a foundation to further reduce the rim weight.

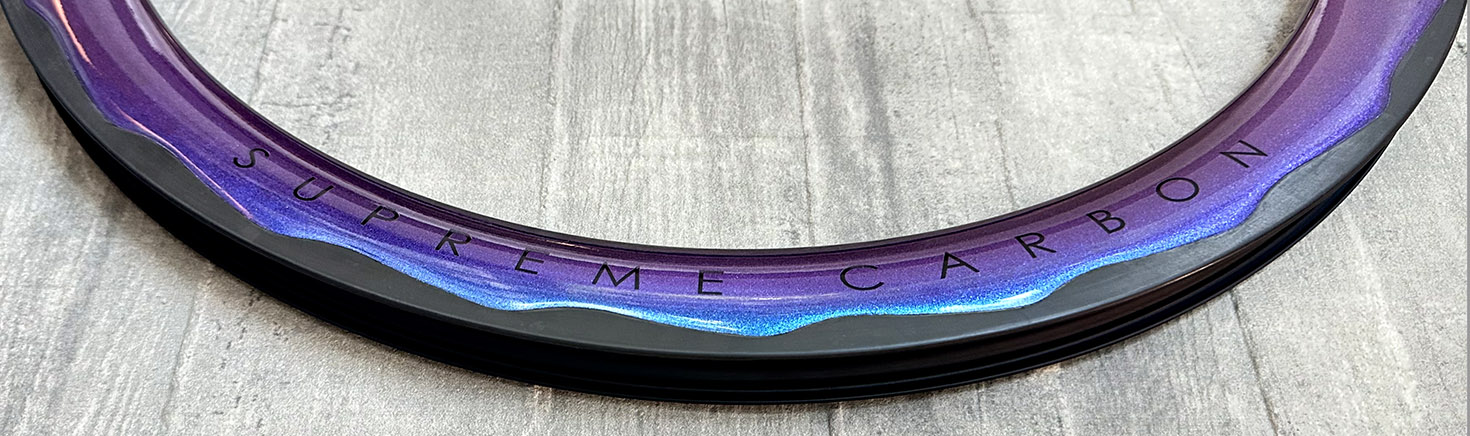

2. Rim Surface Spoiler and Aesthetic Improvement Design: Wavy Lines.

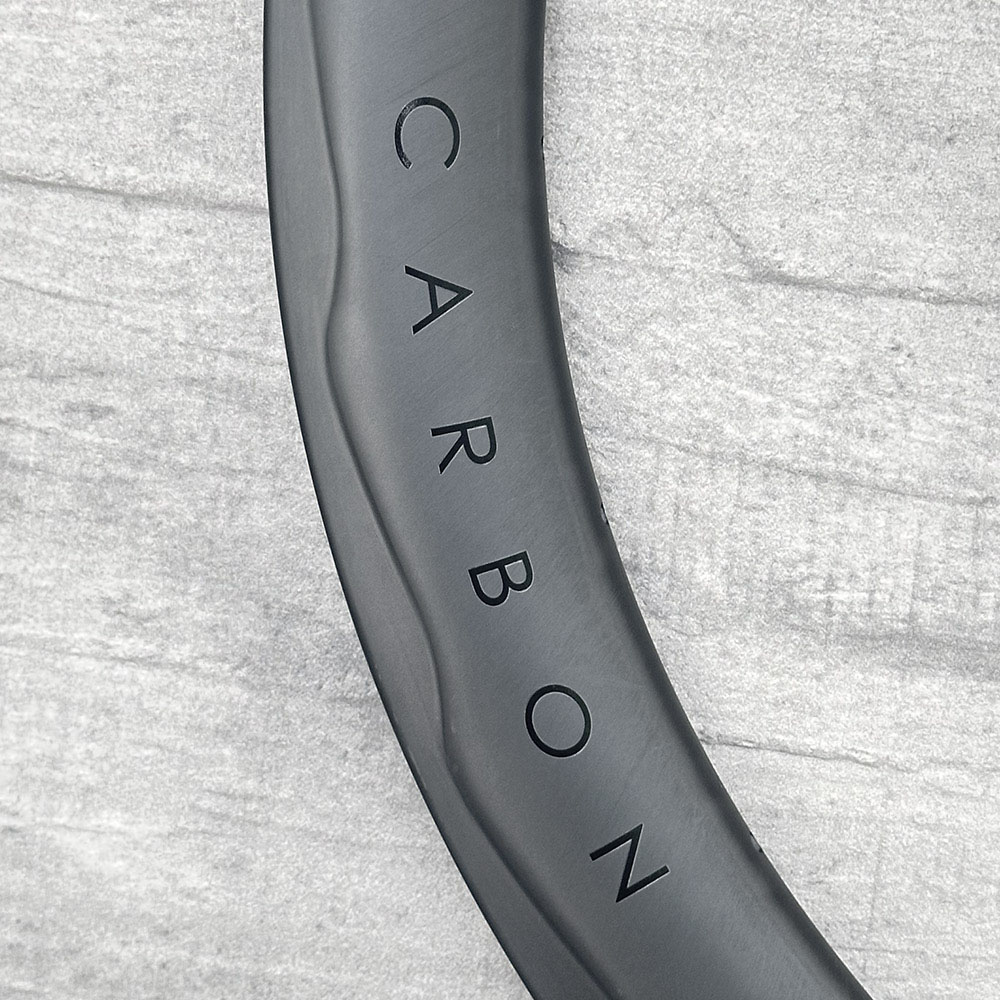

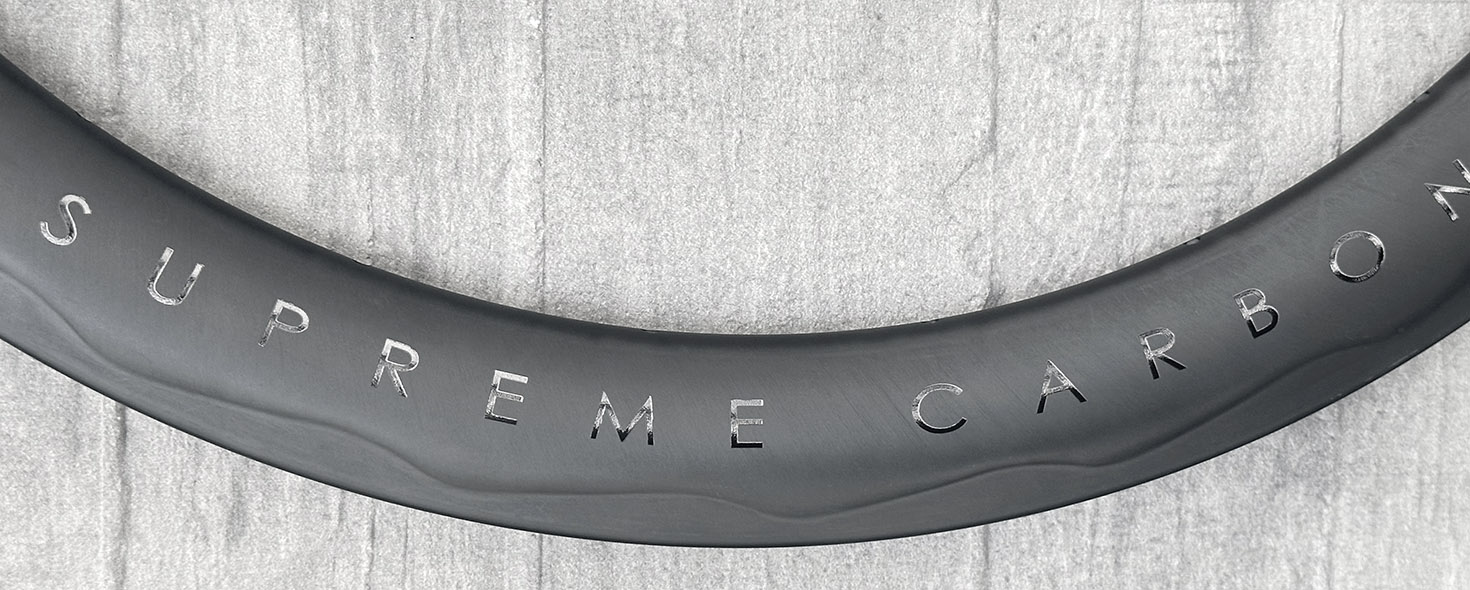

For the first time we apply a new appearance design to the road bike carbon fiber rim —— Ripple 50. When riding, especially at high speed, the wavy lines on the surface of this rim can disrupt the air flow around the rim, thereby reducing wind resistance and increasing speed.


3. Newest Layer-up Structure: All-wrapping Technology for Main Carbon Fiber Structure Make Rim Stronger.

All-wrapping Technology (AWT) for main carbon fiber structure applied on Ripple 50 rim further improves the stability and stiffness. AWT ensures the integrity of the carbon fiber material, thereby ensuring the rim's stability and stiffness. AWT is also applied on our road bike rims of Alpha series and Ocean series.


4. Highly Strict Technical Test Methods — 100J (UCI test condition).

We applied the UCI test conditions to test Ripple 50 carbon rim. The impact test result was 100J, which is a high value for a road bike rim. This is much higher than the UCI's qualified strength standard for road bicycle rims. IMPACT TEST VIDEO.


This rim could be used for Road. Triathlon. Cyclocross. Dirt. Gravel and Adventure riding.. The tire size for this model of rim is recommended at 28 ~ 53mm Road | 28 ~ 40mm Cyclocross | 28 ~ 60mm Gravel. The tire pressure is recommended at 30 ~ 90psi Road | 25 ~ 54psi Cyclocross | 27 ~ 79psi Gravel.


Positive Stiffness Test

Experimental Rim
Ripple 50 · 357g · 24Holes
Result Reference: ≥ 100 N/mm
Date 2025.04.24
Testing Items
Tension / Force
Result - Deformation | Stiffness Value
Result Determination
Positive Stiffness 1
50 kgf
2.34 mm | 209.4 N/mm
PASS
Positive Stiffness 2
50 kgf
2.24 mm | 218.8 N/mm
PASS
Positive Stiffness 3
50 kgf
2.24 mm | 218.8 N/mm
PASS

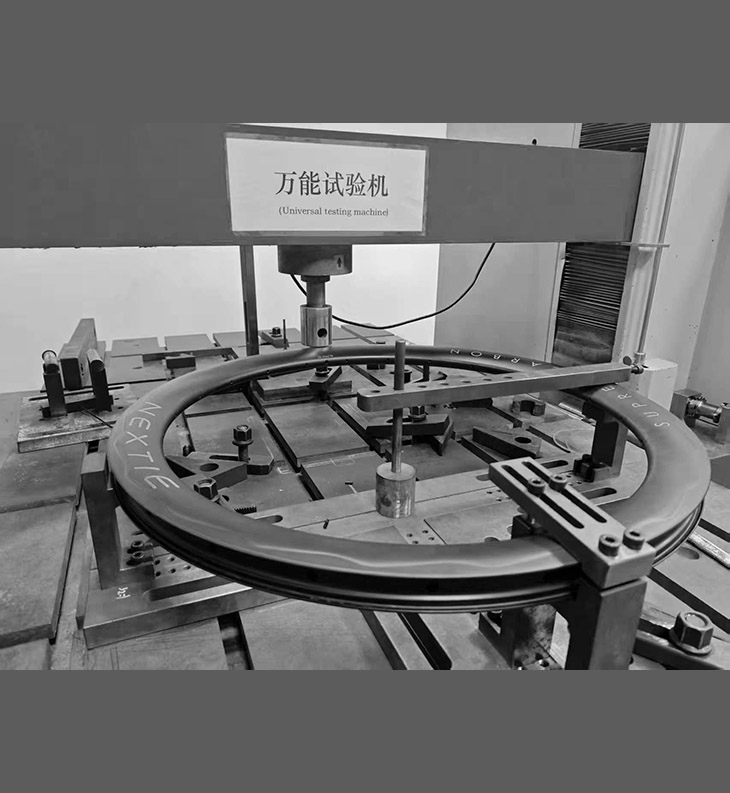

Lateral Stiffness Test

Experimental Rim
Ripple 50 · 357g · 24Holes
Result Reference: ≥ 6 N/mm
Date 2025.04.24
Testing Items
Tension / Force
Result - Deformation | Stiffness Value
Result Determination
Lateral Stiffness 1
20 kgf
15.88 mm | 12.3 N/mm
PASS
Lateral Stiffness 2
20 kgf
15.75 mm | 12.4 N/mm
PASS
Lateral Stiffness 3
20 kgf
15.78 mm | 12.4 N/mm
PASS

Spoke Tension Test

Experimental Rim
Ripple 50 · 355g · 24Holes
Result Reference: 300 kgf no cracks or deformation
Date 2025.04.24
Testing Items
Tension / Force
Result
Result Determination
Spoke Hole 1
300 kgf
no cracks or deformation
PASS
Spoke Hole 2
300 kgf
no cracks or deformation
PASS
Spoke Hole 3
300 kgf
no cracks or deformation
PASS
Spoke Hole 4
300 kgf
no cracks or deformation
PASS
Spoke Hole 5
300 kgf
no cracks or deformation
PASS
Spoke Hole 6
300 kgf
no cracks or deformation
PASS

Impact Test

Experimental Rim
Ripple 50 · 355g · 24Holes · Spoke Tension 130kgf
Date 2025.04.24
Testing Items
Test Conditions (UCI)
Impact Strength
Result Determination
Impact Test 1
Drop Hammer 23Kg · Drop Height 355mm
80 J
PASS
Impact Test 2
Drop Hammer 23Kg · Drop Height 399mm
90 J
PASS
Impact Test 3
Drop Hammer 23Kg · Drop Height 443mm
100 J
PASS
Impact Test 4
Drop Hammer 23Kg · Drop Height 488mm
110 J
FAILED

Product Information

Basic
Model: Ripple 50
Rim Type: Road · Cyclocross · Gravel
Materials: Toray T700 + T1100 Carbon Fiber
Brake Interface: Disc Brake
Edition: Supreme Edition
ASTM Classification: Condition 3
Warranty: 5 Years
Release Time: May 2025
Specification
Size: 700C
BSD (Bead Seated Diameter): 622mm
ERD (Effective Rim Diameter): 540mm
Drillings: 16. 18. 20. 21. 24. 28. 32
External Width: 32.6mm
Internal Width: 24mm
Rim Height: 50mm
Weight: 360g
Valve Hole Diameter: 6.5mm (Presta)
Spoke Holes Diameter: 4.5mm
Spoke Holes Angle: Axial 8° | Radial 5°
Assembly Hole Diameter: 7.5mm
Drain Holes: Optional
Tubeless Compatible: Yes
Tubeless Ready: Optional
Strength: 100J <UCI condition>
Recommendation
Tire Size: 28 ~ 53mm Road | 28 ~ 40mm Cyclocross | 28 ~ 60mm Gravel
Tire Pressure: 30 ~ 90psi Road | 25 ~ 54psi Cyclocross | 27 ~ 79psi Gravel
Spoke Tension: 110 ~ 130kgf
Max System Weight: 150Kg
Ideal Valve Stem Length: 62mm
Appearance
Carbon Weave: UD
Finish: Free Coating | Matte | Glossy
Application
Road. Triathlon. Cyclocross. Dirt. Gravel and Adventure riding.
