Name: Alpha 36S Wheelset – 29" Carbon Cross Country Mountain Wheelset from 868g
Brand: NEXTIE
SKU: NXT-AL36S-WS
Price: 1345.00 USD
Availability: InStock

Specification

Basic

Model: Alpha 36S Wheelset
Type: Mountain Bike Cross Country
Brake Interface: Disc Brake
Holes: 28 front + 28 rear
Edition: Supreme Edition (Alpha)
ASTM Classification: Condition 3
Including: Complete Wheelset + Tubeless Valve Stems + Tubeless Tape
Warranty: 5 Years
Release Time: February 2025

Specifications

Size: 29"
Wheelset Weight: From 868g
Rim Finish: UD, Free-Coating
Rim Model: Alpha 36S front + Alpha 36S rear
Valve Hole Diameter: 6.5mm Presta
Hubs: NEXTIE Rollingstar. DT Swiss. Onyx Vesper.
Drain Holes: Optional
Spokes: Sapim CX-Ray, Carbon Spokes
Nipples: Sapim Polyax Secure Lock (Aluminum)
Tubeless Compatible: Yes
Tubeless Ready: Optional

Recommendation

Tire Size: 2.0" ~ 2.75"
Tire Pressure: 22 ~ 32psi
Spoke Tension: 120 ~ 130kgf
Max System Weight: 150Kg
Ideal Valve Stem Length: 36mm

Discipline

Discipline: Cross Country (XCO, XCM, XCC), Marathon, Endurance Cross Country, Trail

Best Features

Feature 1: 1. Advanced Single-Point (ASP) Reinforcement at Spoke Holes and Valve Stem Hole, Resulting in Rims that are Stronger and Lighter.
Feature 2: 2. Material Breakthrough: Toray T1100 + T1000 Aerospace Grade Carbon Fiber.
Feature 3: 3. 3rd-Generation Layer-up Structure.
Feature 4: 4. Highly Strict Technical Test Methods — 105J for 28Holes <Pointed Hammer, 25psi>.
Feature 5: 5. 23mm Low-Profile Optimization for Riding Comfort and Tubeless-Ready.

Description

Introduction

NEXTIE offers a full line of custom bike carbon rims for mountain bicycle wheels, providing tailor-made solutions to meet your specifications. We have years of experience in wheel-building, and we cater to the needs of each customer. In our inventory, we offer different sizes carbon fiber mountain bicycle rims.

At NEXTIE, we build each wheel with precision and care, you can be confident that you are getting a high quality custom bicycle wheelset when you buy from us.

If you are interested in customizing your bike with new and stylish rims, the experts at NEXTIE are ready to make your bike look great and improve your performance on the trails. We have been serving the cycling community since 2013, and all our custom bike rims are made here in China.

Carbon Bicycle Wheel Assembly Mountain Bicycles

Wheelset Weight Reference

868g : Alpha 36S (220g) + DT180 EXP hubs + Carbon Spokes Oval #5 + Alloy Nipples

1058g : Alpha 36S (220g) + DT180 EXP hubs + Sapim CX-Ray + Alloy Nipples

Carbon Mountain Rims

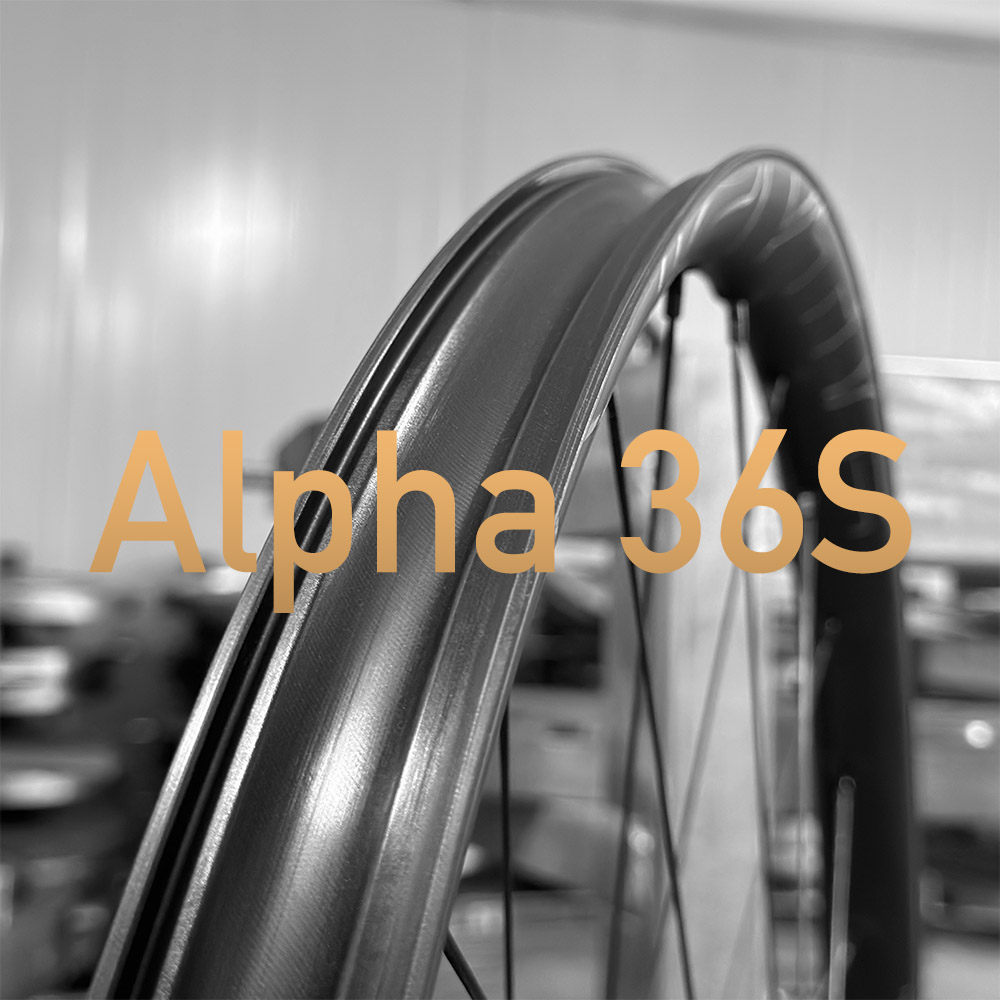

Alpha 36S Carbon Rims. Supreme Cross Country. 220g 28Holes.

Hubs

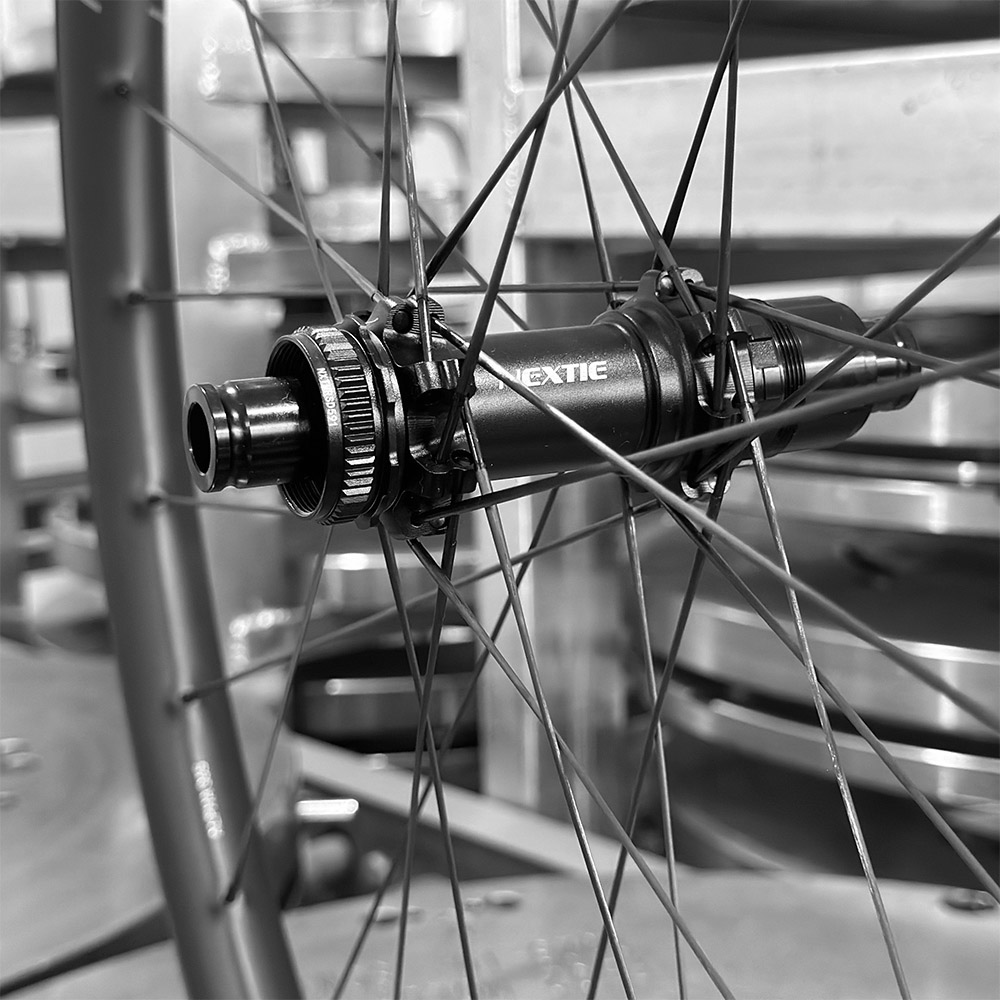

NEXTIE Rollingstar II, DT Swiss 180 EXP / 240 EXP / 240 DEG, Onyx Vesper.

Spokes

Carbon Spokes

Spokes Sapim CX-Ray 4.25g/pcs (260 mm)

Spokes Titanium T-Force Aero 3.6g/pcs (260mm)

Spokes Titanium T-Max Aero 2.9g/pcs (260mm)

Nipples

Sapim Polyax (Secure Lock, 14mm) Alloy in color black, red, orange, gold, blue, green, purple, pink, silver and brass in color black.

Tubeless Ready Wheels

Carbon Fiber Wheelset Tubeless Ready

Advantage 1 - Lighter: Since no tubeless tape wrapping on the Tubeless Ready wheels, the weight of the wheel goes lighter than the weight of common wheel with tape wrapped;

Advantage 2 - Stronger: No holes drilling on rim bed (except valve holes) and the carbon fibers not being damaged, the rim bed would be kept integral and the strength increases;

Advantage 3 - Safe: Tubeless Ready wheels no risk of air leaking from the rim bed, the cycling stays safe and the journey could be longer than riding bike with common wheels.

Disadvantage: Needs professional maintenance in case of spoke breaking

Note: Tubeless Ready wheels could also be mounted with tubes.
