[Jungle Fox II] 29" Mountain Bicycle Carbon Rim 52mm 530g
-
Unit Price: 220.0 USD
- Price in reward points: 21000
![[Jungle Fox II] 29" Mountain Bicycle Carbon Rim 52mm 530g](https://www.nextie.com/image/cache/catalog/2022-products/mtb-29-standard/JF52-1000x1000.jpg "[Jungle Fox II] 29\" Mountain Bicycle Carbon Rim 52mm 530g")
![[Jungle Fox II] 29" Mountain Bicycle Carbon Rim 52mm 530g](https://www.nextie.com/image/cache/catalog/2022-products/mtb-29-standard/JF52-plus-1000x1000.JPG "[Jungle Fox II] 29\" Mountain Bicycle Carbon Rim 52mm 530g")
Introduction
In the year of 2015 when users had a new demand for the width of mountain rims, expecting a wider mountain rim to install 3.0" or wider tires, we developed the Jungle Fox series. The designe of Jungle Fox series borrowed from Black Eagle rim design concept, the cross section is a stable support structure of a triangle, this design has great support for the strength of the ultra-wide rim. In the second year, we improved the Jungle Fox and increased the thickness of the rim lip to 3.5mm, the strength is further improved. The performance and aesthetics have reached an unprecedented fusion. Thus Jungle Fox II has become the most classic Plus mountain bike rim series.

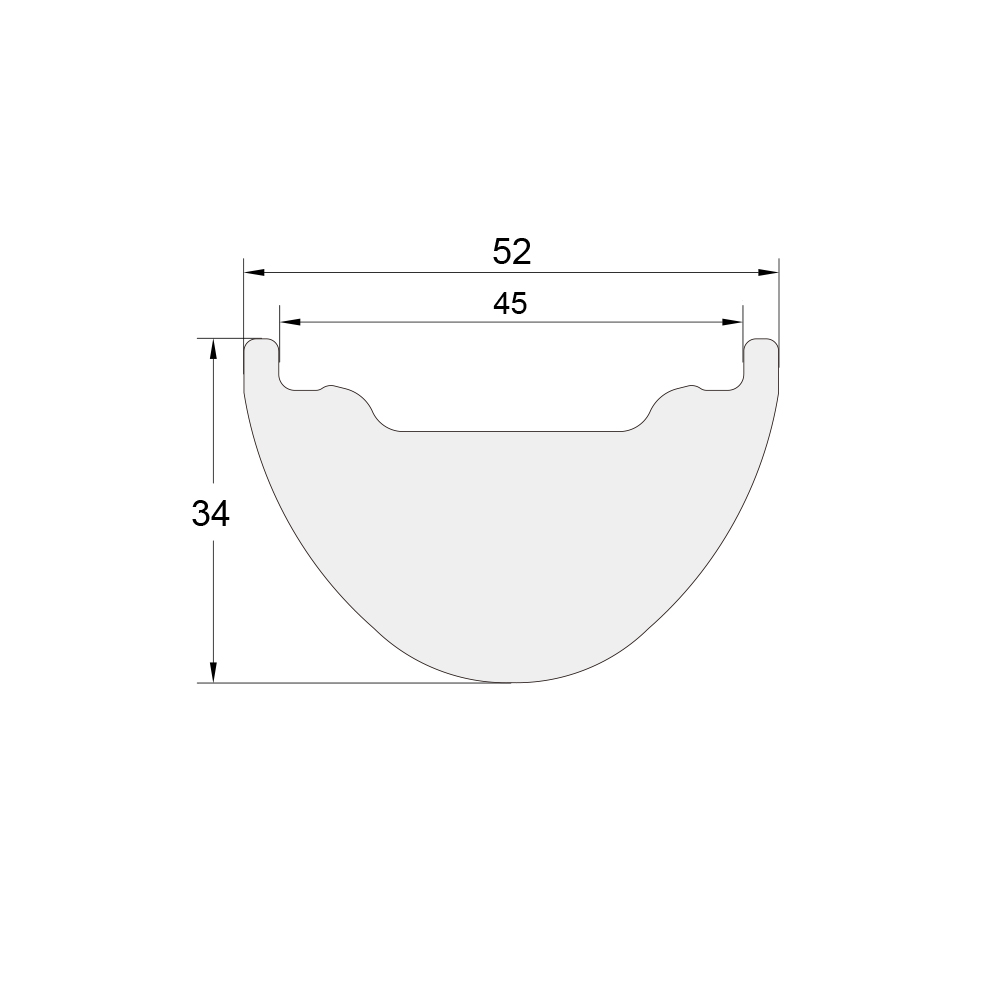

The weight of model NXT29JF52 is 530g. The profile drawing of this rim is as below.
This rim could be used for Trail, Enduro and Freeride riding. The tire size for this model of rim is recommended at 2.6" ~ 3.6". The tire pressure is recommended at 15 ~ 26 psi.
What's in the Box
Carbon Rim(s)
Documentation
Learn more
What is the difference between weaves UD, 3K and 12K?
What is Free Coating Manufacturing (FCM) process?
What is the Difference between Ultralight, Premium and Standard Edition?
What is ERD (Effective Rim Diameter)?
How much spoke tension should I use?
Basic
- Code: NXT29JF52-II
- Rim Type: Mountain Bike Plus (Clincher, Hookless)
- Materials: Toray T700 Carbon Fiber
- Edition: Standard Edition
- ASTM Classification: Condition 5
- Warranty: 2 Years
Specification
- Size: 29"
- BSD (Bead Seated Diameter): 622mm
- ERD (Effective Rim Diameter): 573mm
- Drillings: 28, 32
- External Width: 52mm
- Internal Width: 45mm
- Rim Height: 34mm
- Weight: 530g
- Valve Hole Diameter: 6.5mm (Presta)
- Spoke Holes Diameter: 4.5mm
- Spoke Holes Angle: ± 6°
- Assembly Hole Diameter: 7.5mm
- Drain Holes: No (leave a note if you prefer Drain Holes)
- Tubeless Compatible: Yes
Recommendation
- Tire Size: 2.6" ~ 3.6"
- Tire Pressure: 15 ~ 26psi
- Spoke Tension: 100 ~ 130kgf
- Max System Weight: 160Kg
Appearance
- Carbon Weave Availability: UD / 3K / 12K
- Finish: Free Coating / Matte / Glossy
Application
- application: Trail, All Mountain, Big Mountain, Freeride, Enduro (and Super Enduro)
