[Standard XC] 29" Mountain Bicycle Carbon Rim 27mm 365g

  • Unit Price: 160 USD

  • Price in reward points: 16000
  • [Standard XC] 29" Mountain Bicycle Carbon Rim 27mm 365g


Introduction

In the year of 2015 we designed and developed the RM27, RM30, AM35 and AM40 series of carbon fiber mountain rims. These four mountain rims incorporate aerodynamic design concepts, which are beautiful in appearance and extremely strong. While, because of its unique rounded design, it is difficult to reduce the weight. Nonetheless, they have remained a user favorite mountain rims over the years and have become a classic mountain rim range of NEXTIE's. The RM series and AM series have become the proud products of NEXTIE. They are the starting point for our progressive development and production of lighter and stronger carbon fiber mountain bike rims

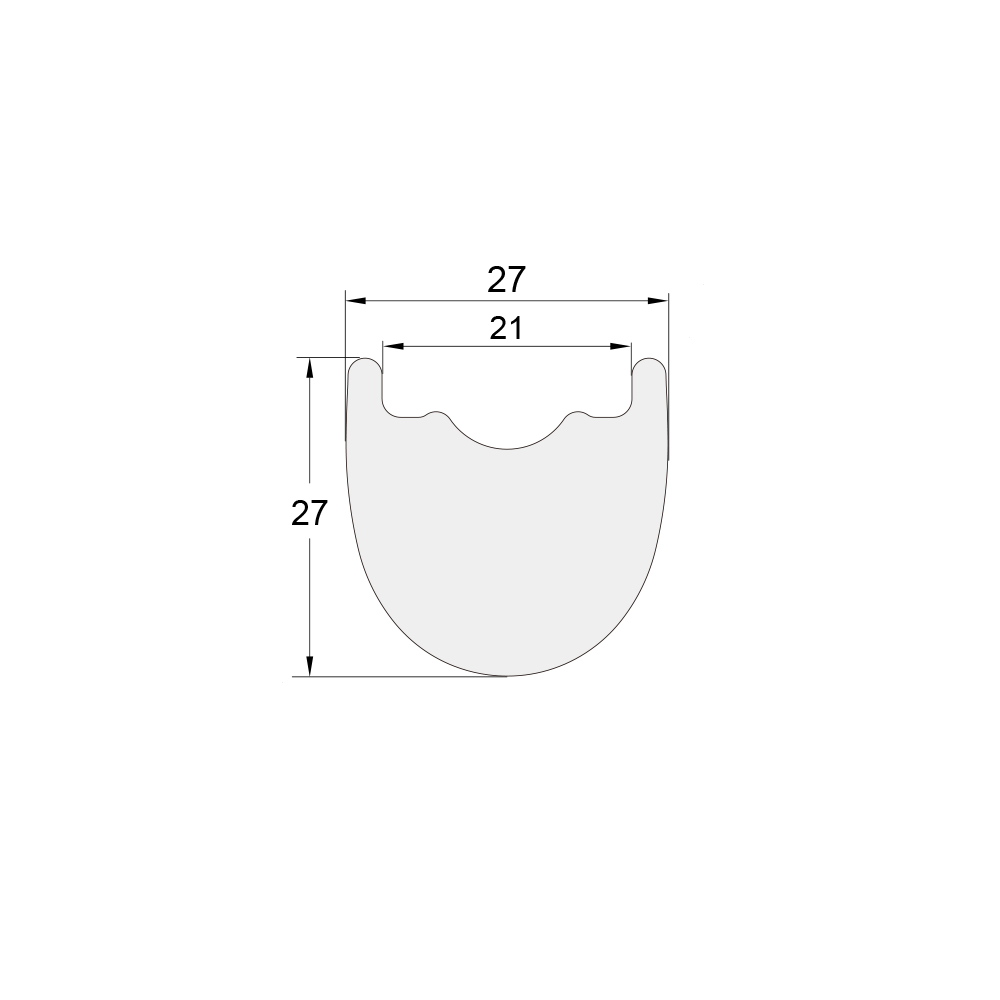

The weight of model NXT29RM27 is only 365g. The profile drawing of this rim is as below.

Mountain Bicycle Carbon Rim Profile Drawing NXT29RM27

The tire size for this model of rim is recommended at 1.5"~2.0". The tire pressure is recommended at 30 ~ 60 psi.


What's in the Box

Carbon Rim(s)

Documentation


Learn more

What is the difference between weaves UD, 3K and 12K?

What is Free Coating Manufacturing (FCM) process?

What is the Difference between Ultralight, Premium and Standard Edition?

What is ERD (Effective Rim Diameter)?

How much spoke tension should I use?


Basic

  • Code: NXT29RM27
  • Rim Type: Mountain Bike (Clincher, Hookless)
  • Materials: Toray T700 Carbon Fiber
  • Tubeless Compatible: Yes
  • Drillings: 28, 32
  • Warranty: 2 Years

Specification

  • Size: 29"
  • BSD (Bead Seated Diameter): 622mm
  • ERD (Effective Rim Diameter): 586mm
  • External Width: 27mm
  • Internal Width: 21mm
  • Rim Height: 27mm
  • Weight: 365g
  • Valve Hole Diameter: 6.5mm (Presta)
  • Spoke Holes Diameter: 4.5mm
  • Spoke Holes Angle: ± 6°
  • Assembly Hole Diameter: 7.5mm

Recommendation

  • Spoke Tension: 80~130kgf
  • Tire Size: 1.5" ~ 2.0"
  • Tire Pressure: 30 ~ 60psi
  • Load Limit (One Wheel): 110kg

Appearance

  • Carbon Weave Availability: UD / 3K / 12K
  • Finish: Free Coating / Matte / Glossy

Application

  • application: XC / Marathon / Trail
