[Frameset F2] Fat Bike Carbon Fiber Frameset 150/197mm from 1380g
![[Frameset F2] Fat Bike Carbon Fiber Frameset 150/197mm from 1380g](https://www.nextie.com/image/cache/catalog/2022-products/Frameset/fatbike/NXT-F2-1-1000x1000.png "[Frameset F2] Fat Bike Carbon Fiber Frameset 150/197mm from 1380g")
![[Frameset F2] Fat Bike Carbon Fiber Frameset 150/197mm from 1380g](https://www.nextie.com/image/cache/catalog/2022-products/Frameset/fatbike/NXT-F2-3-1000x1000.png "[Frameset F2] Fat Bike Carbon Fiber Frameset 150/197mm from 1380g")
![[Frameset F2] Fat Bike Carbon Fiber Frameset 150/197mm from 1380g](https://www.nextie.com/image/cache/catalog/2022-products/Frameset/fatbike/NXT-F2-4-1000x1000.png "[Frameset F2] Fat Bike Carbon Fiber Frameset 150/197mm from 1380g")
![[Frameset F2] Fat Bike Carbon Fiber Frameset 150/197mm from 1380g](https://www.nextie.com/image/cache/catalog/2022-products/Frameset/fatbike/NXT-F2-2-1000x1000.png "[Frameset F2] Fat Bike Carbon Fiber Frameset 150/197mm from 1380g")
Craft your ride — it starts with your choices above.
Specification
Basic
- Code: F2
- Materials: Carbon Fiber
- Warranty: 3 years
- Includings: Frame, Fork, Headset, 2 x Thru Axles, 1 x Hanger

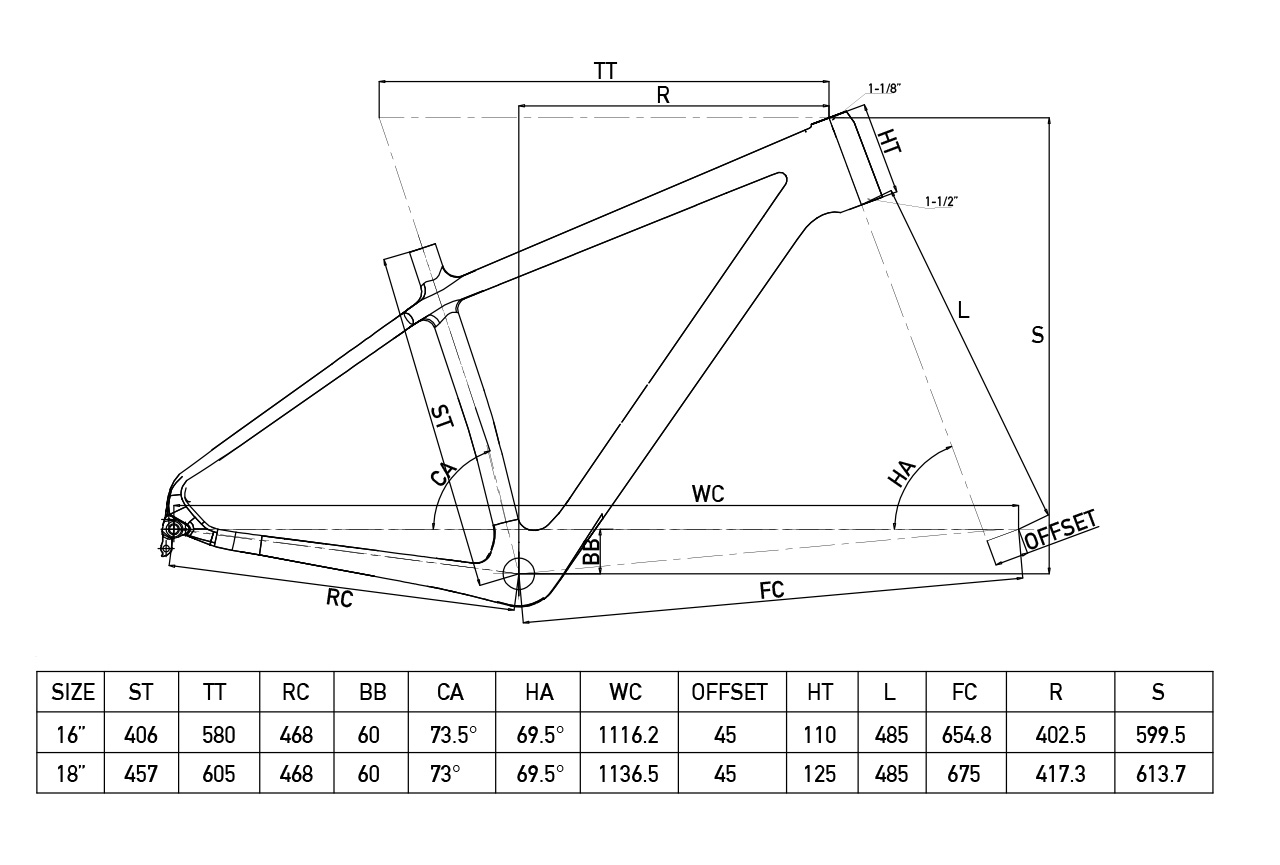

Dimensions
- Bottom Bracket: BSA(100mm)
- Brake: Disc Brake (160mm)
- Brake and Derailleur line: Fully Hidden
- Headtube: 1 1/2”-1 1/8”
- Max Load: 250kg
- Seat post: 31.6mm
- SeatClamp: 37mm
- Size: 16", 18"
- Tyre clearance: Max 26" x 4.8"
- Spacing: Front 15x150mm, Rear 12x197mm
- Wheel Size: 26"
- Weight: Frame 1380g (16") / 1440g (18"); Fork 720g
Discipline
Description
Introduction
While fat bikes are generally not as agile as bikes with narrower tires, the 26 inch wheel size on a hardtail frame provides a good compromise between agility and stability, making it suitable for a responsive bike on the trails.
