[Xiphias] 27.5" Fat Bike Single-Wall Carbon Rim 95mm 600g
-
Unit Price: 360 USD
- Price in reward points: 36000
Introduction
Fat bikes are quite similar to regular bikes, but have much wider rims and larger tires that provide enough support to ride on the snow or sand. Fat bike is especially suitable for winter cycling. With wide tires, you could easily float on top of the snow and make your way through the winter.

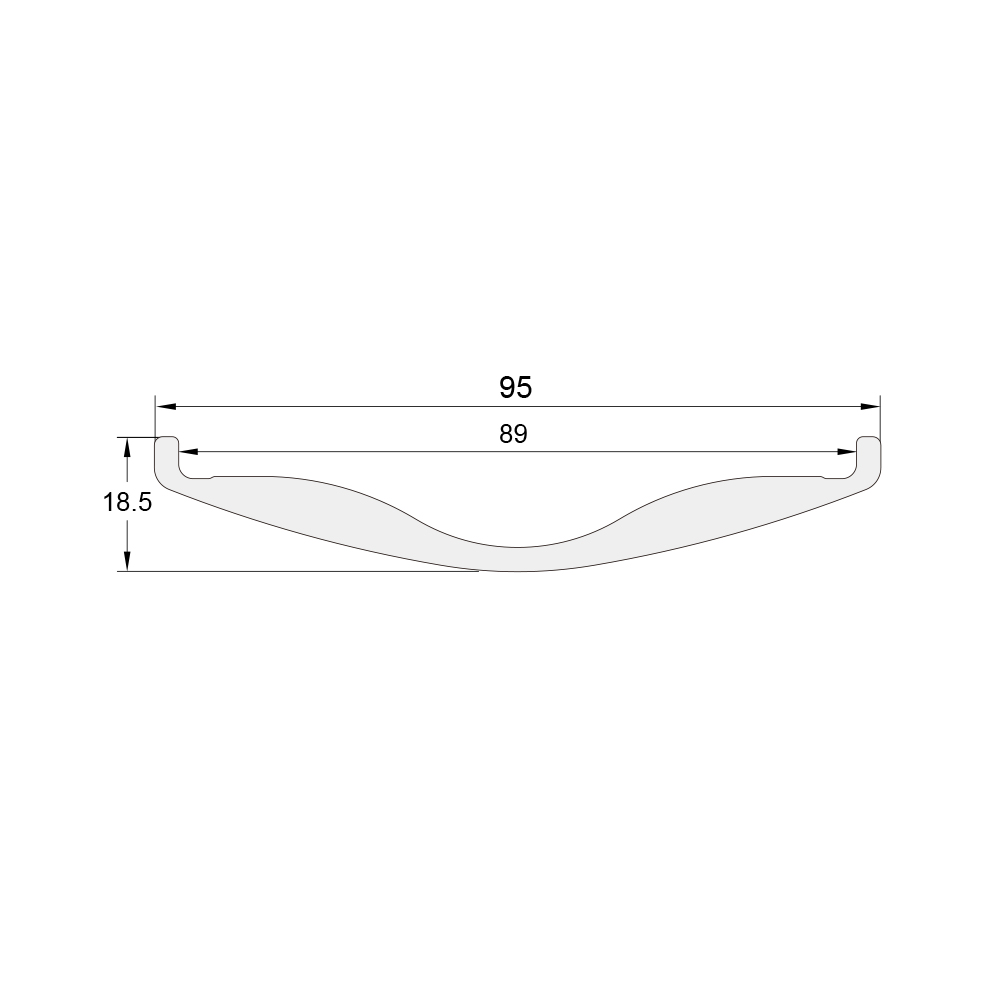

This single wall carbon fiber fat bike rim NXT27XS95 was designed and developed in 2019. It's super light, onlg 600g weight. Its design concept refers to our well-known Wild Dragon double wall fat bike rim. It is strong due to the stable construction of triangular cross-section. To make the wheel assembly more perfect, the spoke holes of the rim are drilled at an angle. The axial direction angle and the radial direction angle are 8 degrees and 6 degrees. The profile drawing is as below.
The tire size for this model of rim is recommended at 4.2" ~ 5.5". The tire pressure is recommended at 5 ~ 15 psi.
Design features
Width 95mm fits more forms of cycling and keeps riding in great stability;
Deep channel would help you easily install and take off a tire;
Small bead socket could lock tire tightly and help run tubeless perfectly;
Aero roof surface (triangle-like shape) could easily shed the dirt or mud, better to release weight during cycling;
Section of triangle's inherent feature of stability on rim design keeps rim in strong performance.
What’s in the Box
Carbon Rim(s)
Documentation
Learn more
What is the difference between weaves UD, 3K and 12K?
What is Free Coating Manufacturing (FCM) process?
What is the Difference between Ultralight, Premium and Standard Edition?
What is ERD (Effective Rim Diameter)?
How much spoke tension should I use?
Basic
- Name: Xiphias
- Code: NXT27XS95
- Rim Type: Fat Bike (Clincher, Hookless)
- Materials: Toray T700 + T800 Carbon Fibers
- Tubeless Compatible: Yes
- Edition: Premium Edition
- ASTM Classification: Condition 5
- Warranty: 3 Years
- Release Time: April 2019
Specification
- Size: 27.5"
- Axial Direction Angle: 8 degree
- BSD (Bead Seated Diameter): 584mm
- ERD (Effective Rim Diameter): 568mm
- External Width: 95mm
- Radial Direction Angle: 6 degree
- Rim Height: 17.5mm
- Weight: 600g
- Valve Hole Diameter: 6.5mm (Presta)
- Spoke Holes Diameter: 4.5mm
- Spoke Holes Offset: +/-5mm
- Assembly Hole Diameter: 7.5mm
Recommendation
- Tire Size: 4.2" ~ 5.5"
- Tire Pressure: 5 ~ 15psi
- Spoke Tension: 100 ~ 130kgf
- Max System Weight: 177Kg
Appearance
- Weave: UD / 12K
- Finish: Free-Coating, Matte, Glossy
Application
- application: Trail, All Mountain, Enduro, Snow, Sand, Down Hill, Dirt Jump
- Notes: This rim is designed for tubeless tires. Inner tubes are ok, but the tire must have tubeless beads for safe retention.
