[Handlebar] #01 Carbon Fiber Handlebar for Road Bicycle
![[Handlebar] #01 Carbon Fiber Handlebar for Road Bicycle](https://www.nextie.com/image/cache/catalog/3-side/Accessory/Handlebar/IMG_1468-1000x1000.jpg "[Handlebar] #01 Carbon Fiber Handlebar for Road Bicycle")
![[Handlebar] #01 Carbon Fiber Handlebar for Road Bicycle](https://www.nextie.com/image/cache/catalog/3-side/Accessory/Handlebar/IMG_0626-1000x1000.jpg "[Handlebar] #01 Carbon Fiber Handlebar for Road Bicycle")
![[Handlebar] #01 Carbon Fiber Handlebar for Road Bicycle](https://www.nextie.com/image/cache/catalog/3-side/Accessory/Handlebar/IMG_1470-1000x1000.jpg "[Handlebar] #01 Carbon Fiber Handlebar for Road Bicycle")
![[Handlebar] #01 Carbon Fiber Handlebar for Road Bicycle](https://www.nextie.com/image/cache/catalog/3-side/Accessory/Handlebar/IMG_1471-1000x1000.jpg "[Handlebar] #01 Carbon Fiber Handlebar for Road Bicycle")
Specification
Basic
- Code: NXTHB01
- Materials: Carbon Fiber
Dimensions
- Stem Length: 90mm / 110mm
- Steer Diameter: 28.6mm
- Weight: 310g (90mm x 430mm)
- Reach: 77mm
- Drop: 142mm
- Angle: 73°
Appearance
Discipline
Description
Introduction
This carbon fiber handlebar is a classic integrated handlebar for road bicycle, with a stem length of 90mm and 110mm, bar length of 430mm. The weight is from 310g. The body is made up of carbon fibers and the bolts are materials of alluminium alloy.

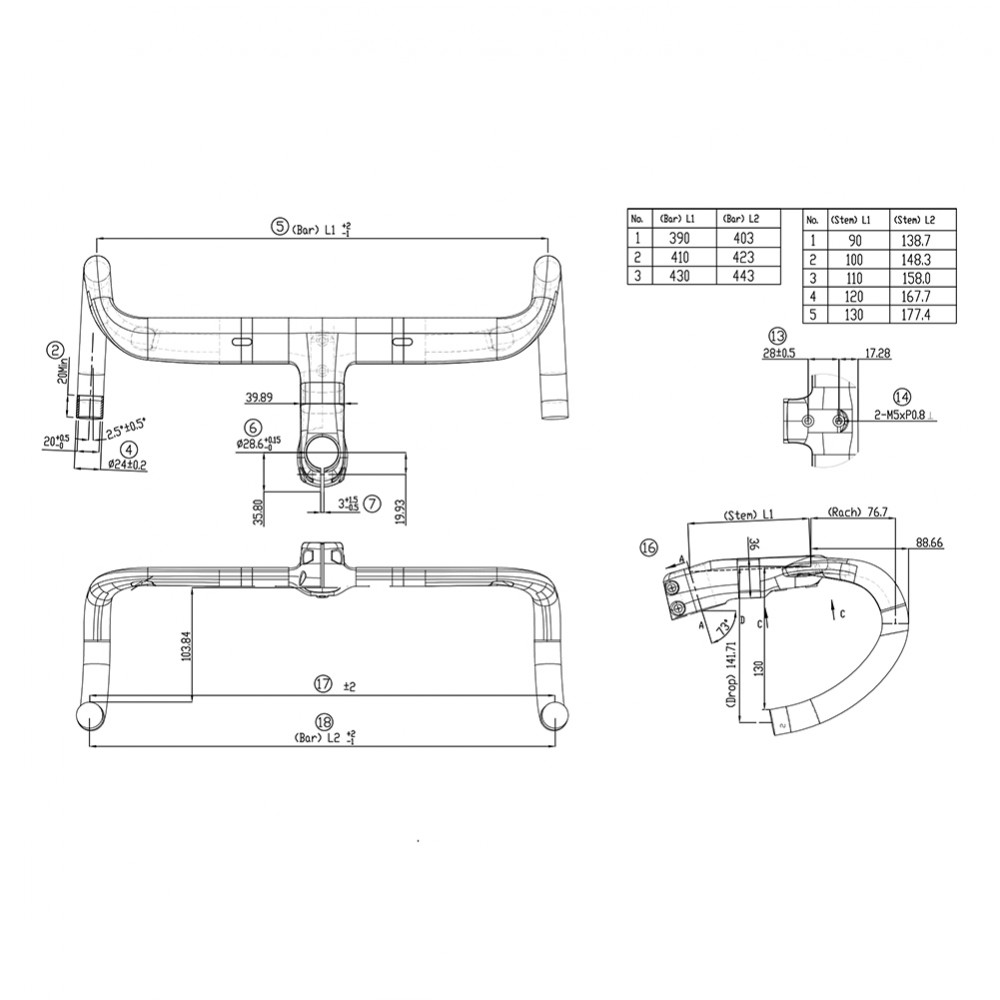

The profile drawing of this handlebar is as below.
Design Features
High quality toray T700 carbon fiber material;
Superior fatigue and impact strength.
What's in the Box
Carbon handlebar
Documentation
