[Premium Cross Country] Alpha 29" Mountain Bicycle Carbon Rim 35mm 280g

  • Unit Price: 279 USD

  • Price in reward points: 27900
  • [Premium Cross Country] Alpha 29" Mountain Bicycle Carbon Rim 35mm 280g


Introduction

The carbon fiber bicycle industry has been innovating and advancing all the time. Being lighter and stronger has always been the pursuit of the professional bicycle industry, especially for the mountain rims for XC (Cross Country) riding , where riders have extreme weight requirement.

In 2023, when designing and developing the Supreme Edition Alpha 35 rim (now Premium Edition), we tried to use different modulus carbon fiber materials and to apply a new stacking manufacturing technology. It brings an ultralight weight XC mountain bike rim, which weight is only 280g. Comparing to the premium edition rim like NXT29UM35 which is 325g, the Alpha 35 rim is so lighter. Here we do not make detailed public introductions to the materials and the stacking manufacturing techniques.

In the impact test without a tire mounted, the strength of the Alpha 35 reached 80J, which has already passed the test standard of the Premium Edition XC mountain rim. The specific impact test video can be watched here TEST VIDEO


This rim could be used for XC (Cross Country), Marathon and Trail riding. The tire size for this model of rim is recommended at 2.0" ~ 2.75". The tire pressure is recommended at 17 ~ 31 psi.


What's in the Box

Carbon Rim(s)

Documentation


Learn more

Basic

  • Name: Alpha 35U
  • Code: NXT29VM35U
  • Rim Type: Mountain Bike (Clincher, Hookless)
  • Materials: Carbon Fiber
  • Tubeless Compatible: Yes
  • Drillings: 24, 28, 32
  • Edition: Premium Edition
  • ASTM Classification: Condition 3
  • Warranty: 3 Years
  • Release Time: August 2023

Specification

  • Size: 29"
  • BSD (Bead Seated Diameter): 622mm
  • ERD (Effective Rim Diameter): 590mm

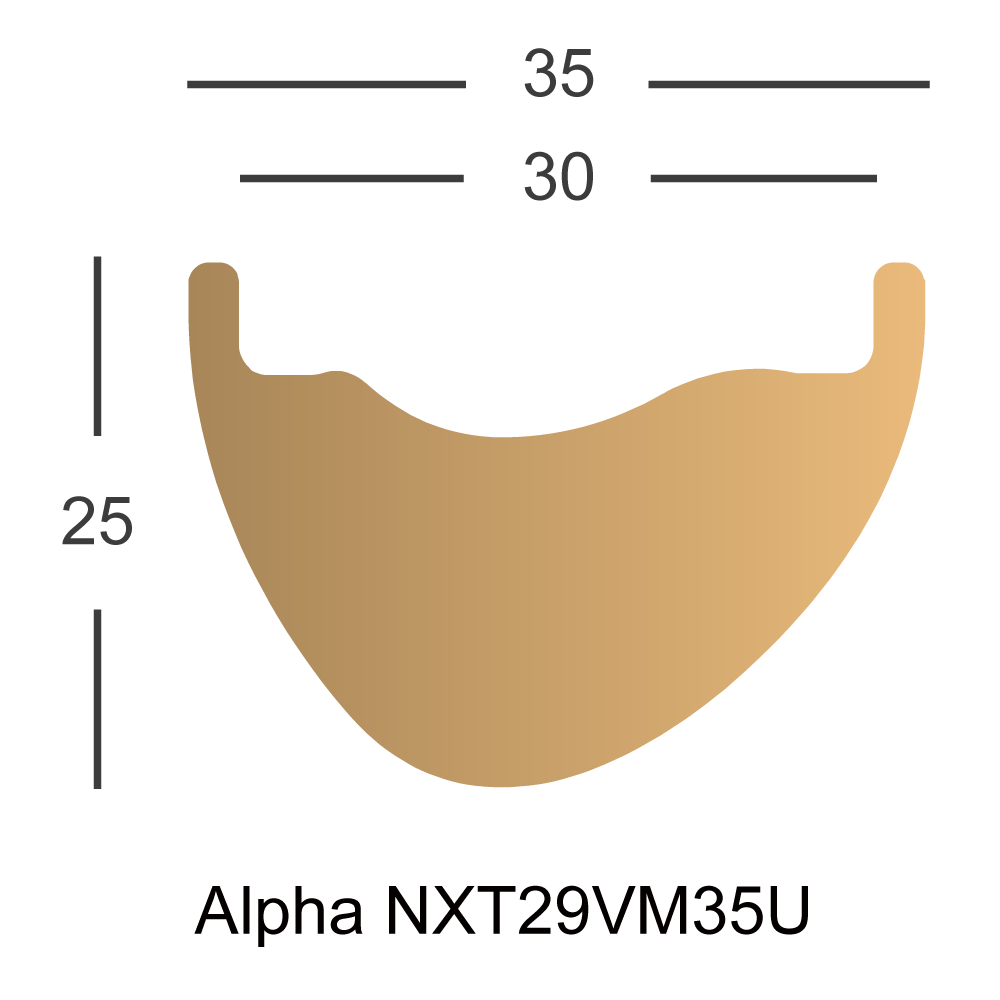

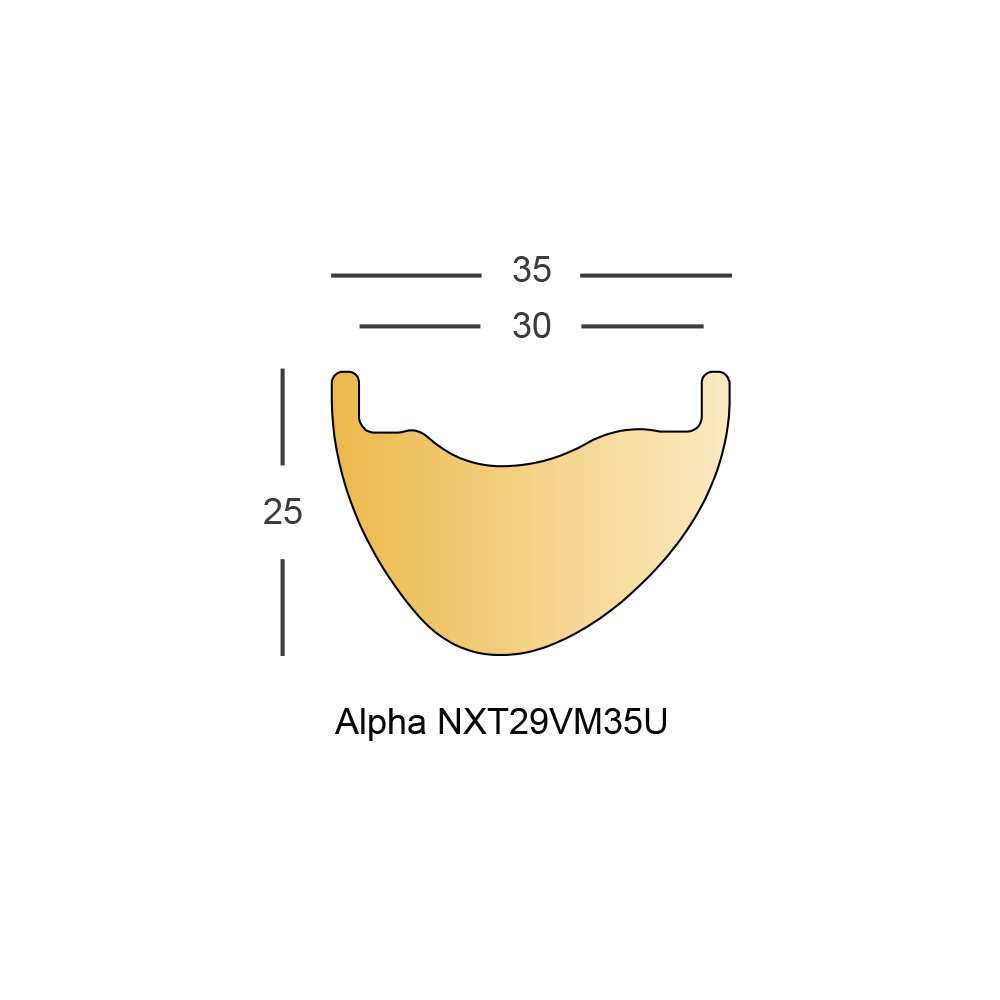

  • External Width: 35mm
  • Internal Width: 30mm
  • Rim Height: 25mm
  • Spoke Bed Offset: 2.6mm
  • Weight: 280g
  • Valve Hole Diameter: 6.5mm (Presta)
  • Spoke Holes Diameter: 4.5mm
  • Assembly Hole Diameter: 7.5mm
  • Rim Lip Thickness: 2.5mm
  • Strength: 80J (Flat Hammer, no tire)

Recommendation

  • Tire Size: 2.0" ~ 2.75"
  • Tire Pressure: 17 ~ 31psi
  • Spoke Tension: 100 ~ 130kgf
  • Max System Weight: 137Kg

Appearance

  • Weave: UD
  • Finish: Matte / Free Coating / Glossy

Application

  • application: Cross country, Marathon / endurance cross country / Trail
  • Notes: This rim is designed for tubeless or tubeless-ready tires only. Inner tubes are ok, but the tire must have tubeless beads for safe retention.
