[Xiphias] 26" Fat Bike Single-Wall Carbon Rim 65mm 425g
-
Unit Price: 320.0 USD
- Price in reward points: 32000
![[Xiphias] 26" Fat Bike Single-Wall Carbon Rim 65mm 425g](https://www.nextie.com/image/cache/catalog/2022-products/xiphias/xiphias-65-70-1000x1000.png "[Xiphias] 26\" Fat Bike Single-Wall Carbon Rim 65mm 425g")
Introduction
Fat bikes are quite similar to regular bikes, but have much wider rims and larger tires that provide enough support to ride on the snow or sand. Fat bike is especially suitable for winter cycling. With wide tires, you could easily float on top of the snow and make your way through the winter.

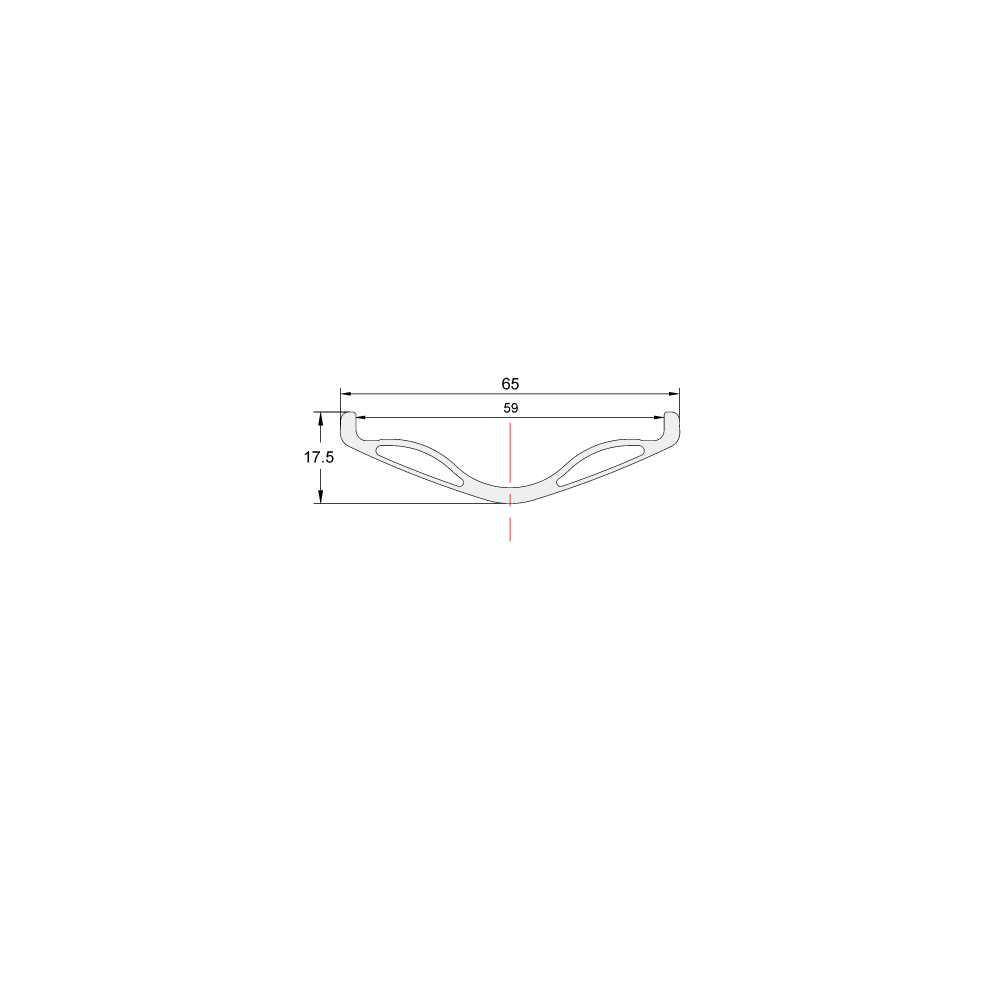

This single wall carbon fiber fat bike rim NXT26XS65 was designed and developed in 2018. To this day, it is still one of the lightest fat bike rim in the industry. The weight is onlg 425g. We name it Xiphias due to the lightweight feasture. Its design concept refers to our well-known Wild Dragon double wall fat bike rim. It is strong due to the stable construction of triangular cross-section. The profile drawing is as below.
The tire size for this model of rim is recommended at 3.2" ~ 4.5". The tire pressure is recommended at 8 ~ 20 psi.
Design features
Width 65mm fits more forms of cycling and keeps riding in great stability;
Deep channel would help you easily install and take off a tire;
Small bead socket could lock tire tightly and help run tubeless perfectly;
Aero roof surface (triangle-like shape) could easily shed the dirt or mud, better to release weight during cycling;
Section of triangle's inherent feature of stability on rim design keeps rim in strong performance.
What’s in the Box
Carbon Rim(s)
Documentation
Learn more
Pictures of Xiphias 65mm Wheels Shared by Customer.
What is the difference between weaves UD, 3K and 12K?
What is Free Coating Manufacturing (FCM) process?
What is the Difference between Ultralight, Premium and Standard Edition?
What is ERD (Effective Rim Diameter)?
How much spoke tension should I use?
Basic
- Name: Xiphias
- Code: NXT26XS65
- Rim Type: Fat Bike (Clincher, Hookless)
- Materials: Toray T700 + T800 Carbon Fibers
- Edition: Premium Edition
- ASTM Classification: Condition 4
- Warranty: 3 Years
- Release Time: September 2018
Specification
- Size: 26"
- Axial Direction Angle: 8 degree
- BSD (Bead Seated Diameter): 559mm
- ERD (Effective Rim Diameter): 544mm
- External Width: 65mm
- Radial Direction Angle: 6 degree
- Rim Height: 17.5mm
- Weight: 425g (Upgrade 2024)
- Valve Hole Diameter: 6.5mm (Presta)
- Spoke Holes Diameter: 4.5mm
- Spoke Holes Offset: +/-3mm
- Assembly Hole Diameter: 7.5mm
- Drain Holes: No
- Tubeless Compatible: Yes
Recommendation
- Tire Size: 3.2" ~ 4.5"
- Tire Pressure: 8 ~ 20psi
- Spoke Tension: 100 ~ 130kgf
- Max System Weight: 134Kg
- Ideal Valve Stem Length: 24mm
Appearance
- Carbon Weave: UD / 12K
- Finish: Free-Coating, Matte, Glossy
Application
- application: Trail, All Mountain, Enduro, Snow, Sand, Dirt
