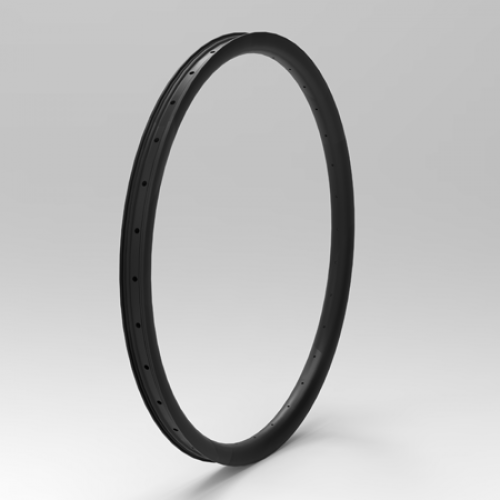

[Standard AM/Enduro] 27.5" Mountain Bicycle Carbon Rim 40mm 460g
-
Unit Price: 185.0 USD
- Price in reward points: 18500
![[Standard AM/Enduro] 27.5" Mountain Bicycle Carbon Rim 40mm 460g](https://www.nextie.com/image/cache/catalog/products/mtb-40mm/NXT27AM40-All-Mountain-Enduro-40mm-Width-Carbon-Fiber-27.5-inch-MTB-Clincher-Rim-Tubeless-Compatible-1000x1000.png "[Standard AM/Enduro] 27.5\" Mountain Bicycle Carbon Rim 40mm 460g")
Craft your ride — it starts with your choices above.
Specification
Basic
- Code: NXT27AM40
- Rim Type: Mountain Bike (Clincher, Hookless)
- Materials: Toray T700 Carbon Fiber
- Edition: Standard Edition
- ASTM Classification: Condition 4
- Warranty: 2 Years
Dimensions
- Size: 27.5" / 650B
- BSD (Bead Seated Diameter): 584mm
- ERD (Effective Rim Diameter): 539mm
- Drillings: 28, 32
- External Width: 40mm
- Internal Width: 34mm
- Rim Height: 32mm
- Weight: 460g (AM) / 490g (Enduro)
- Valve Hole Diameter: 6.5mm (Presta)
- Spoke Holes Diameter: 4.5mm
- Spoke Holes Angle: ± 6°
- Assembly Hole Diameter: 7.5mm
- Drain Holes: No (leave a note if you prefer Drain Holes)
- Tubeless Compatible: Yes
Appearance
- Carbon Weave Availability: UD / 3K / 12K
- Finish: Free Coating / Matte / Glossy
Recommendation
- Tire Size: 2.2" ~ 3.2"
- Tire Pressure: 20 ~ 32psi
- Spoke Tension: 100 ~ 130kgf
- Max System Weight: 136Kg
Discipline
- Discipline: Trail, All Mountain, Big Mountain, Freeride, Enduro (and Super Enduro)
Description
Introduction
In the year of 2015 we designed and developed the RM27, RM30, AM35 and AM40 series of carbon fiber mountain rims. These four mountain rims incorporate aerodynamic design concepts, which are beautiful in appearance and extremely strong. While, because of its unique rounded design, it is difficult to reduce the weight. Nonetheless, they have remained a user favorite mountain rims over the years and have become a classic mountain rim range of NEXTIE's. The RM series and AM series have become the proud products of NEXTIE. They are the starting point for our progressive development and production of lighter and stronger carbon fiber mountain bike rims

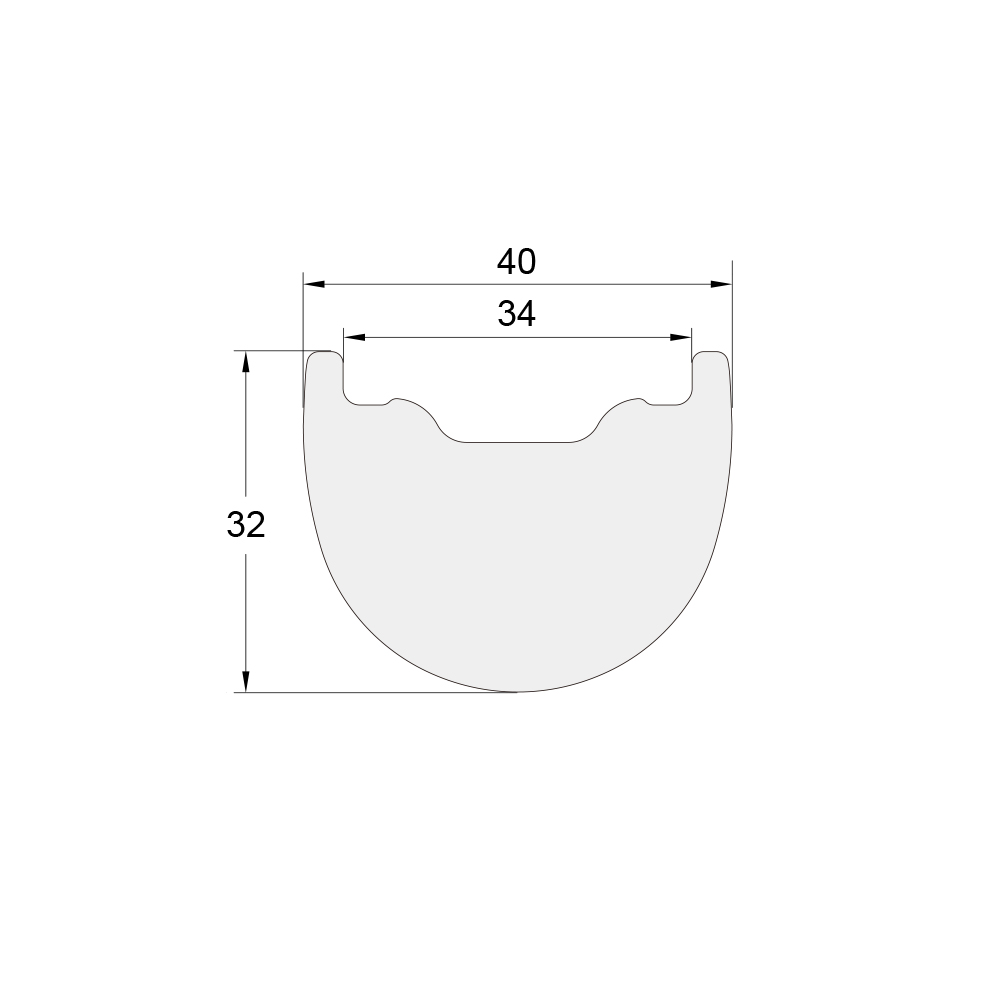

The weight of model NXT27AM40 is 460g. The profile drawing of this rim is as below.
This rim could be used for AM (All Mountain), Trail and Enduro riding. The tire size for this model of rim is recommended at 2.2" ~ 3.2". The tire pressure is recommended at 20 ~ 32psi.
What's in the Box
Carbon Rim(s)
Documentation
