Basic

• Name: Xiphias (Single Wall)
• Code: NXT26XS105 (PREMIUM)
• Rim Type: Clincher / Hookless
• Materials: Toray T700+T800 Carbon Fiber
• Tubeless Compatible: Yes
• Warranty: 3 Years

Specification

• Size: 26"
• Axial Direction Angle: 10 degree
• BSD (Bead Seated Diameter): 559mm
• ERD (Effective Rim Diameter): 544mm

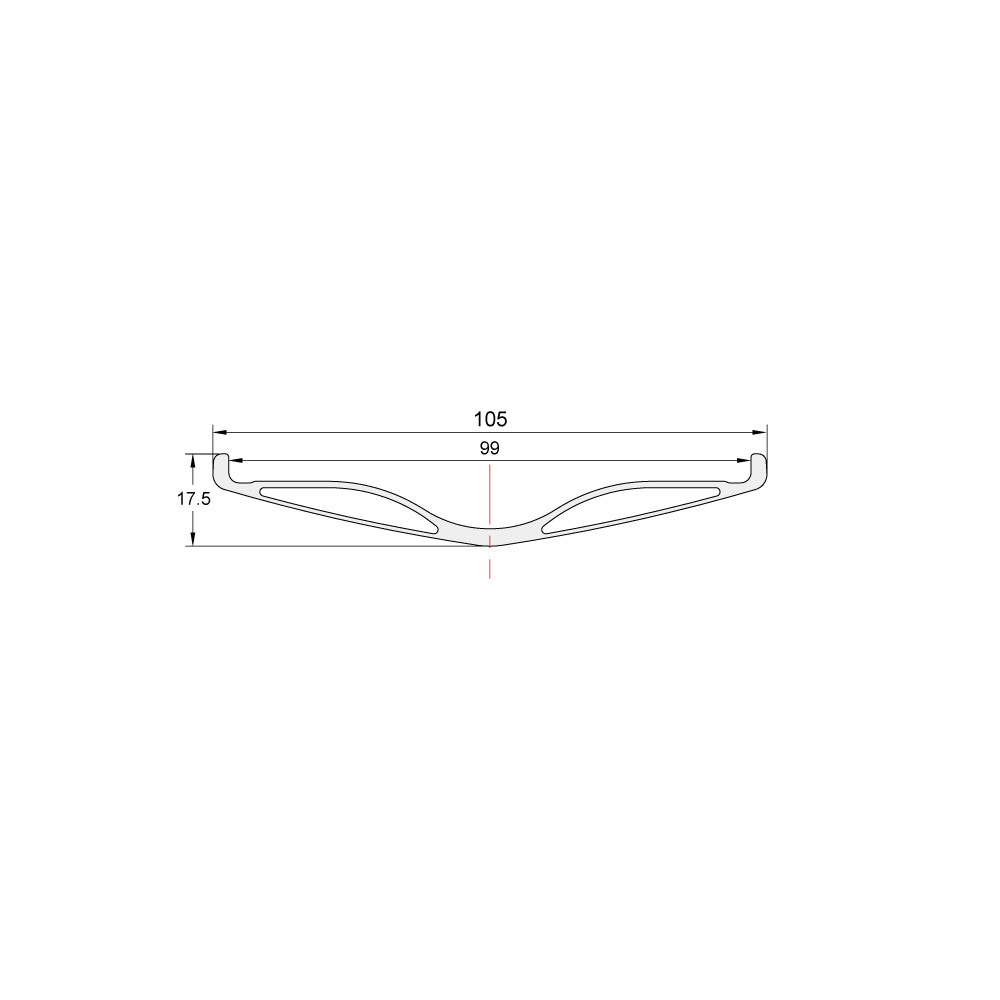

• External Width: 105mm
• Radial Direction Angle: 6 degree
• Rim Height: 17.5mm
• Weight: 595g
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Spoke Holes Offset: +/-3mm
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 80~130kgf
• Tire Size: 4.6” ~ 5.5"
• Spoke Nipple Length: 14mm
• Tire Pressure: 5-15psi
• Load Limit (One Wheel): 120kg

Appearance

• Weave: UD / 3K / 12K / Wave
• Finish: Matte / Glossy

Design Features

• first- Width: - Width 105mm fits more forms of cycling and keeps riding in great stability;
• third- Deep channel: - Deep channel would help you easily install and take off a tire;
• four- Small bead: - Small bead socket could lock tire tightly and help run tubeless perfectly;
• five- Aero roof: - Aero roof surface (triangle-like shape) could easily shed the dirt or mud, better to release weight during cycling;
• six- Section of: - Section of triangle's inherent feature of stability on rim design keeps rim in strong performance.

Application

• application: Enduro / Snow / Sand / Dirt and more
