[Standard AM] 27.5" Mountain Bicycle Carbon Rim 30mm 375g
-
Unit Price: 160.0 USD
- Price in reward points: 16000
![[Standard AM] 27.5" Mountain Bicycle Carbon Rim 30mm 375g](https://www.nextie.com/image/cache/catalog/products/mtb-30/30mm-Width-Carbon-Fiber-27.5-29-inch-Mountain-Bike-Clincher-Rim-Tubeless-Compatible-wheel-1000x1000.jpg "[Standard AM] 27.5\" Mountain Bicycle Carbon Rim 30mm 375g")
Introduction
In the year of 2015 we designed and developed the RM27, RM30, AM35 and AM40 series of carbon fiber mountain rims. These four mountain rims incorporate aerodynamic design concepts, which are beautiful in appearance and extremely strong. While, because of its unique rounded design, it is difficult to reduce the weight. Nonetheless, they have remained a user favorite mountain rims over the years and have become a classic mountain rim range of NEXTIE's. The RM series and AM series have become the proud products of NEXTIE. They are the starting point for our progressive development and production of lighter and stronger carbon fiber mountain bike rims

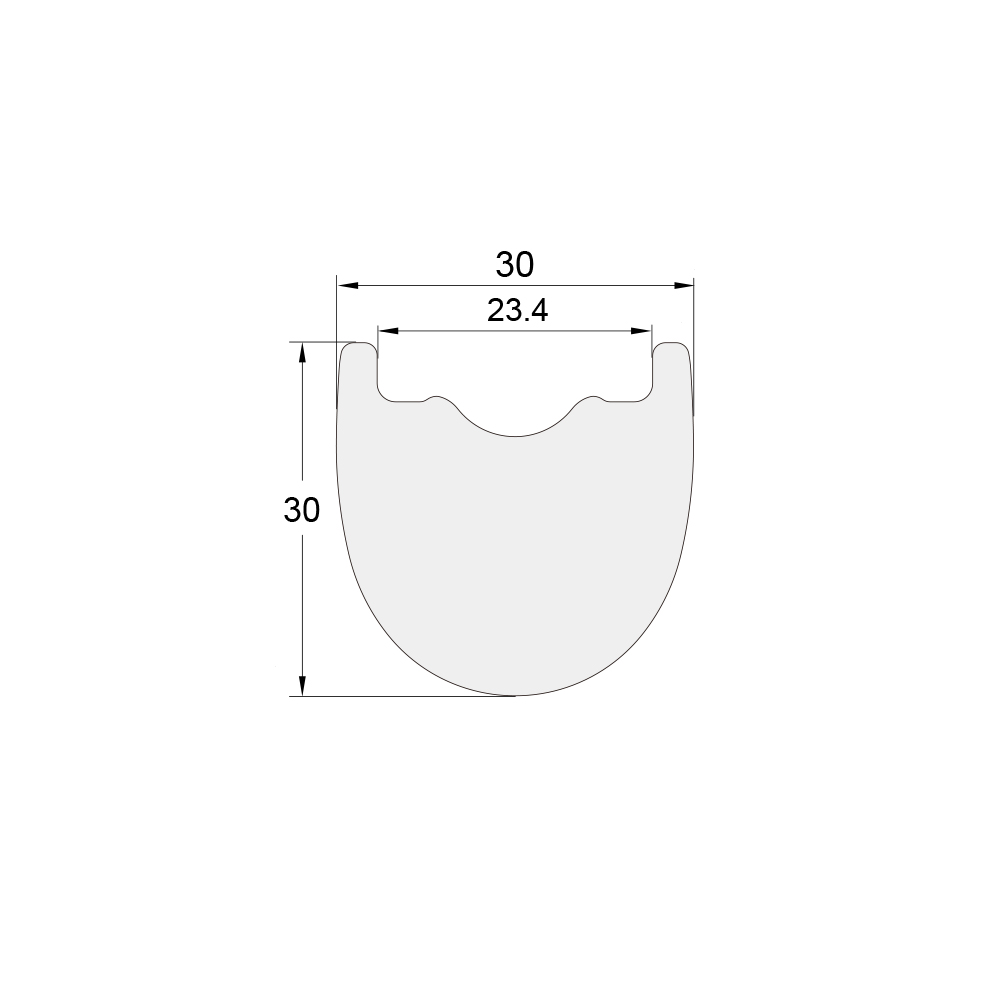

The weight of model NXT27RM30 is 375g. The profile drawing of this rim is as below.
This rim could be used for XC (Cross Country), AM (All Mountain) and Trail riding. The tire size for this model of rim is recommended at 1.6" ~ 2.1". The tire pressure is recommended at 29 ~ 48psi.
What's in the Box
Carbon Rim(s)
Documentation
Learn more
What is the difference between weaves UD, 3K and 12K?
What is Free Coating Manufacturing (FCM) process?
What is the Difference between Ultralight, Premium and Standard Edition?
What is ERD (Effective Rim Diameter)?
How much spoke tension should I use?
Basic
- Code: NXT27RM30
- Rim Type: Mountain Bike (Clincher, Hookless)
- Materials: Toray T700 Carbon Fiber
- Edition: Standard Edition
- ASTM Classification: Condition 4
- Warranty: 2 Years
Specification
- Size: 27.5" / 650B
- BSD (Bead Seated Diameter): 584mm
- ERD (Effective Rim Diameter): 543mm
- Drillings: 28, 32
- External Width: 30mm
- Internal Width: 23.4mm
- Rim Height: 30mm
- Weight: 375g (AM)
- Valve Hole Diameter: 6.5mm (Presta)
- Spoke Holes Diameter: 4.5mm
- Spoke Holes Angle: ± 6°
- Assembly Hole Diameter: 7.5mm
- Drain Holes: No (leave a note if you prefer Drain Holes)
- Tubeless Compatible: Yes
Recommendation
- Tire Size: 1.6" ~ 2.1"
- Tire Pressure: 29 ~ 48psi
- Spoke Tension: 100 ~ 130kgf
- Max System Weight: 132Kg (AM) / 175Kg (Gravel)
Appearance
- Carbon Weave Availability: UD / 3K / 12K
- Finish: Free Coating / Matte / Glossy
Application
- application: Cross Country, Marathon, Endurance Cross Country, Gravel, Trail, All Mountain
